(F-13) - JACK ATTACHMENT (FOR TRAILING TYPE)

Запчасти Case IH 310 (F-13) - JACK ATTACHMENT (FOR TRAILING TYPE)

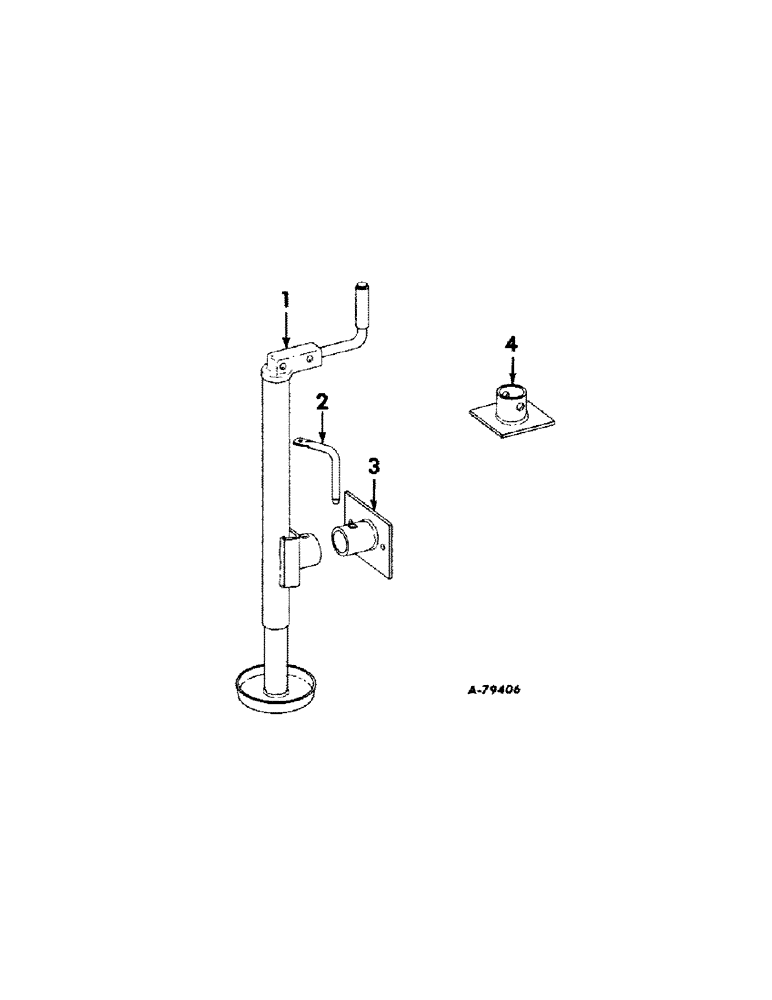

Схема запчастей Case IH 310 - (F-13) - JACK ATTACHMENT (FOR TRAILING TYPE)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

472051R91

JACK ASSEMBLY

1шт.

2

472054R1

PIN, retainer

1шт.

3

472053R1

BRACKET, special mounting (for stowage)

1шт.

NUT, 1/2" cd or zn-pltd

1шт.

SCREW, 1/2 x 1" cd or an-pltd cap

1шт.

WASHER, 1/2" cd or zn-pltd lock

1шт.

4

472052R1

BRACKET, standard mounting (for lifting)

1шт.

NUT, 1/2" cd or zn-pltd

2шт.

SCREW, 1/2 x 1-1/4" cd or zn-pltd cap

2шт.

WASHER, 1/2" cd or zn-pltd lock

2шт.
