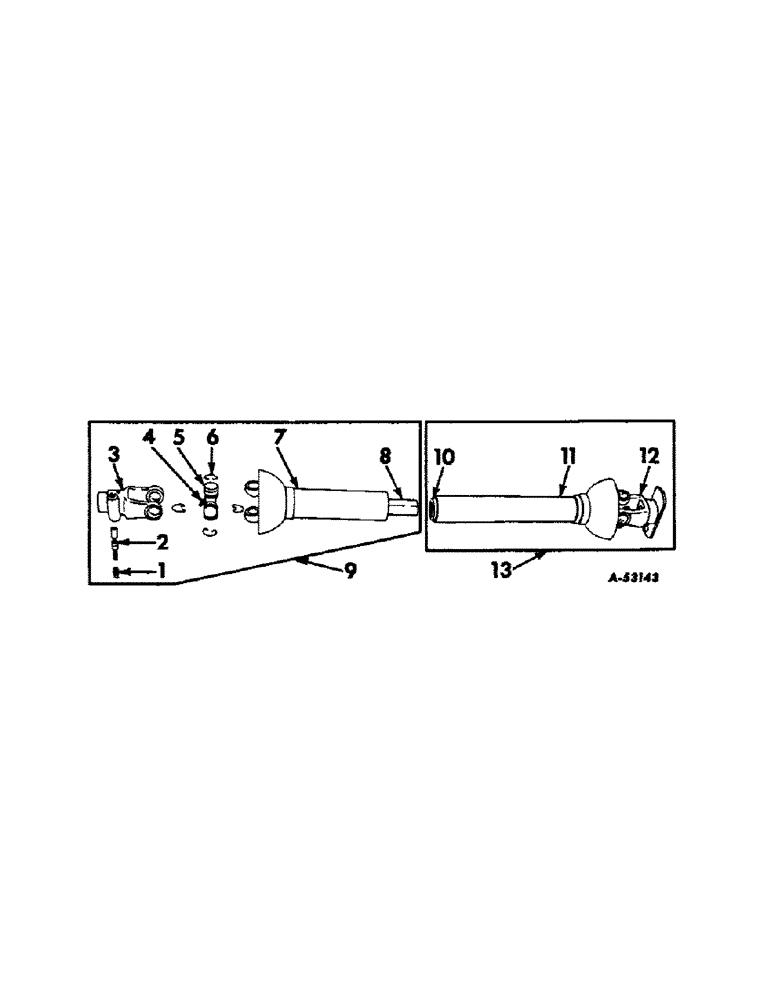

Запчасти Case IH 2CK-FTC26 (B-27) - DRIVE SHAFT (COMPLETING PACKAGE)

1

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

2

455346R1

PIN

lock

1шт.

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

3

568099R1

YOKE

spline (order 568100R91)

1шт.

3

568100R91

SPARE PART

YOKE, spline, w/locking pin assembly

1шт.

4

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubrication

2шт.

5

569144R91

CUP, needle assembly

8шт.

5

569046R1

CROSS

center (order 569047R91)

2шт.

5

569047R91

REPAIR KIT

CROSS, assembly, w/snap rings, center cross and cup assembly (repair kit)

2шт.

6

576420R1

RING

SNAP RING

8шт.

7

467330R1

SHIELD, outer (61 )

1шт.

7

664323R91

SHIELD, outer (welded assembly) (57-61)

1шт.

8

467329R1

YOKE AND SHAFT (61- )

1шт.

8

664322R91

YOKE AND SHAFT (welded assembly) (57-61)

1шт.

9

467328R91

SHAFT, front drive, assembly (61, )

1шт.

9

662467R91

SHAFT, front drive, assembly (57-61)

1шт.

10

664315R91

YOKE, tube and sleeve, assembly

1шт.

Drive shaft completing package, 664261R92 (this shaft is required when 664250R91 - three point hitch is ordered. Used with tractors equipped with a 1-3/8" dia. A.S.A.E. standardized P.T.O. shaft.

1шт.

10

664316R91

YOKE, tube and sleeve, assembly

1шт.

Drive shaft completing package 644599R91 (this shaft required when 664250R91 - three point hitch is ordered and is to be used on a International 340 tractor.)

1шт.

11

664320R91

SHIELD, inner (welded assembly)

1шт.

Drive shaft completing package, 664261R92 (this shaft is required when 664250R91 - three point hitch is ordered. Used with tractors equipped with a 1-3/8" dia. A.S.A.E. standardized P.T.O. shaft.

1шт.

11

664321R91

SHIELD, inner (welded assembly)

1шт.

Drive shaft completing package 644599R91 (this shaft required when 664250R91 - three point hitch is ordered and is to be used on a International 340 tractor.)

1шт.

12

662577R91

YOKE, flange, w/plate assembly

1шт.

13

664262R91

SHAFT, rear drive, assembly

1шт.

Drive shaft completing package, 664261R92 (this shaft is required when 664250R91 - three point hitch is ordered. Used with tractors equipped with a 1-3/8" dia. A.S.A.E. standardized P.T.O. shaft.

1шт.

13

664600R91

SHAFT, rear drive, assembly

1шт.

Drive shaft completing package 644599R91 (this shaft required when 664250R91 - three point hitch is ordered and is to be used on a International 340 tractor.)

1шт.

662598R91

BEARING

shield ball (57-59)

2шт.

662598R91

BEARING

shield ball (57-59)

2шт.

461346R1

BEARING

nylon (59- )

2шт.

662589R1

THRUST WASHER

shield bearing thrust

2шт.
