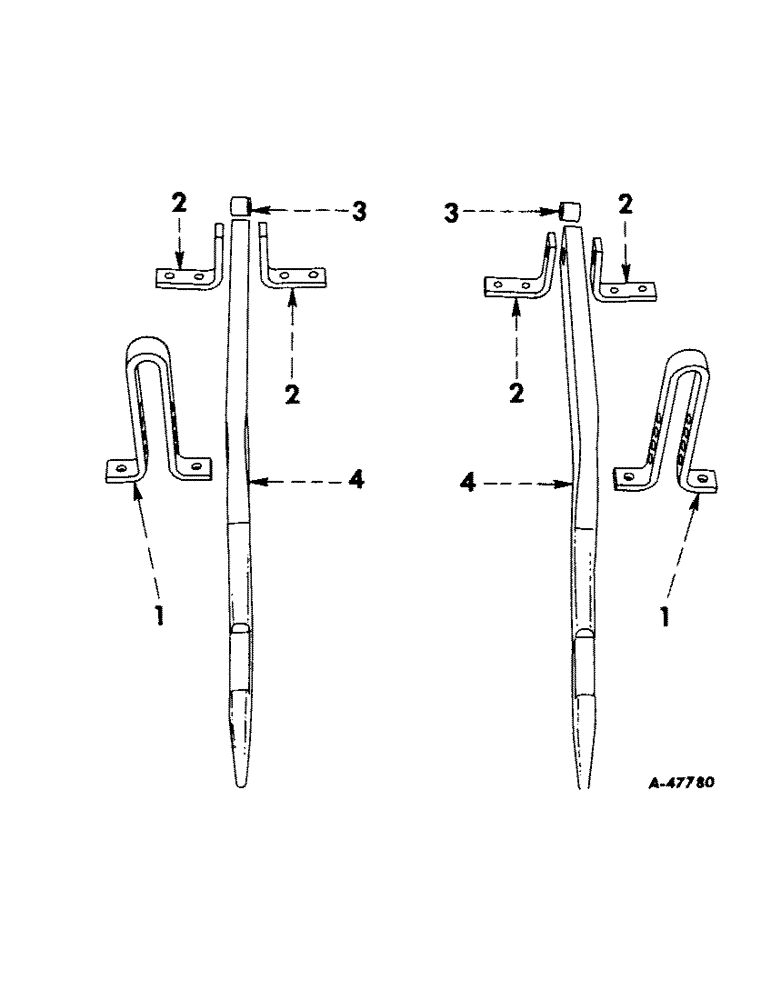

Запчасти Case IH 2CK-FTC26 (B-13) - COUPLING BEAMS, (FOR 2CK-FTC26 AND 34U-FTC26 ROTARY CUTTERS) (USED 1957 TO 1961)

1

661916R11

BRACKET, adjusting, coupling beam (welded assembly)

2шт.

17523R1

BOLT, machine, hex-hd., 1/2-13 NC x 2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

517843R1

COTTER PIN

PIN, quick-attachable, 3/16"

2шт.

P14608

AXLE PIN

PIN, straight, 3/4 x 2-3/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

661950R1

STRAP, coupling beam

4шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

machine, hex-hd., 1/2-13 NC x 1-3/4"

8шт.

102637

NUT,1/2"-13, G5

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

664589R1

SPACER, coupling beam (59- )

2шт.

3

660376R1

SPACER, coupling beam (57-59)

2шт.

17652R1

BOLT, machine, hex-hd., 3/4-10 NC x 3-1/4"

2шт.

220081

NUT

hex., 3/4-10 NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

661912R91

BEAM, attaching (welded assembly) (for 34U-FTC26)

2шт.

4

661914R91

BEAM, attaching (welded assembly) (for 2CK-FTC26)

2шт.
