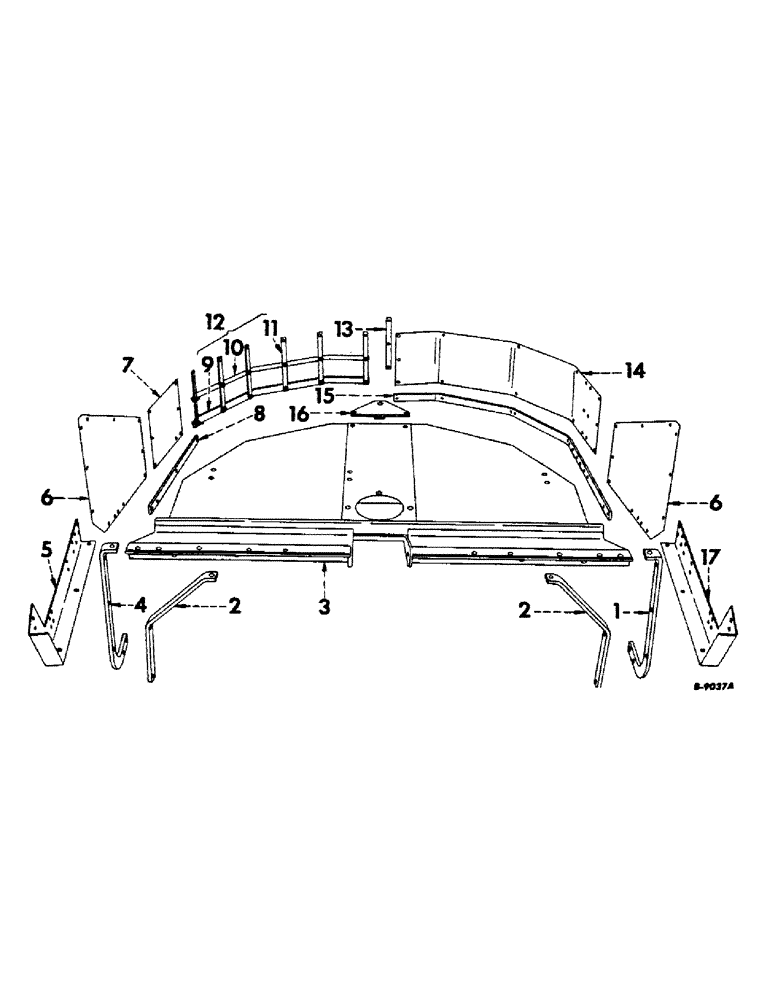

Запчасти Case IH 2C-F25 (A-04) - MAIN FRAME

1

660385R1

RAIL, side, left front

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

17497R1

BOLT, machine, hex-hd., 7/16-14 NC x 1-3/4"

1шт.

17522R1

BOLT, machine, hex-hd., 7/16-14 NC x 2"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

5шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.

2

660380R1

BRACE, corner

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

3

660327R93

FRAME, main (welded assembly)

1шт.

4

660386R1

RAIL, side, right front

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

17497R1

BOLT, machine, hex-hd., 7/16-14 NC x 1-3/4"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

660406R1

SHOE, skid, case, left

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

6

660407R1

SHEET, side front

2шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

4шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

7

660399R1

SHEET, side, right rear

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

machine, hex-hd., 7/16-14 NC x 3/4"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

8

660381R1

RAIL, lower, right

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

660388R1

RAIL, grille, lower (special)

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

4шт.

17522R1

BOLT, machine, hex-hd., 7/16-14 NC x 2"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

10

660387R1

GRILLE, center (special)

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

2шт.

17427R1

BOLT, machine, hex-hd., 7/16-14 NC x 1"

4шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

6шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

11

660379R1

STRAP, grille (special)

4шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

8шт.

17522R1

BOLT, machine, hex-hd., 7/16-14 NC x 2"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

12

660313R91

GRILLE, rear, attachment (special)

1шт.

13

660379R1

STRAP, side

5шт.

17427R1

BOLT, machine, hex-hd., 7/16-14 NC x 1"

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

14

660408R1

COVER, side, left rear

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

machine, hex-hd., 7/16-14 NC x 3/4"

1шт.

17447R1

BOLT

machine, hex-hd., 7/16-14 NC x 1-1/4"

6шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

7шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

7шт.

15

660382R1

RAIL, lower, left

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

16

660314R91

BRACKET, attaching, harrow hitch attachment (special) (for no. 25)

1шт.

16

660429R91

BRACKET, attaching, harrow hitch (welded assembly) (special) (for no. 25)

1шт.

17497R1

BOLT, machine, hex-hd., 7/16-14 NC x 1-3/4"

1шт.

17525R1

BOLT

machine, hex-hd., 5/8-11 NC x 2"

2шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

1шт.

102639

NUT,5/8"-11, G5

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

17

660405R1

SHOE, skid, case, left

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

271500

SOCKET

hex., 7/16-14 NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.
