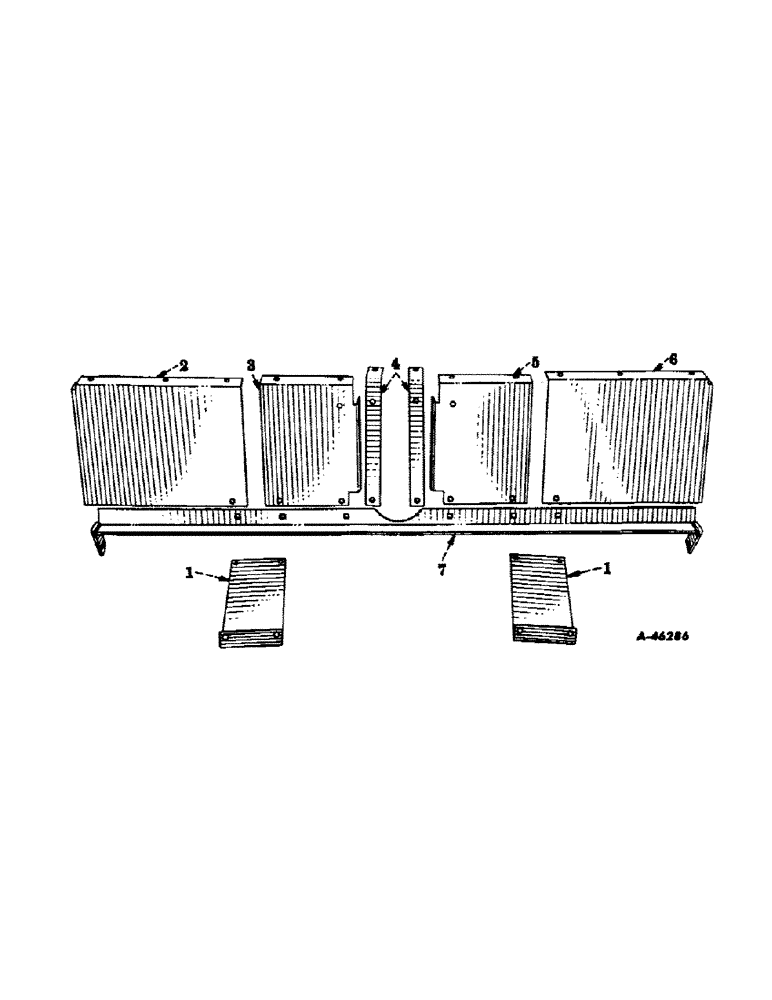

Запчасти Case IH 2C-F25 (A-27) - FRONT OPENING SHIELD ATTACHMENTS, (USED 1956 AND SINCE)

661745R92

FRONT OPENING SHIELD ATTACHMENT consists of all the parts listed below -

1шт.

1

661754R1

PLATE - cover

2шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

4шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd

4шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

2

661753R2

SHIELD, front, outer right

1шт.

17549R1

BOLT, machine, hex-hd., 7/16-14 NC x 2-1/4"

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14 NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

661751R2

SHIELD, front, inner right

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

17427R1

BOLT, machine, hex-hd., 7/16-14 NC x 1"

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, carriage, 7/16-14 NC x 1-1/4"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

4

661749R1

BRACE, front shield, center

2шт.

5

661750R2

SHIELD, front, inner left

1шт.

17472R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

machine, hex-hd., 7/16-14 NC x 1-1/2"

1шт.

17427R1

BOLT, machine, hex-hd., 7/16-14 NC x 1"

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, carriage, 7/16-14 NC x 1-1/4"

1шт.

425-107

NUT,7/16"-14, G5

hex., 7/16-14 NC

3шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

6

661752R2

SHIELD, front, outer left

1шт.

17549R1

BOLT, machine, hex-hd., 7/16-14 NC x 2-1/4"

1шт.

NLS

NO LONGER SERVICED

hex., 7/16-14 NC

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

7

661746R91

ANGLE, support (welded assembly)

1шт.
