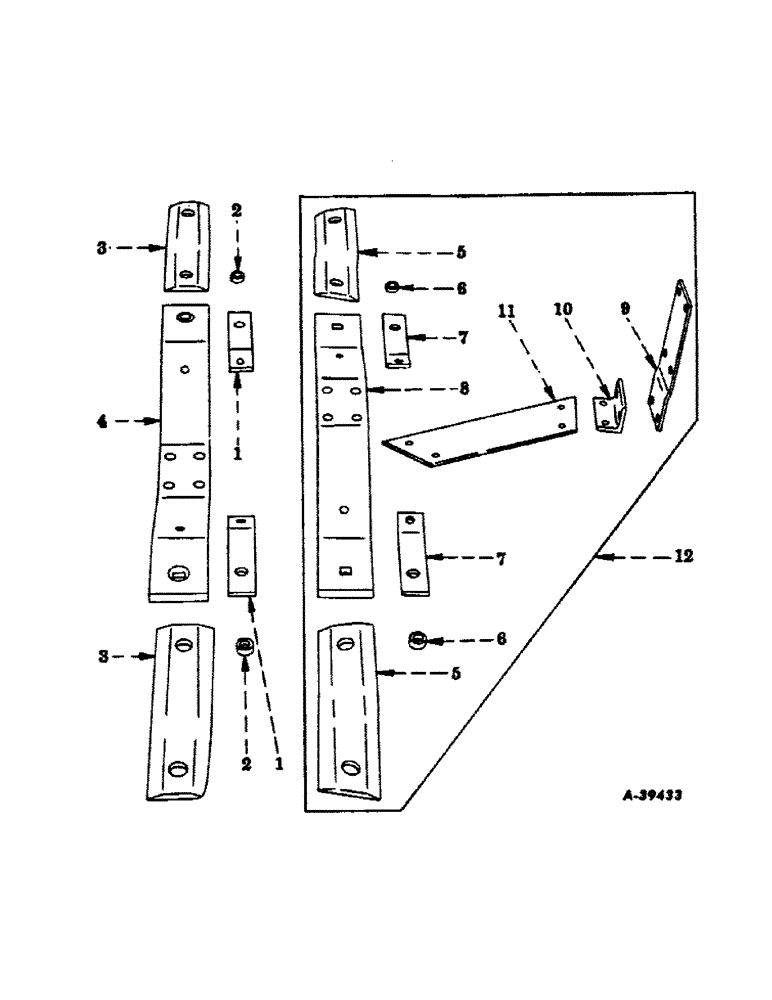

Запчасти Case IH 2C-F25 (A-10) - ROTOR BAR AND SHREDDING ATTACHMENT
№
Артикул
Название
Примечание
Количество
1
660384R1
HAMMER STRAP, rotor
2шт.
15646R1
BOLT,#3, 3/4" - 10 x 2 1/2"
plow, no. 3, 3/4-10 NC x 2-1/2"
2шт.
102637
NUT,1/2"-13, G5
2шт.
220081
NUT
hex., 3/4-10 NC
2шт.
179887
CABLE
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
2
659622R1
SPACER
BUSHING, swinging blade
2шт.
3
660369R11
BLADE
swinging, flat (pair)
1шт.
4
660383R1
BAR, rotor
1шт.
425-1012
NUT,3/4"-10, G5
hex., 3/4-10 NC
4шт.
271612
BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5
SCREW, cap, hex-hd., 3/4-10 NC x 2-1/4"
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
5
660368R11
BLADE
twisted (pair) (special)
1шт.
6
659622R1
SPACER
twisted blade (special)
2шт.
7
660384R1
HAMMER STRAP, rotor (special)
2шт.
15646R1
BOLT,#3, 3/4" - 10 x 2 1/2"
plow, no. 3, 3/4-10 NC x 2-1/2"
2шт.
102637
NUT,1/2"-13, G5
2шт.
220081
NUT
hex., 3/4-10 NC
2шт.
413-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
8
660383R1
BAR, rotor (special)
1шт.
22081
NUT, hex., 3/4-10 NC
4шт.
413-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
SCREW, cap, hex-hd., 3/4-10 NC x 3"
4шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
9
660392R1
SUPPORT, stationary shredding bar (special)
1шт.
17472R1
BOLT,Hex, 7/16"-14 x 1 1/2", G2
machine, hex-hd., 7/16-14 NC x 1-1/2"
2шт.
17497R1
BOLT, machine, hex-hd., 7/16-14 NC x 1-3/4"
2шт.
271500
SOCKET
hex., 7/16-14 NC
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
10
660395R1
BRACKET, stationary shredding bar (special)
1шт.
17447R1
BOLT
machine, hex., 7/16-14 NC x 1-1/4"
2шт.
NLS
NO LONGER SERVICED
hex., 7/16-14 NC
2шт.
11
660391R1
BAR, shredding, stationary (special)
1шт.
12
660312R91
SHREDDING ATTACHMENT (special) (also includes 660313R91 rear grille attachment)
1шт.
Выбрано товаров: 37
