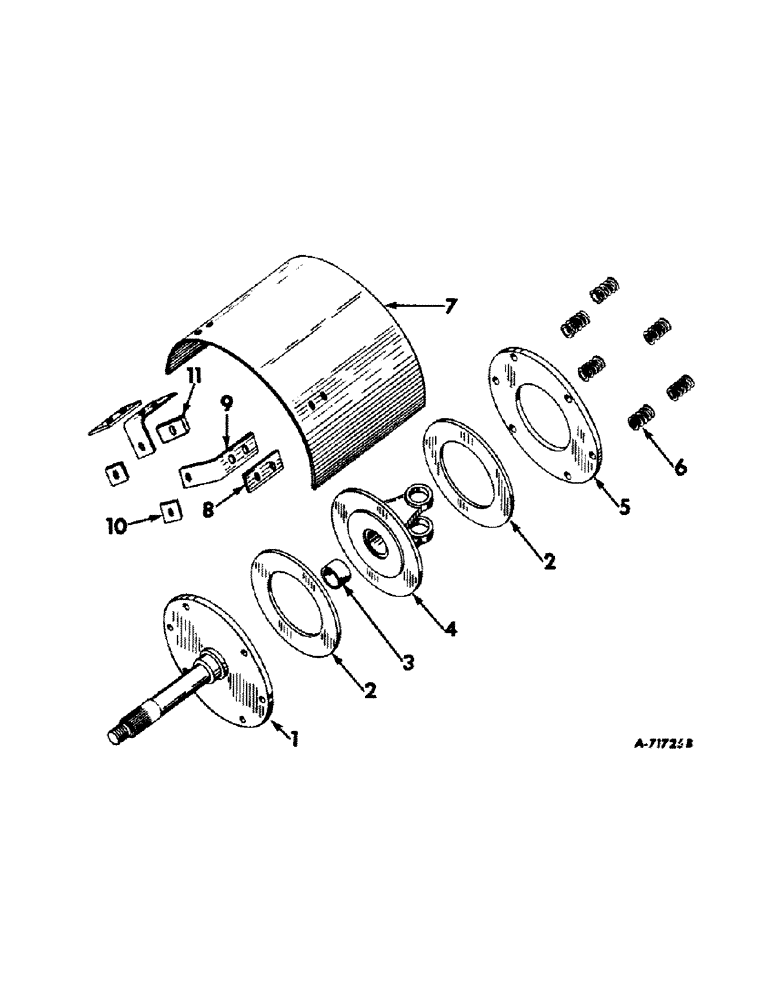

Запчасти Case IH 28 (D-09) - SLIP CLUTCH

1

460321R12

SHAFT

input

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8" lock

6шт.

SCREW, 3/8 x 3-1/4" cap

6шт.

575807R1

WASHER

13/32 x 1 x 11 ga

6шт.

2

474599R1

FACING

clutch

2шт.

3

460538R1

BUSHING

bronze

1шт.

4

460614R21

YOKE

W/BUSHING AND PLATE, flange

1шт.

5

460498R1

RETAINER

PLATE, clutch floating

1шт.

6

M14033

SPRING

compression

6шт.

7

665056R91

SHIELD ASSY, slip clutch (61-62) (order 469382R11, 469383R1, two 13257R1, two 469913R1, four 180122, four 664645R1 and two 471111R1)

1шт.

7

469382R11

SHIELD, w/product graphics slip clutch (63- )

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8" lock

4шт.

SCREW, 3/8" x 1" cd or zn-pltd cap

4шт.

8

469913R1

SPACER, rubber (63- )

2шт.

9

469383R1

BRACKET, slip clutch shield

2шт.

BOLT, 1/2 x 1" sq. hd mach

2шт.

10

471111R1

PAD

SPACER, rubber (63- )

2шт.

11

478359R1

RETAINER, bolt

2шт.
