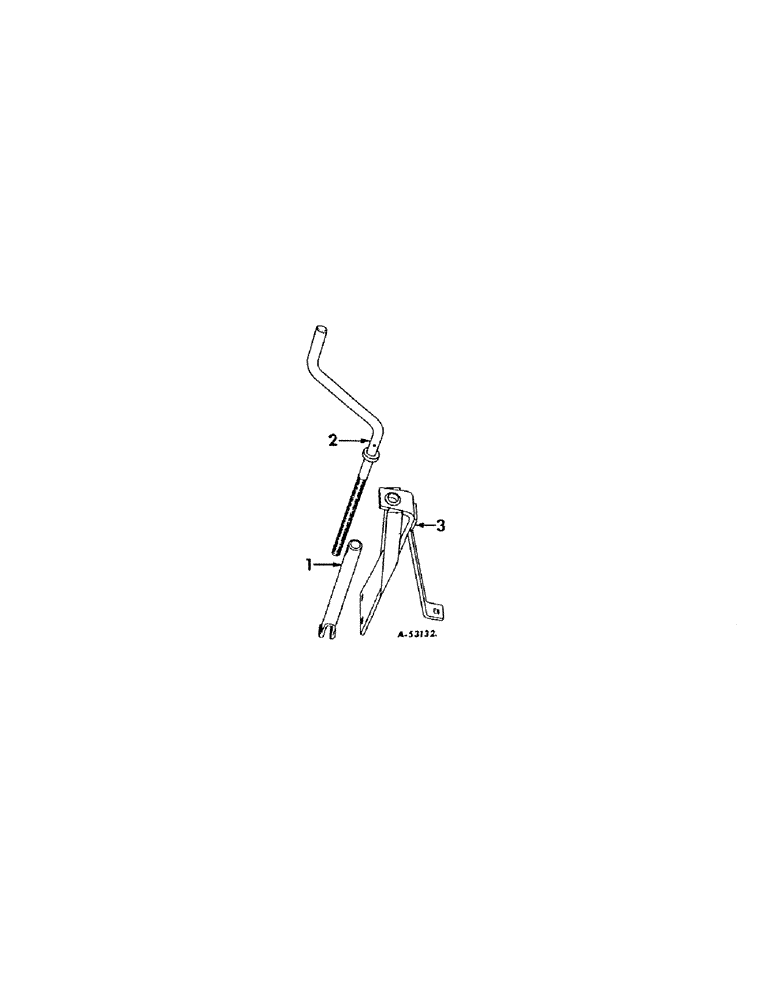

Запчасти Case IH 27 (C-3) - ADJUSTING CRANK

1

PO3064

SLEEVE, adjusting

1шт.

PIN, 1/4 x 1-1/2" cotter

2шт.

PIN, 3/4 x 2" headed pin

1шт.

2

663974R1

CRANK, height adjusting

1шт.

PIN, 3/16 x 7/8 x roll pin

2шт.

WASHER, 29/32 x 1-1/2" x 11 ga.

6шт.

3

663967R91

SUPPORT, crank (welded assembly)

1шт.

BOLT, 1/2 x 1-1/2" crg.

2шт.

BOLT, 5/8 x 1-1/2" crg.

4шт.

NUT, 1/2"

2шт.

NUT, 5/8"

4шт.

WASHER, 1/2" lock

2шт.

WASHER, 5/8" lock

4шт.

WASHER, 29/32 x 1-1/2" x 11 ga.

6шт.
