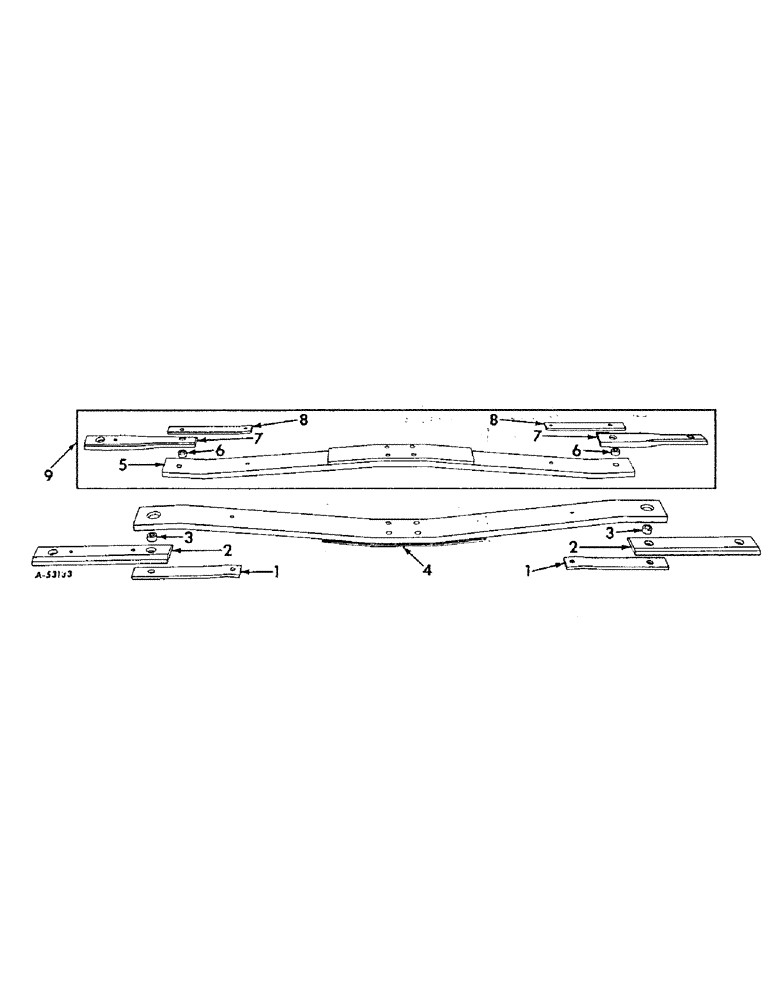

Запчасти Case IH 27 (C-3[A]) - ROTOR BAR AND SHREDDING ATTACHMENT

1

663979R1

HAMMERSTRAP, rotor

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2" ESNA stop nut

2шт.

SCREW, 1/2 x 2" hex-hd cap screw

2шт.

WASHER, 1/2" lock washer

2шт.

2

660369R11

BLADE

swinging (pair)

1шт.

BOLT, 3/4 x 2-3/4" no. 3 plow

2шт.

19646R1

LOCK NUT,3/4"-10

3/4 ESNA stop nut

2шт.

3

659622R1

SPACER

BUSHING, swinging blade

1шт.

4

663971R91

ROTOR (welded assembly)

1шт.

19646R1

LOCK NUT,3/4"-10

NUT, 3/4" ESNA stop

4шт.

SCREW, 3/4 x 3" hex-hd cap

4шт.

5

663971R91

ROTOR, (welded assembly) (special)

1шт.

NUT, 3/4"

4шт.

SCREW, 3/4 x 4-1/4" hex-hd. cap

4шт.

WASHER, 3/4" lock

4шт.

6

659622R1

SPACER

BUSHING, swinging blade (special)

2шт.

7

660368R11

BLADE

twisted (pair) (special)

1шт.

NUT, 3/4"

2шт.

CAP 3/4 x 2-3/4" hex-hd.

2шт.

WASHER, 3/4" lock

2шт.

8

663979R1

HAMMERSTRAP, rotor

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2" ESNA stop nut

2шт.

SCREW, 1/2 x 2" hex-hd cap

2шт.

9

663987R91

SHREDDING ATTACHMENT (special)

1шт.
