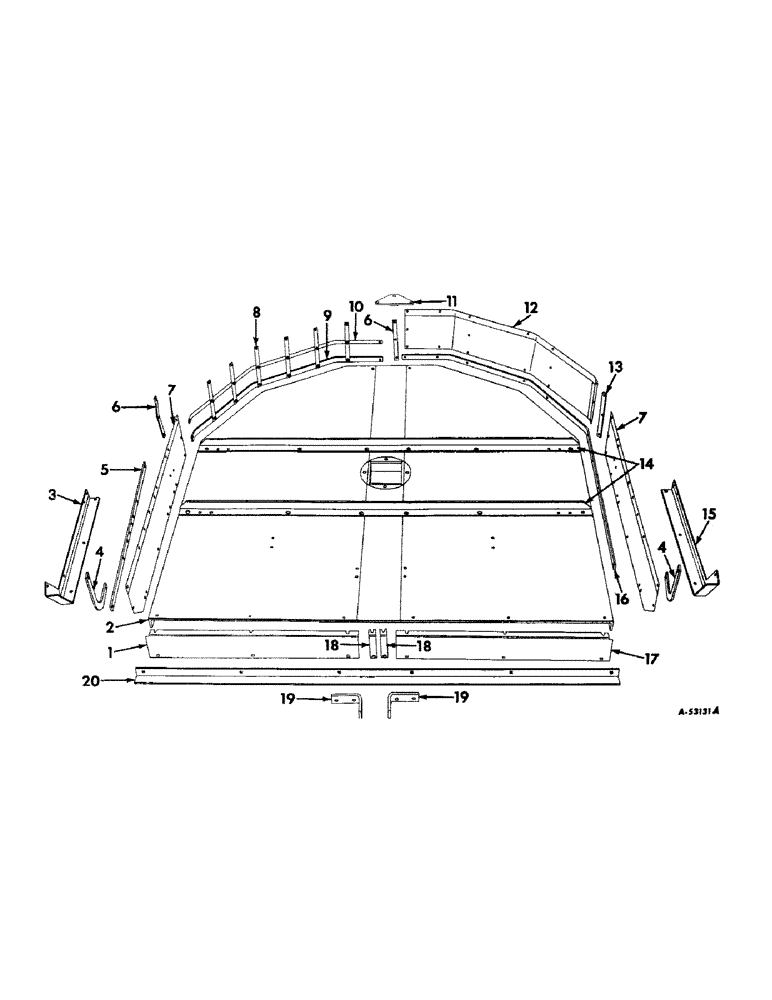

Запчасти Case IH 27 (C-2) - MAIN FRAME

1

663985R1

SHIELD, right front opening

1шт.

BOLT, 3/8 x 1" crg

4шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

2

663950R91

FRAME, main (welded assembly)

1шт.

3

661956R1

SHOE, right skid

1шт.

BOLT, 3/8 x 1" crg.

4шт.

BOLT, 3/8 x 1-1/2" crg.

1шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

4

661941R1

RAIL, lower front

1шт.

5

663977R1

RAIL, lower right side

1шт.

6

661945R1

STRAP, end grille

2шт.

BOLT, 3/8 x 1" crg.

2шт.

BOLT, 3/8 x 1-1/4" crg.

2шт.

BOLT, 3/8 x 1-3/4" crg.

2шт.

NUT, 3/8"

1шт.

WASHER, 3/8" lock

1шт.

7

663983R1

SHEET, front side

1шт.

BOLT, 3/8 x 3/4" crg.

1шт.

BOLT, 3/8 x 1" crg.

8шт.

NUT, 3/8"

9шт.

WASHER, 3/8" lock

9шт.

8

660379R1

STRAP, grille

6шт.

BOLT, 3/8 x 1" crg.

18шт.

NUT, 3/8"

18шт.

WASHER, 3/8" lock

18шт.

9

663978R1

RAIL, lower grille

1шт.

10

663975R1

RAIL, center grille

1шт.

11

660429R91

BRACKET, harrow attaching (welded assembly) (special)

1шт.

BOLT, 7/16 x 1-3/4" hex-hd. mach.

1шт.

BOLT, 5/8 x 2" hex-hd. mach.

2шт.

NUT, 7/16"

1шт.

NUT, 5/8"

2шт.

WASHER, 7/16" lock

1шт.

WASHER, 5/8" lock

2шт.

12

663986R1

COVER, rear side

1шт.

BOLT, 3/8 x 1" crg.

4шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

13

661947R1

STRAP, side support

2шт.

BOLT, 3/8 x 3/4" crg.

2шт.

BOLT, 3/8 x 1-3/4" crg.

4шт.

NUT, 3/8"

6шт.

WASHER, 3/8" lock

6шт.

14

663982R1

ANGLE, main frame reinforcing

2шт.

BOLT, 1/2 x 1-1/2" crg.

12шт.

NUT, 1/2"

12шт.

WASHER, 1/2" lock

12шт.

15

661955R1

SHOE, left skid

1шт.

BOLT, 3/8 x 1" crg.

4шт.

BOLT, 3/8 x 1-1/2" crg.

1шт.

NUT, 3/8"

5шт.

WASHER, 3/8" lock

5шт.

16

663976R1

RAIL, lower left side

1шт.

17

663984R1

SHIELD, left front opening

1шт.

BOLT, 3/8 x 1" crg

4шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

18

663980R1

STRAP, shield support

2шт.

BOLT, 3/8 x 1" crg.

2шт.

BOLT, 3/8 x 1-1/4" crg.

2шт.

NUT, 3/8"

4шт.

WASHER, 3/8" lock

4шт.

19

663966R1

BRACKET, tongue

1шт.

BOLT, 5/8 x 1-3/4" hex-hd. mach.

4шт.

NUT, 5/8"

1шт.

WASHER, 5/8" lock

4шт.

20

663948R91

ANGLE, shield support (welded assembly)

1шт.
