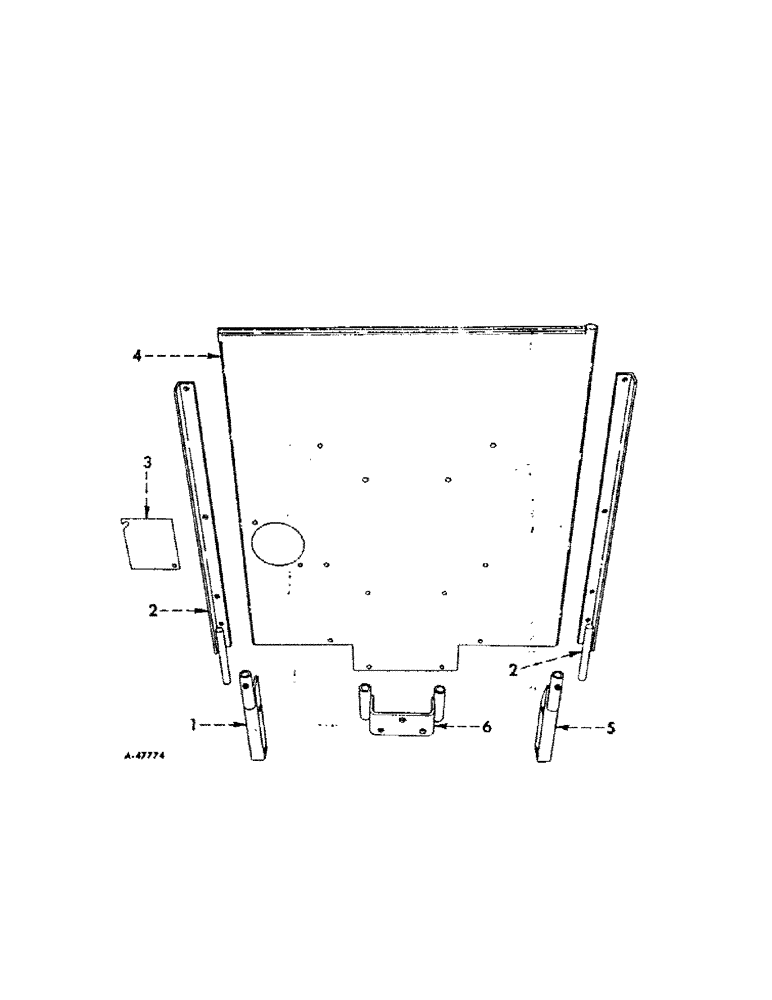

Запчасти Case IH 27 (C-9) - DRIVERS SHIELDS, (SPECIAL) (FOR INTERNATIONAL 300 AND 350 UTILITY TRACTORS)

661880R91

DRIVERS SHIELD ATTACHMENT (special) (for use with International 300 utility tractor)

1шт.

661881R91

DRIVERS SHIELD ATTACHMENT (special) (for use with International 350 utility tractor)

1шт.

1

660566R91

ANGLE, left shield attaching (welded assembly) (for International 300 utility tractor)

1шт.

BOLT, 3/4 x 1" hex-hd. mach.

2шт.

NUT, 3/8" jam

1шт.

SCREW, 3/8 x 1" sq-hd. set

1шт.

2

660563R91

ANGLE, shield support (welded assembly)

2шт.

BOLT, 3/8 x 3/4" hex-hd. mach.

6шт.

NUT, 3/8"

6шт.

WASHER, 3/8" lock

6шт.

3

661884R1

COVER, light

1шт.

BOLT, 5/16 x 3/4" hex-hd. mach.

2шт.

NUT, 5/16" wing

2шт.

4

661885R1

SHIELD, drivers

1шт.

5

660567R91

ANGLE, right shield attaching (welded assembly) (for International 300 utility tractor)

1шт.

BOLT, 3/4 x 1" hex-hd. mach.

2шт.

NUT, 3/8" jam

1шт.

SCREW, 3/8 x 1" sq-hd. set

1шт.

6

661882R91

BRACKET, shield attaching (welded assembly) (for International 350 utility tractor)

1шт.

BOLT, 5/8 x 1-1/4" hex-hd. mach.

3шт.

NUT, 3/8" jam

1шт.

SCREW, 3/8 x 1" sq-hd. set

2шт.

663988R91

REAR GRILLE ATTACHMENT (special)

1шт.
