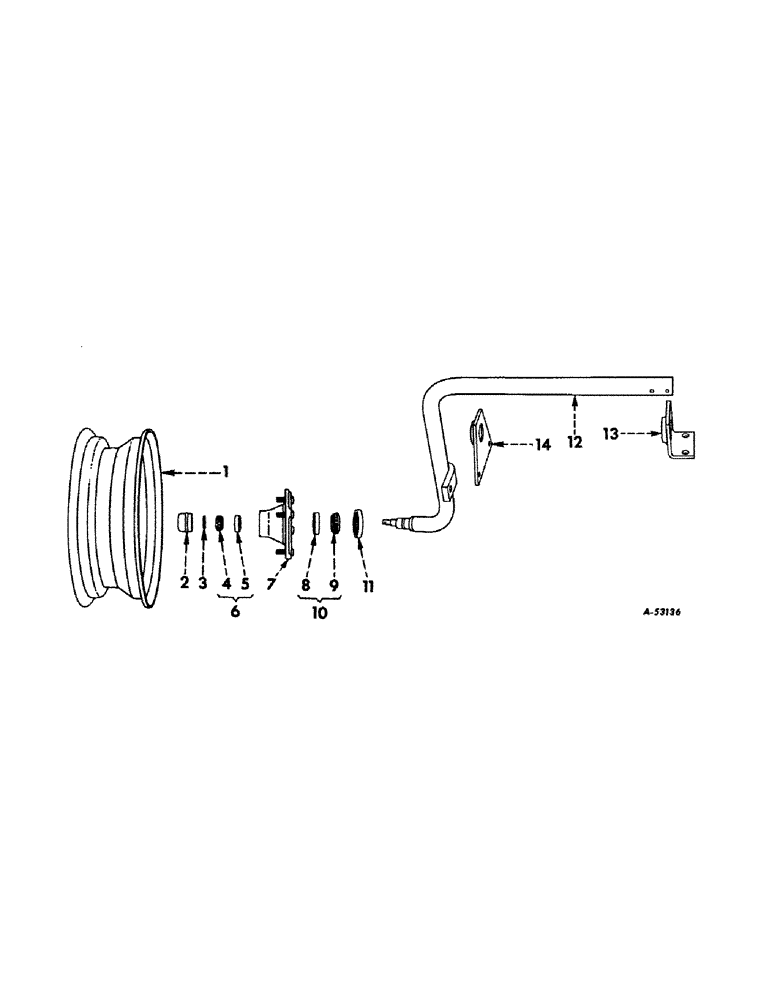

Запчасти Case IH 27 (C-7) - GAUGE WHEELS

1

662994R91

WHEEL

RIM, 15" gauge wheel

1шт.

2

651194R1

CAP

wheel

1шт.

3

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

axle

1шт.

4

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, outer wheel bearing

2шт.

4

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

6

651814R1

BEARING CUP

CUP, outer wheel bearing

2шт.

6

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING ASSEMBLY, outer wheel (order 651814R1 and 651815R91)

2шт.

7

662536R11

GAUGE ASSY.

HUB W/BOLTS AND RACES, gauge wheel

1шт.

.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

HUB BOLT

8шт.

.

453770R1

WHEEL NUT

HUB BOLT NUT

8шт.

8

651817R1

BEARING CUP

CUP, inner wheel bearing

2шт.

8

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, inner wheel bearing

2шт.

10

651819R91

BEARING ASSY,1.2508" ID x 2.329" OD x 0.625"

ASSEMBLY, inner wheel (order 651817R1 and 654818R91)

2шт.

11

652769R1

SEAL

grease

2шт.

12

663944R91

AXLE, left gauge wheel (welded assembly)

1шт.

12

663745R91

AXLE, right gauge wheel (welded assembly)

1шт.

.

NUT, 5/8 NF

2шт.

.

PIN, 5/32 x 1" cotter

2шт.

.

PIN, 5/16 x 2-1/4" cotter

4шт.

.

WASHER, 21/32 x 1-5/16 x .095"

2шт.

.

WASHER, 1-25/32 x 2-1/2" x 11 ga.

4шт.

13

661902R1

BEARING, inside axle

2шт.

.

1/2 x 1-1/4" crg.

4шт.

.

NUT, 1/2"

4шт.

.

WASHER, 1/2" lock

4шт.

14

663981R1

BEARING, outside axle

2шт.

.

BOLT, 1/2 x 1-1/2" crg.

4шт.

.

NUT, 1/2"

4шт.

.

WASHER, 1/2" lock

4шт.

.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (in wheel hubs) 1/4"-28 NPT x .54" lg

1шт.
