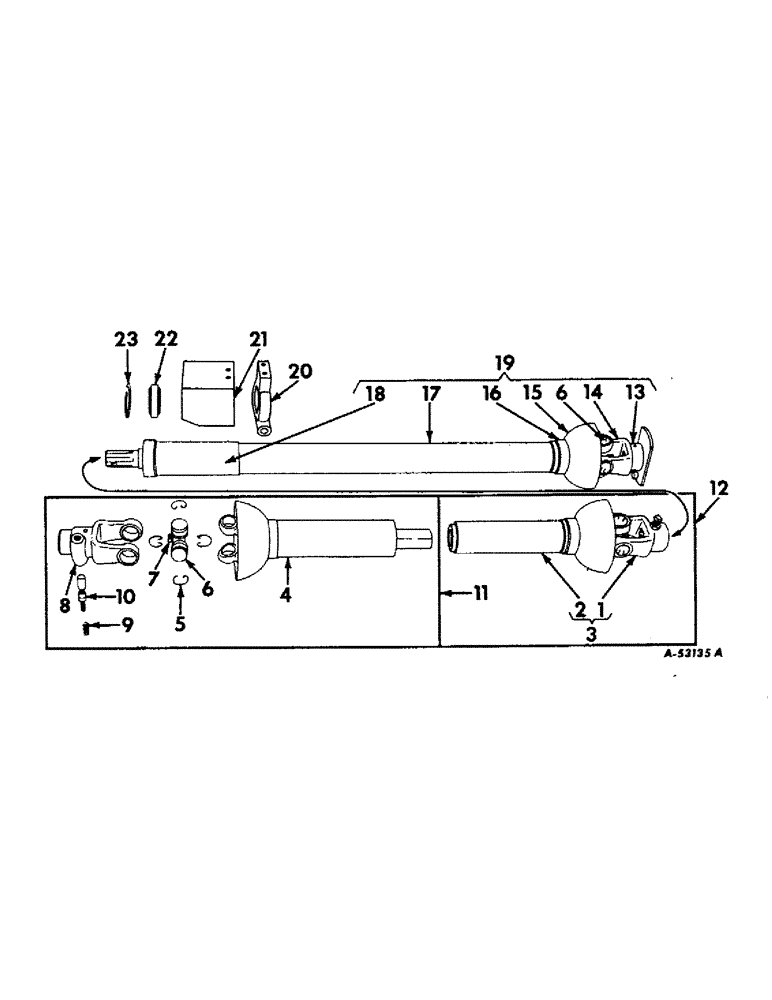

Запчасти Case IH 27 (C-6) - UNIVERSAL ASSEMBLIES

1

660489R1

YOKE

front drive shaft rear 1/2 NF jam nut

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

1шт.

2

660488R91

YOKE, tube and shield assembly, rear

1шт.

3

660487R91

HALF W/CENTER CROSS, rear universal

1шт.

4

660485R91

YOKE, tube and shield assembly, front

1шт.

5

495962R1

RING

SNAP RING

12шт.

6

661671R91

JOINT

CUP ASSEMBLY, needle

12шт.

7

660116R91

NUT

CROSS, snap rings, lubrication fitting, and needle, cup assembly center

3шт.

7

271284

YOKE

1/8"-65 degree elbow lubrication

3шт.

8

660484R11

YOKE

W/LOCKING PIN ASSEMBLY, spline

1шт.

9

455347R1

VALVE SPRING

SPRING, locking pin

1шт.

10

455346R21

PIN

ASSEMBLY, locking

1шт.

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

LOCKING PIN X-WASHER

1шт.

11

660481R91

HALF ASSEMBLY, universal front

1шт.

12

660420R91

SHAFT ASSEMBLY, universal front

1шт.

13

102467H

FITTING

1/4" straight lubrication

1шт.

14

660483R91

YOKE, flange (welded assembly)

1шт.

15

664154R91

BELL AND SHIELD ASSEMBLY

1шт.

16

662589R1

THRUST WASHER

thrust (under shield)

2шт.

16

662598R91

BEARING

ASSEMBLY (under shield) (58-59)

2шт.

16

461346R1

BEARING

ASSEMBLY, nylon (59- )

2шт.

17

664156R91

YOKE, tube and bearing stub assembly (w/o shields)

1шт.

18

664155R91

SHIELD AND RETAINER ASSEMBLY

1шт.

19

663991R91

SHAFT ASSEMBLY, rear drive

1шт.

20

662022R1

BOX

drive shaft bearing

1шт.

21

662249R1

COVER, universal joint

1шт.

BOLT, 5/16 x 1/2" hex-hd. mach.

2шт.

WASHER, 5/16" lock

2шт.

22

558128R91

BEARING

drive shaft box (57-59)

1шт.

22

584148R91

BEARING ASSY,35mm ID x 72mm OD x 25mm W

BEARING, drive shaft box (59- )

1шт.

23

UA20551

RING

bearing retainer

1шт.
