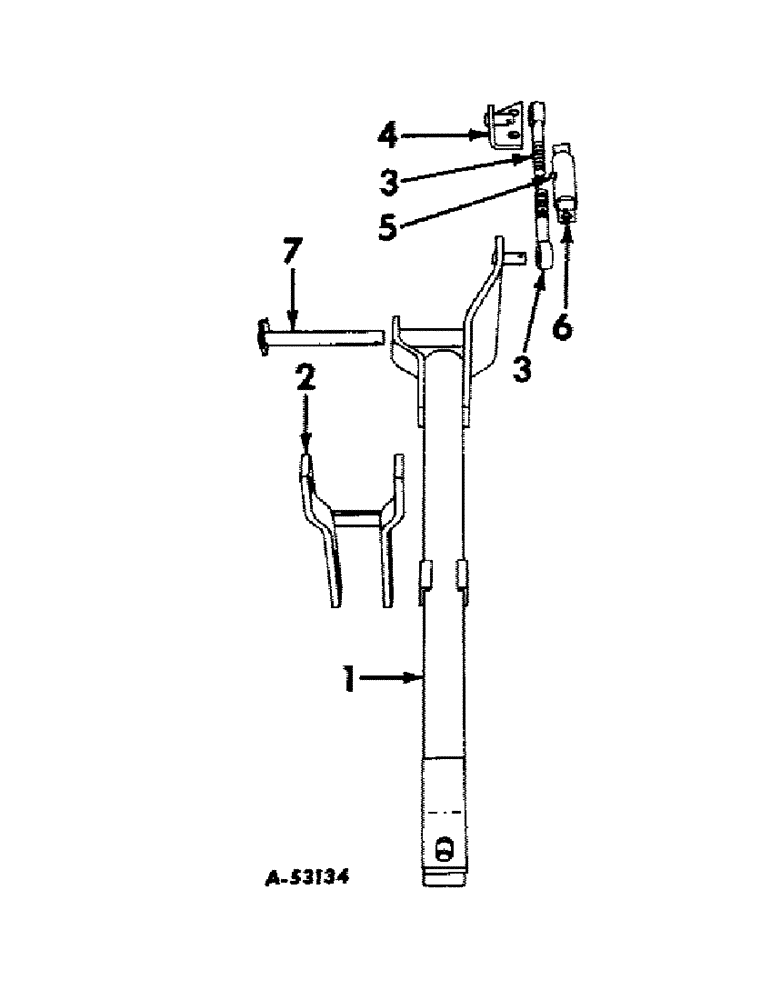

Запчасти Case IH 27 (C-5) - HITCH

1

663939R91

HITCH (welded assembly)

1шт.

PIN, 3/16 x 1-1/2" cotter

1шт.

PO12898

WASHER

29/32 x 1-1/2" x 11 ga

1шт.

2

661909R91

ARM, rocker (welded assembly)

1шт.

BOLT, 1/2 x 4-1/4" hex-hd. mach.

1шт.

BOLT, 1/2 x 5-1/4" hex-hd. mach.

1шт.

NUT, 1/2"

2шт.

WASHER, 1/2" lock

2шт.

3

661938R1

EYEBOLT (LH-thd.)

1шт.

NUT, 3/4"

1шт.

3

661939R1

EYEBOLT (RH-thd.)

1шт.

4

661897R91

ANCHOR, adjusting link (welded assembly)

1шт.

BOLT, 1/2 x 1-1/2" hex-hd. mach.

2шт.

NUT, 1/2"

2шт.

PIN, 3/16 x 1-1/2" cotter

1шт.

WASHER, 1/2" lock

2шт.

WASHER, 25/32 x 1-1/2" x 16 ga.

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

1745B

TURNBUCKLE, hitch adjusting rod

1шт.

7

663936R91

PIN, hitch (welded assembly)

1шт.

PIN, 1/4 x 1-1/2" cotter

1шт.

615227R1

WASHER

1-1/32 x 1-3/4" x 11 ga

1шт.
