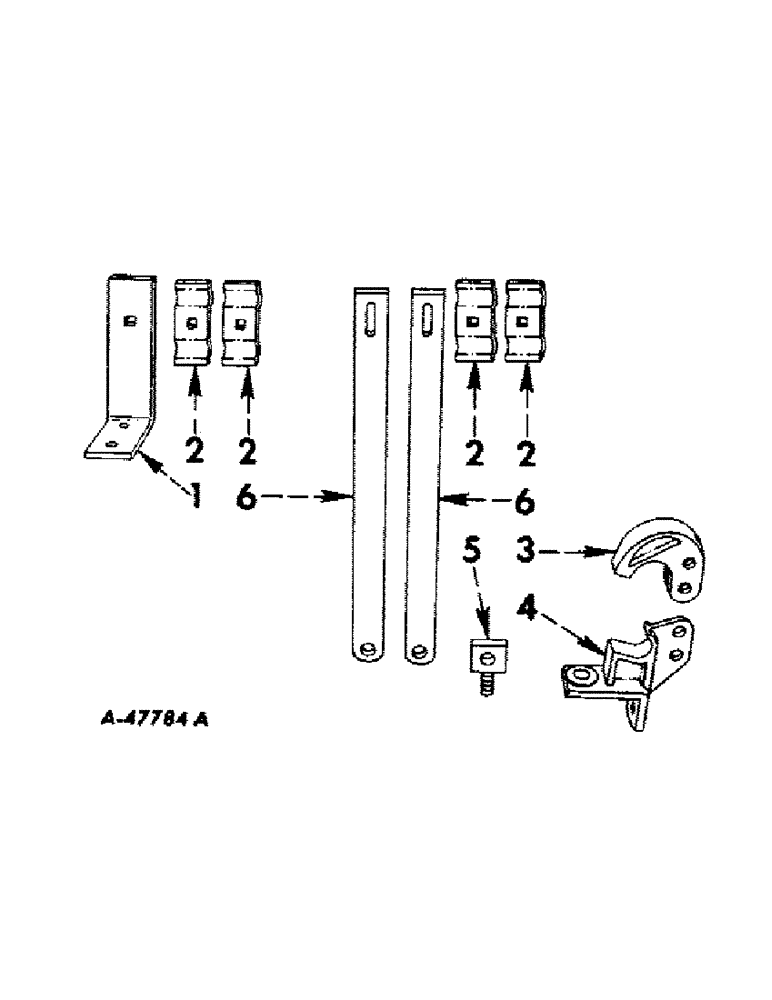

Запчасти Case IH 26 (B-17) - HYDRAULIC CYLINDER LIFT ATTACHMENT, (FOR NO. 26 ROTARY CUTTER)

REMOTE HYDRAULIC CYLINDER LIFT ATTACHMENT 661973R91 (SPECIAL) CONSISTS OF ALL THE PARTS LISTED BELOW -

1шт.

1

664273R1

SUPPORT, hose

1шт.

2

515030R1

CLAMP

hose

4шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, carriage, 5/16-18 NC x 1-1/2"

2шт.

9635082

NUT,5/16" - 18, Gr 5

hex., 5/16-18 NC

1шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18 NC

2шт.

3

526263R1

RETAINER

LATCH, cylinder

1шт.

D3375

PIN

std. 1/2 x 2-1/8"

1шт.

4

661975R1

BRACKET, cylinder anchor

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

machine, hex-hd., 1/2-13 NC x 1-1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

520277R1

PIN

pointed, 5/8 x 2-5/8"

1шт.

517843R1

COTTER PIN

PIN, quick-attachable, 3/16"

1шт.

D3375

PIN

standard, 1/2 x 2-1/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

26489B

EYEBOLT

1шт.

102637

NUT,1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Q5137

AXLE PIN

PIN, standard, 1/2 x 1-3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

661974R1

STRAPS, transport

2шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

PIN, standard, 1/4 x 1-5/8"

1шт.

95-11028

WASHER,1/4"

plain, 9/32" ID x 5/8" OD x no. 16 ga.

2шт.
