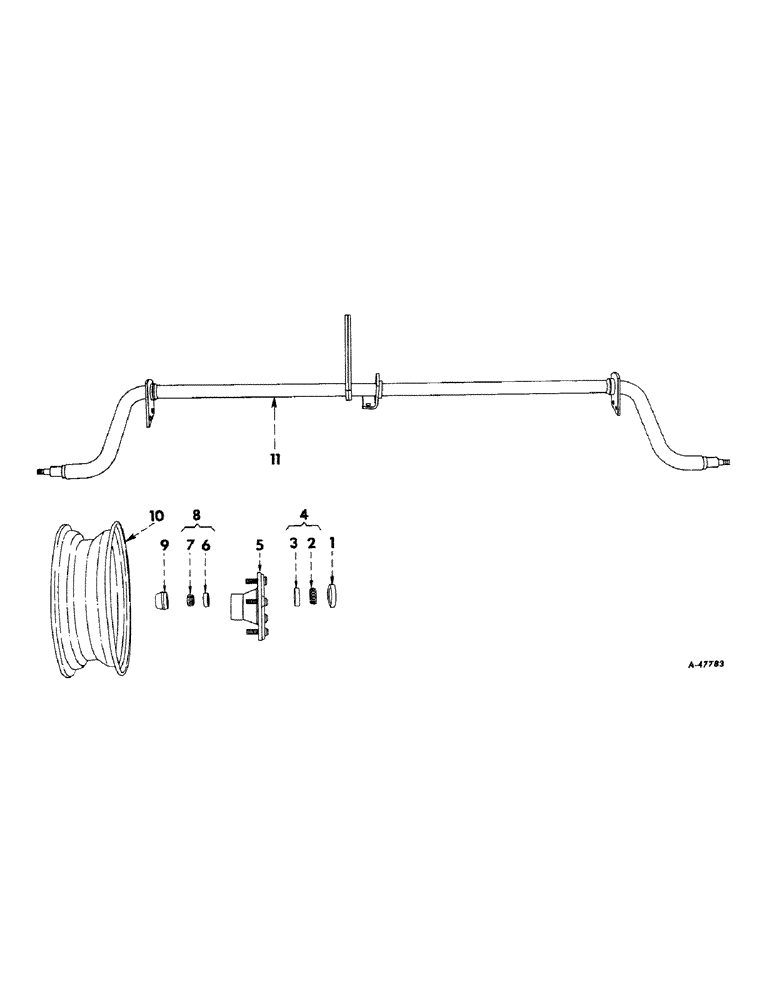

Запчасти Case IH 26 (B-16) - TRAILER AXLE AND WHEELS, (FOR NO. 26 ROTARY CUTTER)

1

652769R91

OIL SEAL

grease

2шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, gauge wheel bearing, inner

2шт.

3

651817R1

BEARING CUP

CUP, gauge wheel bearing, inner

2шт.

3

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

4

651819R91

BEARING ASSY,1.2508" ID x 2.329" OD x 0.625"

gauge wheel, inner, assembly (order 651817R1 and 651818R91)

2шт.

5

662536R11

GAUGE ASSY.

HUB, wheel assembly (consists of (4), bolt 660102R1, (1), hub 651808R3, (1), cup 651814R1, (4), nut 453770R1), (1), cup 651817R1

1шт.

6

651814R1

BEARING CUP

CUP, gauge wheel, outer

2шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, gauge wheel, outer

2шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

8

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING, gauge wheel, outer assembly (order 651814R1 and 651815R91)

2шт.

9

651194R1

CAP

hub

2шт.

10

662994R91

WHEEL

RIM, (for 15" tire)

2шт.

11

661899R91

AXLE, gauge wheel (welded assembly)

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, carriage, 1/2-13 NC x 1-1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

2шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

2шт.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" ID x 1-5/16" OD x .095" thick

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (in hub) 1/4"-28 NPT x .54" lg

1шт.
