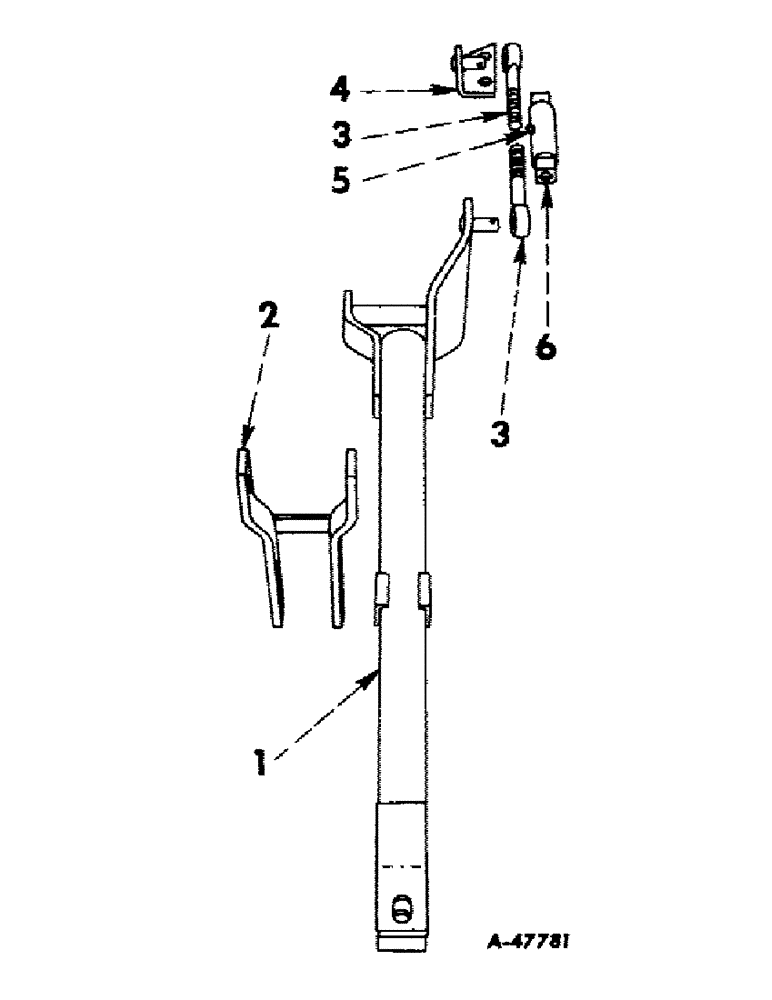

Запчасти Case IH 26 (B-14) - HITCH, (FOR NO. 26 ROTARY CUTTER)

1

661890R91

HITCH, (welded assembly)

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

16066R1

WASHER

plain, 25/32" ID x 1-1/2" OD x no. 16 ga.

1шт.

2

661909R91

ARM, rocker (welded assembly)

1шт.

17748R1

BOLT

machine, hex-hd., 1/2-13 NC x 4-1/2"

1шт.

17829R1

SCREW,Hex, 1/2" - 13 x 5 1/4"

BOLT, machine, hex-hd., 1/2-13 NC x 5-1/4"

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

661938R1

EYEBOLT, (left hand thread)

1шт.

3

661939R1

EYEBOLT, (right hand thread)

1шт.

220081

NUT

hex, 3/4"

1шт.

4

661897R91

ANCHOR, adjusting link (welded assembly)

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

machine, hex-hd., 1/2-13 NC x 1-1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

16066R1

WASHER

plain, 25/32 x ID x 1-1/2" OD x no. 16 ga.

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

6

1745B

TURNBUCKLE, hitch adjustment rod

1шт.
