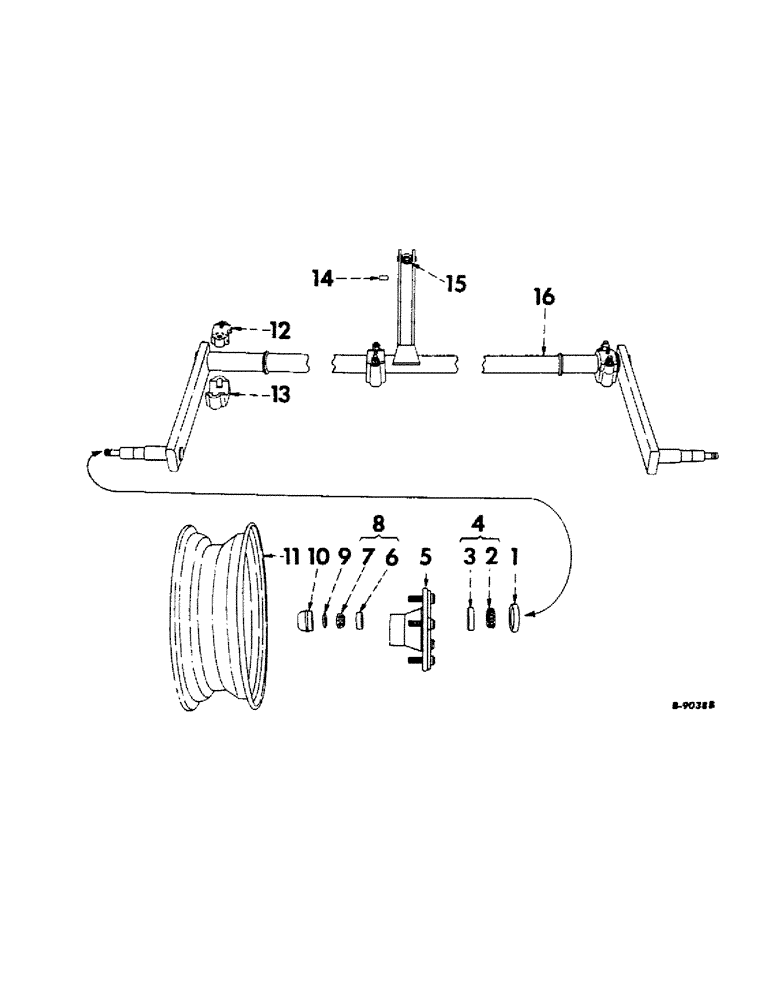

Запчасти Case IH 25 (A-19) - TRAILER AXLE AND WHEELS, (FOR NO. 25 ROTARY CUTTER)

1

652769R91

OIL SEAL

grease (57)

2шт.

1

651193R1

SEAL, grease (55-56)

2шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, gauge wheel bearing, inner (57)

2шт.

2

453279R91

ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"

CONE, gauge wheel bearing, inner (55-56)

2шт.

3

651817R1

BEARING CUP

CUP, gauge wheel bearing, inner (57)

2шт.

3

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

3

54628H

BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"

CUP, gauge wheel bearing, inner (55-56)

2шт.

4

651819R91

BEARING ASSY,1.2508" ID x 2.329" OD x 0.625"

gauge wheel, inner, assembly (57)

2шт.

4

453278R91

BEARING

gauge wheel, inner, assembly (55-56)

2шт.

5

662536R11

GAUGE ASSY.

HUB, wheel, assembly (57), (consists of (4) bolt 660102R1, (1) cup 651814R1, (1) cup 651817R1, (1) hub 651808R3 (NSS), (4) nut 453770R1) (NSS)

2шт.

5

660464R11

HUB, wheel, w/bolts (55-56)

2шт.

.

651795R1

BOLT

conical-hd., 1/2-20 NF x 1-9/32"

10шт.

6

651814R1

BEARING CUP

CUP, gauge wheel, outer (57)

2шт.

6

M32951

BEARING CUP,0.75" ID x 1.938" OD x 0.78125"

CUP, gauge wheel, outer (55-56)

2шт.

7

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

CONE, gauge wheel, outer (57)

2шт.

7

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

7

13823V

CONE

gauge wheel, outer (55-56)

2шт.

8

651816R91

BEARING ASSY,7.5" ID x 17.82" OD x 6"

BEARING, gauge wheel, outer, assembly (57)

2шт.

8

659349R91

TAPERED BEARING

BEARING, gauge wheel, outer assembly (55-56)

2шт.

9

651196R1

WASHER, axle (55-56)

2шт.

10

651194R1

CAP

hub (55)

2шт.

11

662994R91

WHEEL

RIM (for 15" tire) (57)

2шт.

11

453767R91

RIM (for 15" tire) (55-56)

2шт.

12

660591R1

CAP, axle bearing (56)

3шт.

12

660373R1

CAP, axle bearing (1955)

3шт.

.

17770R1

BOLT

machine, hex-hd., 5/8-11 NC x 4-1/2"

6шт.

.

102639

NUT,5/8"-11, G5

6шт.

.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

13

660590R1

BEARING, axle (56)

3шт.

13

660374R1

BEARING, axle (1955)

3шт.

14

28070B

SPACER, crank arm

1шт.

17602R1

BOLT, machine, hex-hd., 7/16-14 NC x 2-3/4"

1шт.

271500

SOCKET

hex., 7/16-14 NC

1шт.

15

661415R1

SWIVEL, threaded crank (57)

1шт.

15

9406

X

SWIVEL, threaded crank (55-56)

1шт.

16

661716R91

AXLE, trailer (welded assembly) (57)

1шт.

.

102649

SLOTTED NUT,5/8"-18, G5

NUT, (57) 5/8"-18, G5

2шт.

.

103396

PIN, SPLIT (COTTER),5/32" x 1"

(57) 5/32" x 1"

2шт.

.

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

plain, 21/32" ID x 1-5/16" OD x .095" thick (57)

2шт.

16

660587R91

AXLE, trailer (welded assembly) (1956)

1шт.

.

427639

SLOTTED NUT,3/4"-16, G5

NUT, slotted-hex., 3/4-16 NF (55-56)

1шт.

.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), (55-56) 3/16" x 1 1/8"

1шт.

16

660359R91

AXLE, trailer (welded assembly) (order one 660587R91 axle, three 660590R1 bearing, and three 660591R1 cap) (1955)

1шт.

.

660102R1

BOLT (SPREADER),Round, 1/2" - 20 x 1 1/2"

BOLT, sp-hd., wheel hub (57)

8шт.

.

273354

SHEAVE

FITTING, lubrication, straight, 3/16"

1шт.

.

For axle bearing

1шт.

.

For crank swivel

1шт.

.

453770R1

WHEEL NUT

special, wheel hub (57)

8шт.

.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight (57) 1/4"-28 NPT x .54" lg

2шт.
