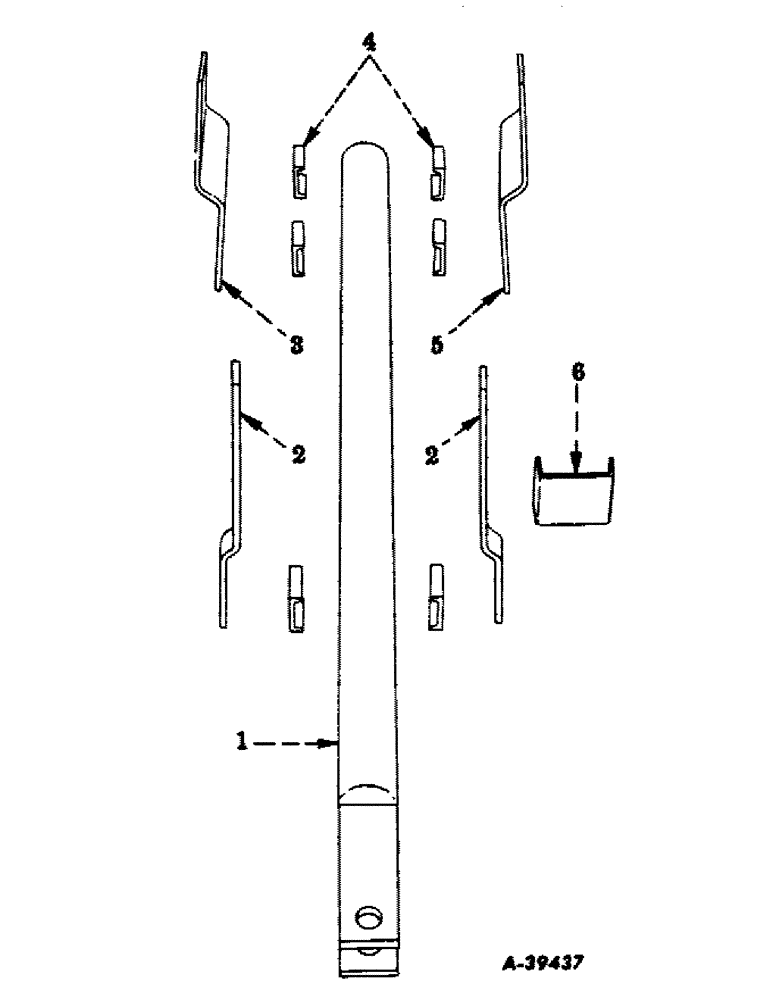

Запчасти Case IH 25 (A-18) - TONGUE, (FOR NO. 25 ROTARY CUTTER)

1

660365R91

TONGUE (welded assembly)

1шт.

17749R1

BOLT

machine, hex-hd., 5/8-11 NC x 4-1/4"

1шт.

17770R1

BOLT

machine, hex-hd., 5/8-11 NC x 4-1/2"

2шт.

102639

NUT,5/8"-11, G5

3шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

514126R1

WASHER

plain, 11/16" ID x 1-1/2" OD x 3/16"

4шт.

2

660389R1

ARM, rocker, bearing

2шт.

17864R1

BOLT, machine, hex-hd., 1/2-13 NC x 5-3/4"

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

660397R1

BRACKET, tongue, right

1шт.

17525R1

BOLT

machine, hex-hd., 5/8-11 NC x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

660398R1

SPACER, tongue

6шт.

5

660396R1

BRACKET, tongue, left

1шт.

17525R1

BOLT

machine, hex-hd., 5/8-11 NC x 2"

2шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

660409R1

BRACE, bearing rocker arm

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, carriage, 3/8-16 NC x 1"

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
