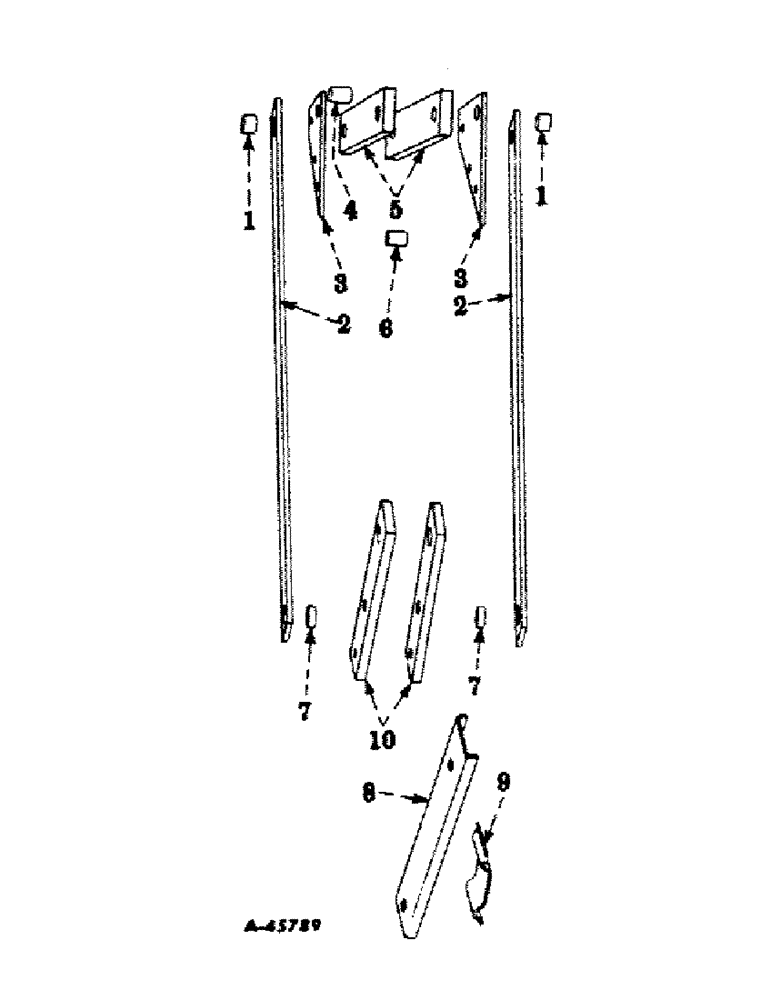

Запчасти Case IH 25 (A-16) - HYDRAULIC CYLINDER LIFT ATTACHMENT, (FOR NO. 25 ROTARY CUTTER) (USED 1956 TO 1961)

661721R91

HYDRAULIC CYLINDER LIFT ATTACHMENT (for no. 25 rotary cutter) consists of all the parts listed below

1шт.

1

PO16550

SPACER, cylinder strap

2шт.

2

661724R1

STRAP, pivot cylinder

2шт.

17678R1

BOLT, machine, hex-hd., 3/4-10 NC x 3-1/2"

1шт.

17816R1

BOLT,Hex, 3/4" - 10 x 5", Gr 2

machine, hex-hd., 3/4-10 NC x 5"

1шт.

220081

NUT

hex., 3/4-10 NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

Q5099

WASHER

plain, 25/32" ID x 3/4" OD x no. 11 ga.

4шт.

3

661723R1

PLATE, locking

2шт.

17627R1

BOLT

machine, hex-hd., 1/2-13 NC x 3"

1шт.

102637

NUT,1/2"-13, G5

1шт.

512353R1

PIN, cotter, quick-attachable

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

PIN, straight, 5/16 x 1-7/8"

1шт.

4

PO16548

BUSHING, rockshaft strap

1шт.

557274

WASHER, plain, 1-5/32" ID x 2" OD x no. 11 ga.

2шт.

5

661725R1

STRAP, rockshaft

2шт.

17630R1

BOLT

machine, hex-hd., 3/4-10 NC x 3"

1шт.

220181

NUT, hex., 3/4-10 NC

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

6

661727R1

SPACER, locking plate

1шт.

7

26938B

SPACER, cylinder anchor

6шт.

8

661726R1

SUPPORT, hose

1шт.

9

515030R1

CLAMP

hose

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, carriage, 5/16-18 NC x 1-1/2"

1шт.

MUT, wing, 3/8-16 NC

1шт.

10

661722R1

ANCHOR, cylinder

2шт.

17699R1

BOLT,Hex, 1/2" - 13 x 3 3/4"

machine, hex-hd., 1/2-13 NC x 3-3/4"

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
