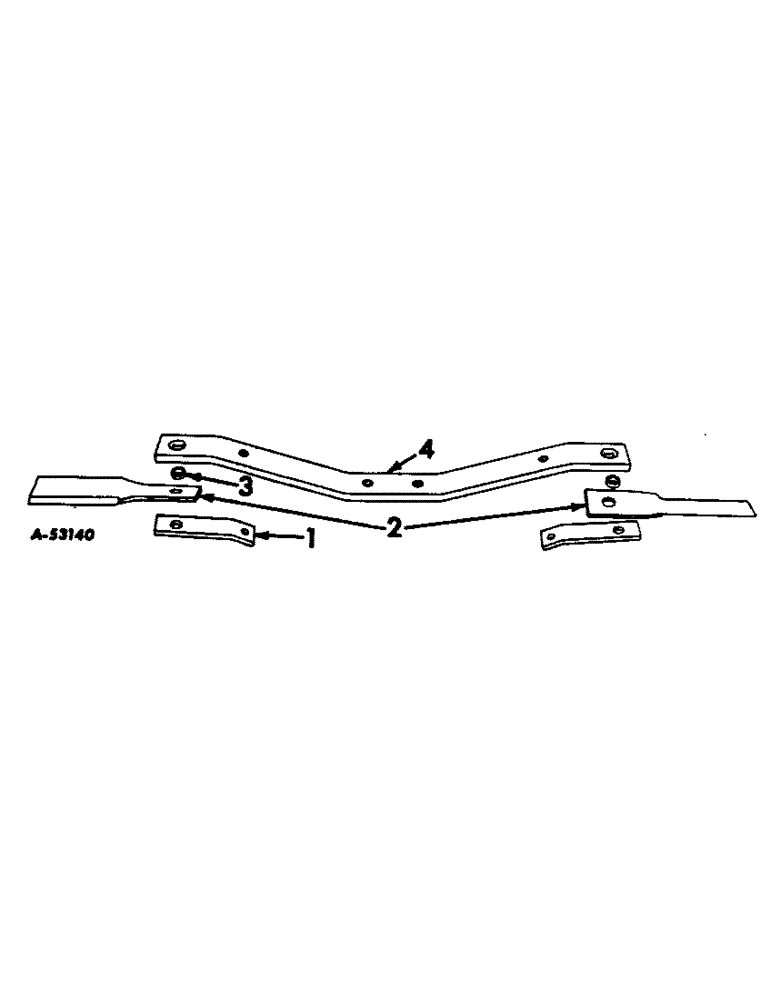

Запчасти Case IH 211 (E-06) - ROTOR BAR AND BLADES, 1964 TO 1966

1

664017R1

STRAP

HAMMERSTRAP, rotor

2шт.

231-1408

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

SCREW, 1/2-13 x 1-3/4 hex-hd cap

2шт.

2

663999R11

HALF BLADE

BLADES, pair of twisted

1шт.

15646R1

BOLT,#3, 3/4" - 10 x 2 1/2"

3/4-10 x 2-1/2 no. 3 plow

2шт.

18444R1

NUT,3/4"-10, GB

3/4-10 ESNA stop

2шт.

3

664023R1

BUSHING

swinging blade

2шт.

4

664019R2

BAR, rotor

1шт.

19606R1

NUT,5/8"-11, GB

5/8-11 ESNA stop

2шт.

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

SCREW, 5/8-11 x 2-1/4 hex-hd cap

2шт.
