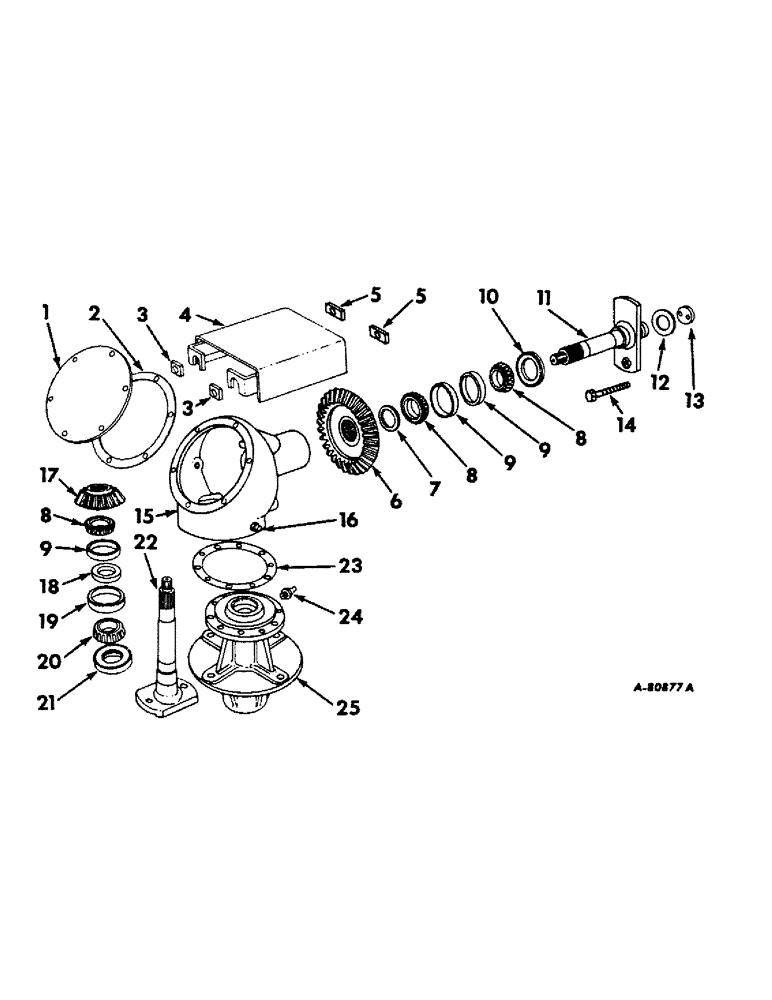

Запчасти Case IH 211 (E-05) - MAIN DRIVE

1

663596R1

COVER, main gear housing

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16-18 x 3/4 hex-hd mach

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

663607R1

GASKET

gear case cover

1шт.

3

471111R1

PAD

SPACER, rubber

2шт.

4

469400R91

SHIELD ASSY, shear bolt

1шт.

16870R1

BOLT, 1/2-13 x 1 sq-hd mach

2шт.

5

478359R1

RETAINER, bolt

2шт.

6

549251R1

GEAR

input drive bevel, 20 T, 540 RPM PTO

1шт.

7

663604R1

SHIM

bevel drive gear, .020

2шт.

7

663605R1

SHIM

bevel drive gear, .007

2шт.

7

663606R1

SHIM

bevel drive gear, .005

2шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING ASSY, cone

3шт.

9

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

3шт.

10

378157R91

OIL RESERVOIR

SEAL, main gear housing oil

1шт.

11

663995R92

SHAFT ASSY, horizontal input, Serial Range: 1964-1966

1шт.

11

484302R91

SHAFT ASSY, horizontal input, 1966 and since

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

12

659625R1

WASHER

1-1/2 x 2-1/2 x 18 ga

1шт.

13

659623R1

WASHER, drive shaft retaining

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

18767R1

BOLT,Hex, 5/16"-18 x 2", G2

5/16-18 x 2 hex-hd mach

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

478800R1

HOUSING, upper gear

1шт.

495538R1

PLUG, 3/8 sq-hd dld pipe

1шт.

16

445673

PIPE PLUG,Sq Hd, 3/8"-18 NPTF

PLUG, 3/8 sq-hd pipe

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

17

549252R1

PINION

GEAR, output driven bevel, 15 T, 540 RPM PTO

1шт.

18

20108D

SEAL

vertical shaft upper oil

1шт.

19

17498D

TAPERED BEARING," ID x 76.2125 mm OD x 23.9135 mm

BEARING, vertical shaft lower cap

1шт.

20

459454R91

ROLLER BEARING,1.563" ID x 1.01"

BEARING ASSY, vertical shaft cone

1шт.

21

664068R91

SEAL

vertical shaft lower oil

1шт.

22

664016R1

SHAFT, vertical

1шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

493814R1

WASHER, 29/32 x 2 x 3 ga

1шт.

23

478801R1

SHIM, lower housing, .020, will work for 663601R1

2шт.

23

478802R1

SHIM

lower housing, .007, will work for 663602R1

2шт.

23

478803R1

SHIM

lower housing, .005, will work for 663603R1

2шт.

24

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 self-tapping str lub

1шт.

25

664014R3

HOUSING, lower

1шт.

226092R1

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 8

7/16-14 x 1-1/2 hex-hd cap

10шт.

19441R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 ESNA stop

4шт.

20065R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 hex-hd cap

4шт.

131100

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

5шт.
