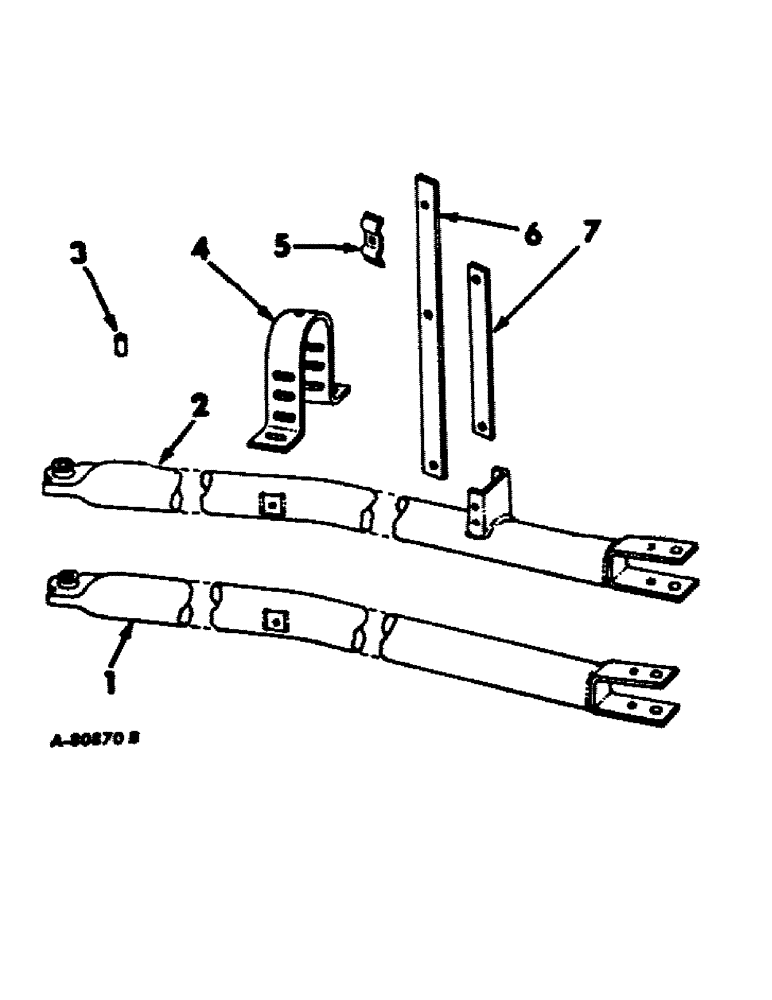

Запчасти Case IH 211 (E-04) - TONGUE FOR TRAILING HITCH

1

478128R11

TONGUE ASSY, knuckle drive hitch, Serial Range: 1964-1970

2шт.

2

478101R11

TONGUE ASSY, knuckle drive hitch

3шт.

3

471530R1

SPACER, ball joint

1шт.

22892

NUT, 5/8-11 ESNA stop

1шт.

20665R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

SCREW, 5/8-11 x 4-1/4 hex-hd cap type 4

1шт.

523061R1

WASHER

21/32 x 1-3/8 x 11 ga

1шт.

4

478103R1

BRACE, tongue adjusting

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 hex-hd cap

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

SCREW, 1/2-13 x 5 hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

607895R1

WASHER

17/32 x 1 x 11 ga

2шт.

5

515030R1

CLAMP

hyd hose, for 3 knuckle drive hitch

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, 3/8-16 x 1-3/4 sq-nk crg

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

1шт.

6

478295R1

BAR, PTO hanger brg & hose support, for 3 knuckle drive hitch

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 hex-hd mach

2шт.

18817R1

BOLT,Hex, 1/2" - 13 x 6", Gr 2

1/2-13 x 6 hex-hd mach

1шт.

19676R1

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 ESNA stop

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

7

478294R1

BAR, PTO hanger brg support, for 3 knuckle drive hitch

1шт.
