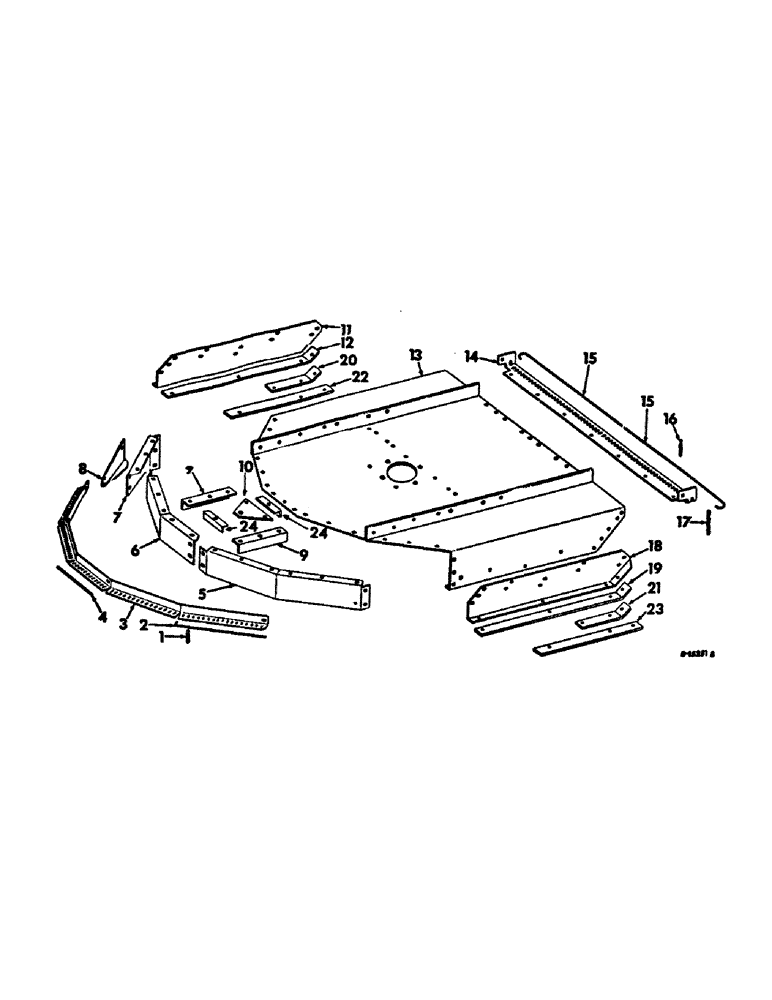

Запчасти Case IH 211 (E-03) - MAIN FRAME, CHAIN GUIDE, HARROW HITCH, ADJUSTABLE

1

665054R92

CHAIN, rear & sides safety, 3 links, special

44шт.

2

478119R1

ROD, angled side safety chain lock, special

4шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

3

478117R1

BRACKET, chain guard rear, special

1шт.

21860R1

BOLT, 3/8-16 x 7/8 short-sq-nk crg

3шт.

18684R1

BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2

3/8-16 x 1-1/4 short-sq-nk crg

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

478118R1

ROD, rear center safety chain lock special

1шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

5

478081R1

SHEET, rear right

1шт.

6

478079R1

SHEET, rear center

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short-sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

478080R1

SHEET, rear left

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short-sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

8

478122R1

SHEET, distribution, special, Serial Range: 1964-1967

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 short-sq-nk crg

2шт.

102635

NUT,3/8"-16, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

478078R1

ANGLE, cutter box center reinforcement

2шт.

102637

NUT,1/2"-13, G5

4шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

10

469398R1

PLATE, harrow hitch, special, Serial Range: 1964-1970

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180178

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

SCREW, 1/2-13 x 1-5/8 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

478123R1

RUNNER, adj LH, special

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT 3/8-16 x 1 short-sq-nk crg

6шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

6шт.

102637

NUT,1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

478125R1

SUPPORT, abrasion resistant left runner special, Serial Range: 1964-1966

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

13

478070R92

BOX ASSY, cutter

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd Short NK, 3/8"-16 x 7/8", G2, Full Thd

8шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2-13 x 1 short-sq-nk crg

7шт.

102635

NUT,3/8"-16, G5

12шт.

102637

NUT,1/2"-13, G5

7шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

7шт.

14

478116R1

BRACKET, chain guard front, special

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 short-sq-nk crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

15

479981R1

ROD, front safety chain lock, special

2шт.

125637

COTTER PIN,1/8" x 2"

PIN, SPLIT (COTTER), 1/8" x 2"

2шт.

16

469318R91

CHAIN, front safety, 4 links, special

34шт.

17

665053R92

CHAIN, front outer safety, 6 links, special

4шт.

18

478124R1

RUNNER, adj RH, special

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8-16 x 1 short-sq-nk crg

6шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

102635

NUT,3/8"-16, G5

6шт.

102637

NUT,1/2"-13, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

19

478126R1

SUPPORT, abrasion resistant right runner, special, Serial Range: 1964-1966

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

481609R1

RUNNER, abrasion resistant wear LH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

21

481610R1

RUNNER, abrasion resistant wear RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

485746R1

BAR, wear runner extension LH, Serial Range: 1964-1968

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

3шт.

120381

WASHER

3/8 C-Z med lock

3шт.

23

485747R1

BAR, wear runner extension RH, Serial Range: 1964-1968

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C-Z hex-hd cap

3шт.

120381

WASHER

3/8 C-Z med lock

3шт.

24

480477R1

ANGLE, reinforcement

2шт.
