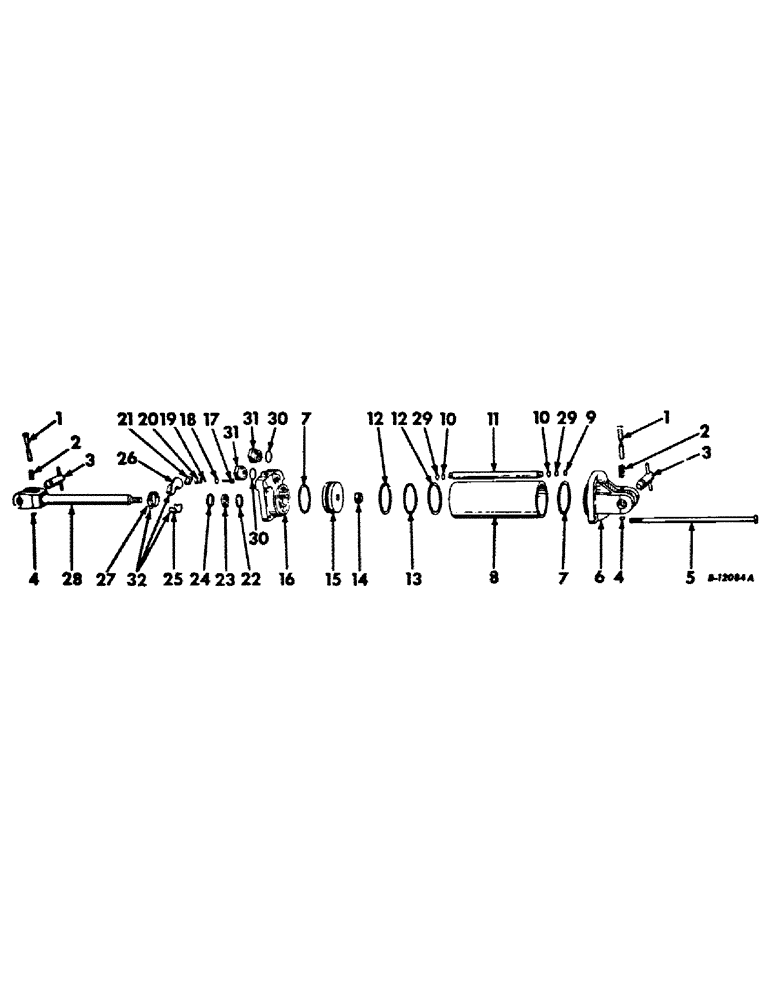

Запчасти Case IH 211 (E-28) - HYDRAULIC CYLINDER, DOUBLE ACTION, 3-1/2 IN. X 8 IN.

371292R91

HYDRAULIC CYLINDER

CYLINDER ASSY, 3-1/2 in. x 8 in.

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

352231R11

PIN

ASSY, cyl pivot

2шт.

4

354837R1

WASHER

lock pin

2шт.

5

361004R1

BOLT,Hex, 1/2" - 20 x 13 7/16"

hyd cyl tie

4шт.

25-118

NUT,1/2"-20, G5

1/2-20 hex.

4шт.

6

371298R3

HEAD

hyd cyl, rear

1шт.

7

354836R1

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

3-1/4 x 3-1/2 x 1/8

2шт.

8

354051R1

BARREL,3.5035" ID, .429" OD, 10.26" Length

TUBE, hyd cyl

1шт.

9

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

10

NOT REQUIRED

1шт.

11

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cyl return

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

12

375936R1

BACK-UP RING

WASHER, piston head back-up

2шт.

13

378827R1

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

3-1/8 x 3-1/2 x 3/16, piston head

1шт.

14

361011R1

NUT

3/4-16 ESNA stop

1шт.

15

361003R1

HEAD

piston

1шт.

16

371297R11

HEAD (CYLINDER)

HEAD ASSY, hyd cyl - front

1шт.

17

361006R11

VALVE

ASSY, limit stop

1шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, limit stop valve retainer

1шт.

19

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16 limit stop valve, small

1шт.

20

361007R11

RETAINER

ASSY, limit stop valve

1шт.

21

361009R1

PLATE

limit stop valve retainer

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

22

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

cyl gland

1шт.

23

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

24

354049R1

RETAINER

dust seal

1шт.

25

360372R1

COLLAR

stroke limit, plain half

1шт.

26

361010R1

COLLAR

stroke limit, flanged half

1шт.

27

361085R91

CLAMP

stroke limit collar

1шт.

28

361005R12

NO LONGER SERVICED

ROD ASSY, piston

1шт.

29

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32, cyl return tube

2шт.

30

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, cylinder head plug

2шт.

31

9410360

PLUG

7/8-14 cd or zn-pltd str

2шт.

32

375426R91

COLLAR

ASSY, stroke limit

1шт.

2751852R1

PRODUCT GRAPHICS, international, hydraulic cylinder label

1шт.

2751860R1

PRODUCT GRAPHICS, hyd cyl, identification label

1шт.

363138R92

SEAL KIT

PACKAGE, seal replacement, consists of (1), o-ring 354047R1, (1), seal 354048R1, (1), retainer 354049R1, (2), o-ring 354836R1, (2), 375936R1, (1) o-ring 378827R1, (1), o-ring 360599R1, (1), o-ring, 350429R1, (2), o-ring, 377952R1, (2), washer 371218R2

1шт.
