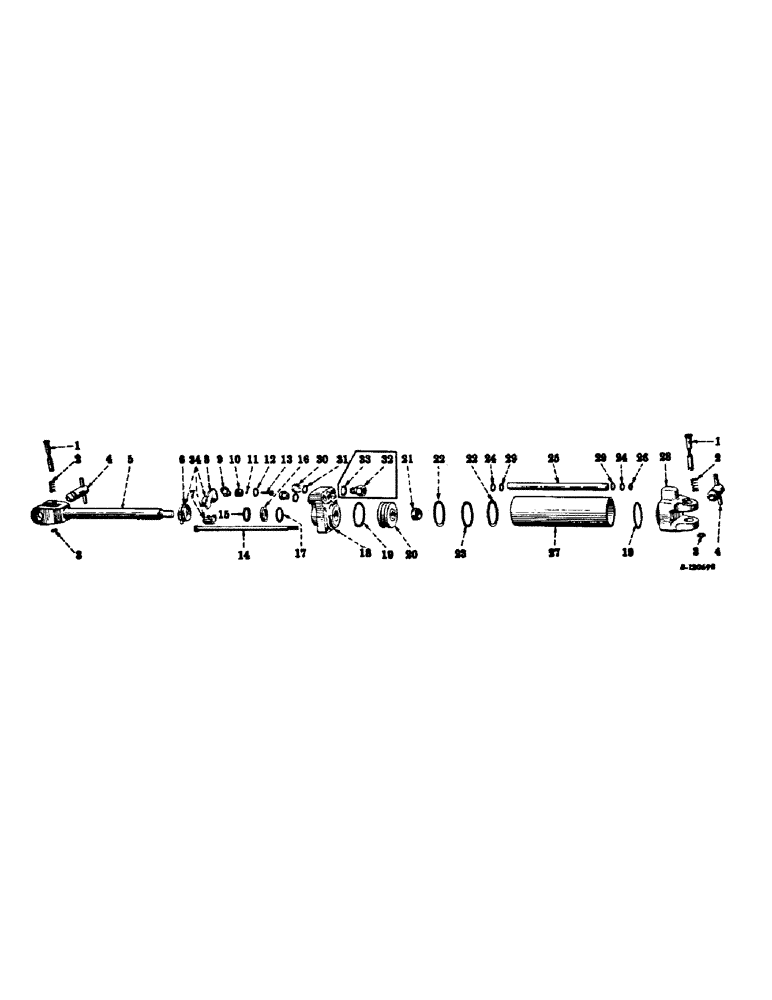

Запчасти Case IH 211 (E-27) - HYDRAULIC CYLINDER, DOUBLE ACTION, 2-1/2 IN. X 8 IN.

371291R93

HYDRAULIC CYLINDER

CYLINDER ASSY, 2-1/2 x 8 in. hyd

1шт.

1

352369R2

PIN

lock

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

2

352370R1

SPRING

lock pin

2шт.

3

354837R1

WASHER

lock pin

2шт.

4

352231R11

PIN

ASSY, cyl pivot

2шт.

5

361005R12

NO LONGER SERVICED

ROD ASSY, piston

1шт.

6

361085R91

CLAMP

stroke limit collar

1шт.

7

360372R1

COLLAR

stroke limit, plain half

1шт.

8

361010R1

COLLAR

stroke limit, flanged half

1шт.

9

361009R1

PLATE

limit stop valve retaining

1шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

10

361007R11

RETAINER

ASSY, limit stop valve

1шт.

11

360599R1

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

3/16 x 5/16 x 1/16 limit stop valve

1шт.

12

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32 limit stop valve retainer, large

1шт.

13

361006R11

VALVE

ASSY, limit stop

1шт.

14

384750R1

BOLT,Hex, 7/16" - 14 x 12 1/8"

7/16-14 x 12-1/8 hex-hd

4шт.

15

354049R1

RETAINER

piston rod dust seal

1шт.

16

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

17

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

hyd cyl gland

1шт.

18

371295R21

HEAD ASSY, hyd cyl, front

1шт.

19

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 x 1/8

2шт.

20

361000R1

HEAD

piston

1шт.

21

361011R1

NUT

3/4-16 ESNA stop

1шт.

22

361013R1

BACK-UP RING,59.08mm ID x 63.75mm OD x 2.39mm Thk

piston head back-up

2шт.

23

350657R1

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

2-1/8 x 2-1/2 x 3/16 piston head

1шт.

24

377952R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

9/16 x 3/4 x 3/32 hyd cyl return tube

2шт.

25

371211R2

TUBE,0.573" ID, 0.748" OD, 10.963" Length

cyl return

1шт.

371218R2

BACK-UP RING,0.594" ID x 0.36" Width

return tube o-ring back-up

2шт.

26

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

27

356817R1

TUBE,2.505" ID, 2.812" OD, 10.26" Length

hyd cyl

1шт.

28

371296R3

HEAD

hyd cyl, rear

1шт.

29

354835R1

WASHER

cylinder return tube

2шт.

30

9410359

PLUG

3/4-16 cd or zn-pltd str

2шт.

31

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

for 1/2 OD tube

2шт.

32

NOT USED

1шт.

33

NOT USED

1шт.

34

375426R91

COLLAR

ASSY, stroke limit

1шт.

2751852R1

PRODUCT GRAPHICS, International hydraulic cylinder label

1шт.

2751858R1

PRODUCT GRAPHICS, hyd cyl identification label

1шт.

363137R92

SEAL KIT

PACKAGE, seal replacement, consists of (1) ring 350129R1, (1) ring 350657R1, (2) ring 379952R1, (1) ring 354047R1, (2) ring 293726R1, (1) ring 360599R1, (1) seal 354048R1, (2) washer 361013R1

1шт.
