Запчасти Case IH 211 (E-26) - HYDRAULIC CYLINDER, DOUBLE ACTION, 2 IN. X 8 IN.

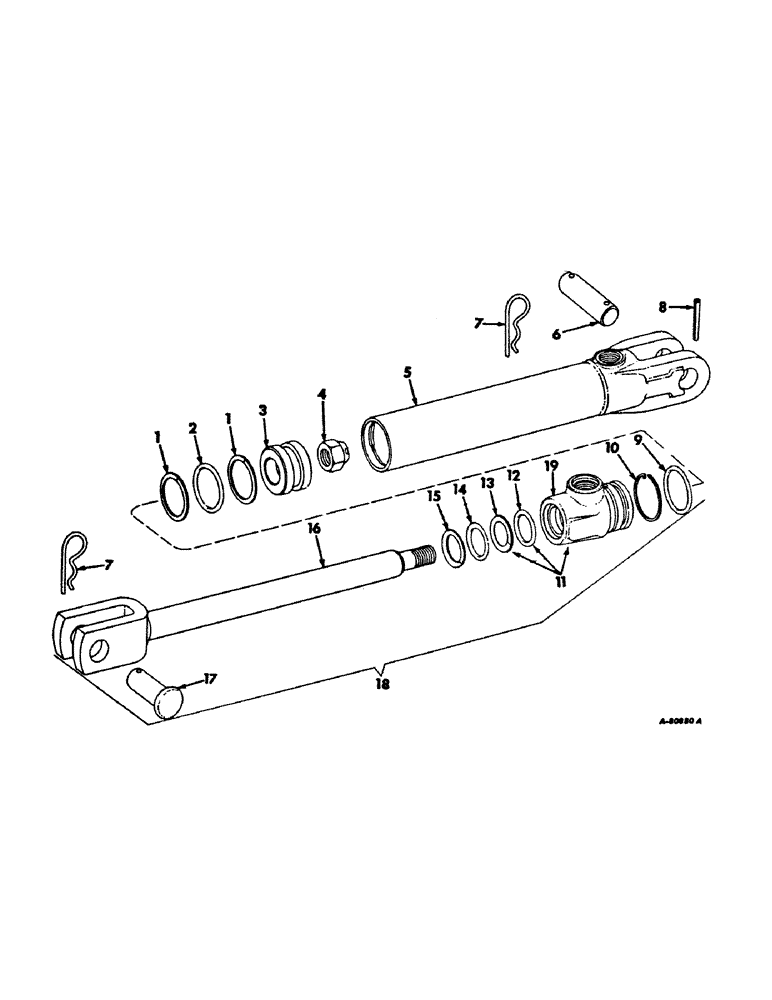

Схема запчастей Case IH 211 - (E-26) - HYDRAULIC CYLINDER, DOUBLE ACTION, 2 IN. X 8 IN.

Артикул

Название

Примечание

Количество

1

381850R1

WASHER

piston head backup

2шт.

2

381565R1

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1-5/8 x 2 x 3/16, piston head

1шт.

3

381849R1

HEAD

piston

1шт.

4

385054R1

NUT

3/4-16 hex. lock

1шт.

5

381820R91

TUBE ASSY, cyl

1шт.

6

381852R11

PIN

W/SPRING PIN, cyl pivot

1шт.

7

520175R1

CLIP

PIN, quick attachable cot.

2шт.

8

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

9

384251R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 x 1/8, rod end head

1шт.

10

461180R1

RETAINER

cyl end

1шт.

11

381803R11

HEAD

ASSY, rod end

1шт.

12

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

hyd cyl gland

1шт.

13

383669R1

BACK-UP RING

hyd cyl gland back-up

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

15

354049R1

RETAINER

cylinder head seal

1шт.

16

381842R91

ROD

ASSY, piston

1шт.

17

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 x 2-3/4 headed

1шт.

18

381833R91

CYLINDER

ASSY, 2 x 8 in., double acting

1шт.

2751852R1

PRODUCT GRAPHICS, international, hydraulic cylinder label

1шт.

2751854R1

PRODUCT GRAPHICS, hyd cyl, identification label

1шт.

386685R91

KIT

PACKAGE, seal replacement, consists of (1), o-ring 381565R1, (2), washer 381850R1, (1), seal 354048R1, (1), retainer 354049R1, (1), o-ring 354047R1, (1), washer 383669R1, (1), o-ring 384251R1

1шт.

Выбрано товаров: 21
