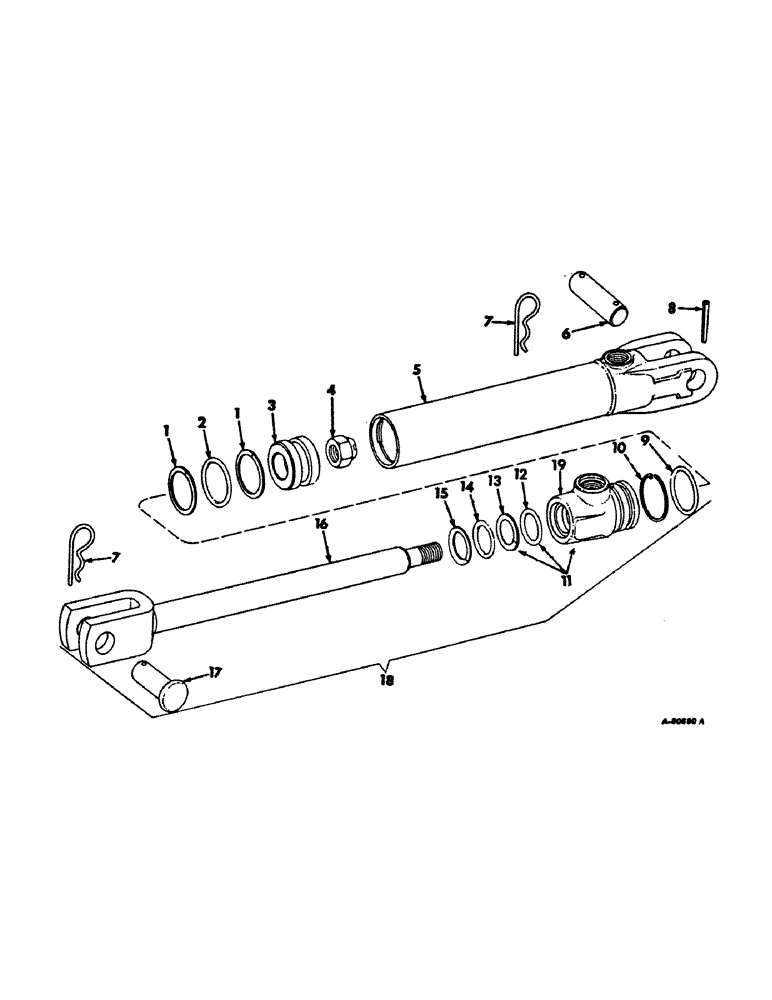

Запчасти Case IH 211 (E-25) - HYDRAULIC CYLINDER, DOUBLE ACTION, 3 IN. X 8 IN.

1

381872R1

WASHER

piston head backup

2шт.

2

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16, piston head

1шт.

3

381870R1

PISTON

HEAD, piston

1шт.

4

385041R1

NUT, 3/4-16 hex. lock

1шт.

5

381861R91

BODY

TUBE ASSY, cyl

1шт.

6

381852R11

PIN

W/SPRING PIN, cyl pivot

1шт.

7

520175R1

CLIP

PIN, quick attachable type A

2шт.

8

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

9

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 1/8, rod end head

1шт.

10

381873R1

RETAINER

cyl end

1шт.

11

381805R11

HEAD

ASSY, rod end

1шт.

12

354047R1

O-RING,0.21" Thk x 1.15" ID, Cl 6

O-RING, cylinder head

1шт.

13

383669R1

BACK-UP RING

cylinder head back-up

1шт.

14

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

15

354049R1

RETAINER

cylinder head seal

1шт.

16

381842R91

ROD

ASSY, piston

1шт.

17

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 2-3/4 headed

1шт.

18

381854R91

CYLINDER

ASSY, 3 x 8 in., double acting

1шт.

2751852R1

PRODUCT GRAPHICS, international, hydraulic cylinder label

1шт.

2751856R1

PRODUCT GRAPHICS, hyd cyl, identification label

1шт.

386687R91

KIT

PACKAGE, seal replacement, consists of (1), seal 359048R1, (1), retainer 354049R1, (1), o-ring 354047R1, (1), washer 383669R1, (1), o-ring 381871R1, (2), washer 381872R1, (1), o-ring 384250R1

1шт.
