Запчасти Case IH 211 (E-24) - HYDRAULIC CYLINDER, SINGLE ACTION, 3 IN. X 8 IN.

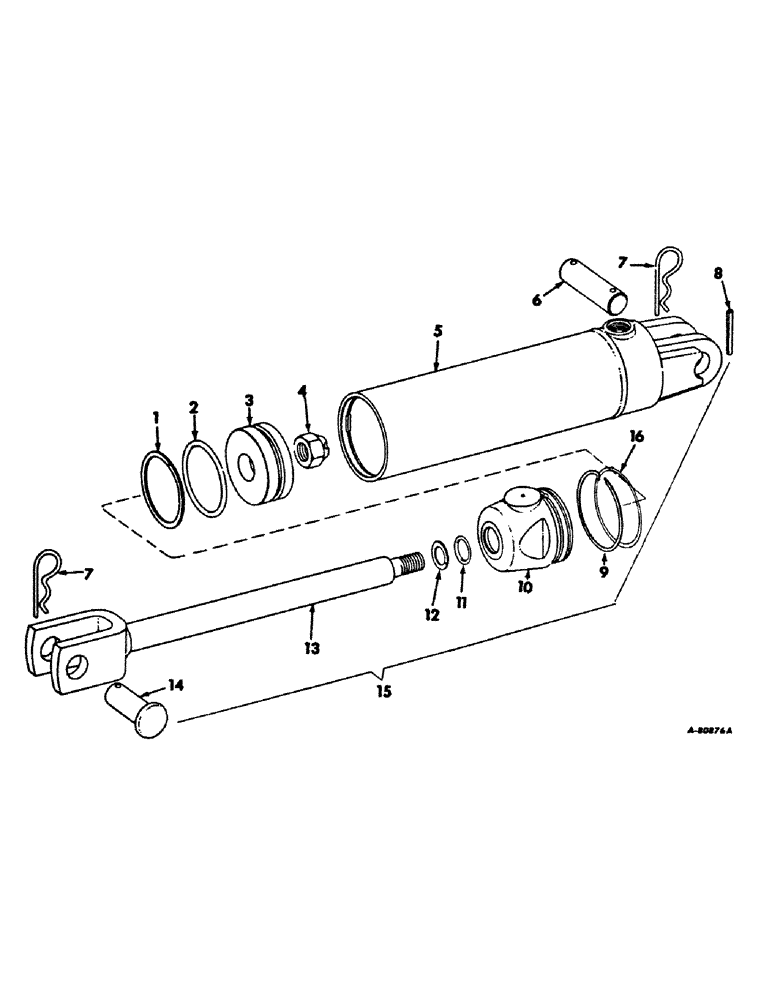

Схема запчастей Case IH 211 - (E-24) - HYDRAULIC CYLINDER, SINGLE ACTION, 3 IN. X 8 IN.

Артикул

Название

Примечание

Количество

1

381872R1

WASHER

piston head backup

1шт.

2

381871R1

O-RING,0.21" Thk x 2.6" ID, -334, Cl 6, 90 Duro

2-5/8 x 3 x 3/16 piston head

1шт.

3

381869R1

PISTON

HEAD, piston, 3 in. dia

1шт.

4

385054R1

NUT

3/4-16 hex. lock

1шт.

5

381861R91

BODY

TUBE ASSY, cyl

1шт.

6

381852R11

PIN

W/SPRING PIN, cyl pivot

1шт.

7

520175R1

CLIP

PIN, quick attachable type A

2шт.

8

591260R1

Pin, 1/4" x 1 7/8", Coiled 1/4" x 1 7/8", Coiled

1шт.

9

381873R1

RETAINER

cyl end

1шт.

10

381804R11

HEAD

ASSY, rod end

1шт.

11

354048R1

WASHER,1.06" ID x 1.5" OD x 0.25" Thk

SEAL, piston rod dust

1шт.

12

354049R1

RETAINER

piston rod dust seal

1шт.

13

381842R91

ROD

ASSY, piston

1шт.

14

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 2-3/4 headed

1шт.

15

381853R91

CYLINDER

ASSY, 3 in. x 8 in.

1шт.

386688R91

PACKAGE

seal replacement, consists of (1), seal 354048R1, (1), retainer 354049R1, (1), o-ring 381871R1, (1), washer 381872R1

1шт.

16

384250R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2-3/4 x 3 x 18, for head assy

1шт.

Выбрано товаров: 17
