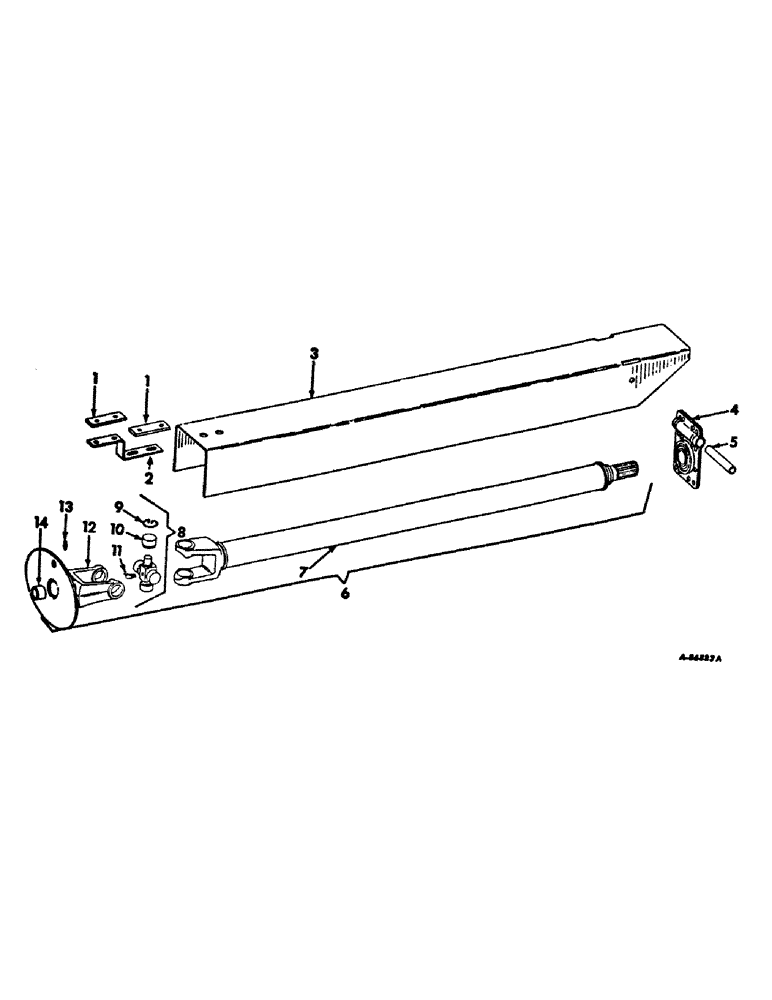

Запчасти Case IH 211 (E-22) - REAR POWER DRIVE AND SHIELD, ROCKWELL, STANDARD, FOR THREE KNUCKLE PTO DRIVE

1

469913R1

SPACER, clutch & drive shield rubber

2шт.

2

469384R1

CLIP, input drive shield support

1шт.

3

469385R11

SHIELD W/PRODUCT GRAPHIC, input drive

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 C-Z

2шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

4

ST669

BEARING ASSY,35mm ID

PTO drive hanger

1шт.

5

463580R1

SPACER,1/2" Pipe x 4.109"

hanging brg

1шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

6

469356R91

SHAFT ASSY, rear drive, unit A, Serial Range: 1964-1966

14шт.

6

484299R91

SHAFT ASSY, rear drive, unit A, 1966 and since

1шт.

6

469357R91

SHAFT ASSY, rear drive, unit B

1шт.

7

469439R1

TUBE W/YOKE AND SPLINE, tubular

1шт.

8

469047R91

CENTER CROSS ASSY

1шт.

9

576420R1

RING

SNAP RING

4шт.

10

569044R91

BEARING ASSY

ASSY, needle

4шт.

11

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

1шт.

12

664030R91

YOKE

W/PLATE, flanged, unit A, Serial Range: 1964-1966

1шт.

12

484300R91

YOKE ASSY, shear bolt, unit A, 1966 and since

1шт.

12

460614R21

YOKE

W/PLATE, unit B, refer to slip clutch for illustration

1шт.

13

102467H

FITTING

1/4-28 NF 2 str lub, unit A

1шт.

14

485393R1

BUSHING

1шт.
