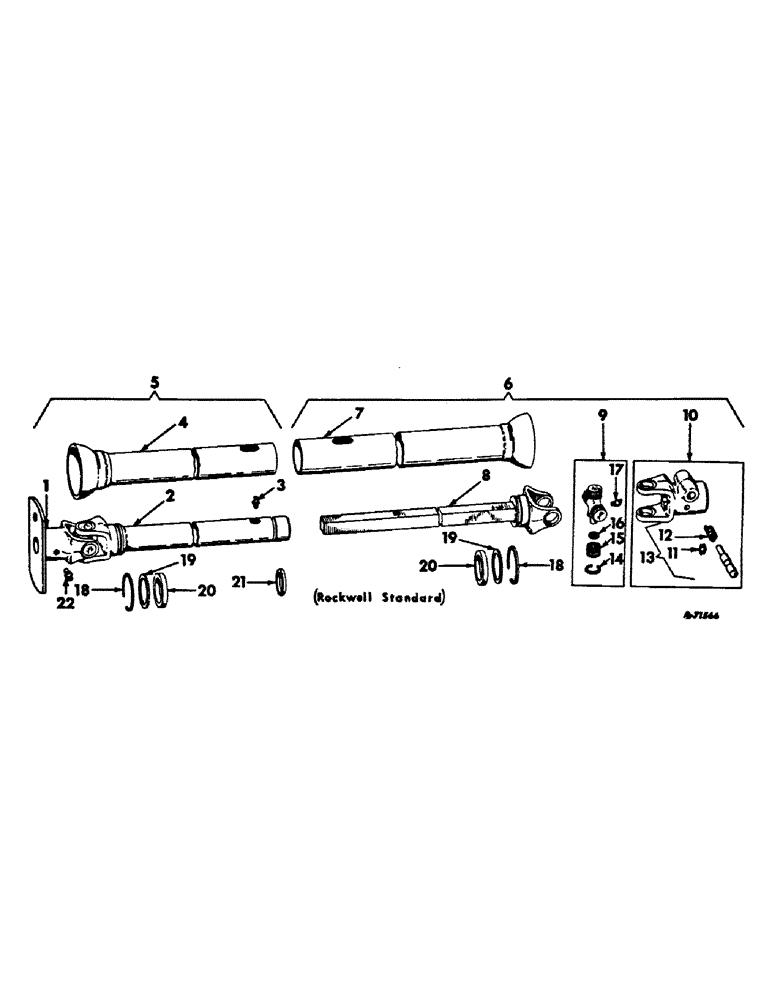

Запчасти Case IH 211 (E-21) - POWER DRIVE EQUIPMENT, ROCKWELL, STANDARD,, FOR TWO OR THREE POINT HITCH

1

664030R91

YOKE

W/PLATE, flange, unit A, Serial Range: 1964-1966

1шт.

1

484300R91

YOKE ASSY, shear bolt, unit A, 1966 and since

1шт.

1

460614R21

YOKE

W/BUSHING, flange, unit B, refer to slip clutch for illustration

1шт.

2

465168R91

YOKE W/TUBE

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF, 2 str lub

1шт.

4

465170R91

SHIELD, inner

1шт.

5

465942R91

JOINT ASSY, single universal shielded rear half, implement end, unit A, Serial Range: 1964-1966

1шт.

5

484298R91

JOINT ASSY, single universal shielded rear half, implement end, unit A, 1966 and since

1шт.

5

465943R91

JOINT ASSY, single universal shielded rear half, implement end, unit B

1шт.

6

467325R91

JOINT ASSY, single universal shielded front half, tractor end, for 540 RPM-PTO

1шт.

7

467327R1

SHIELD, outer

1шт.

8

467326R1

YOKE

SHAFT W/YOKE

1шт.

9

569147R91

CENTER CROSS ASSY

2шт.

10

568100R92

YOKE

ASSY, quick detachable 3/8 in. spline, for 540 RPM-PTO

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

12

455347R1

VALVE SPRING

SPRING, lock pin, for 540 RPM-PTO

1шт.

13

455346R21

PIN

ASSY, lock, for 540 RPM-PTO

1шт.

14

576420R1

RING

snap

8шт.

15

569044R91

BEARING ASSY

ASSY, needle

8шт.

16

NOT USED

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 deg angle lub

2шт.

18

613436R1

CLAMP

RING, snap

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

BEARING, nylon support

1шт.

22

102467H

FITTING

1/4-28 NF, 2 str lub, unit A

1шт.
