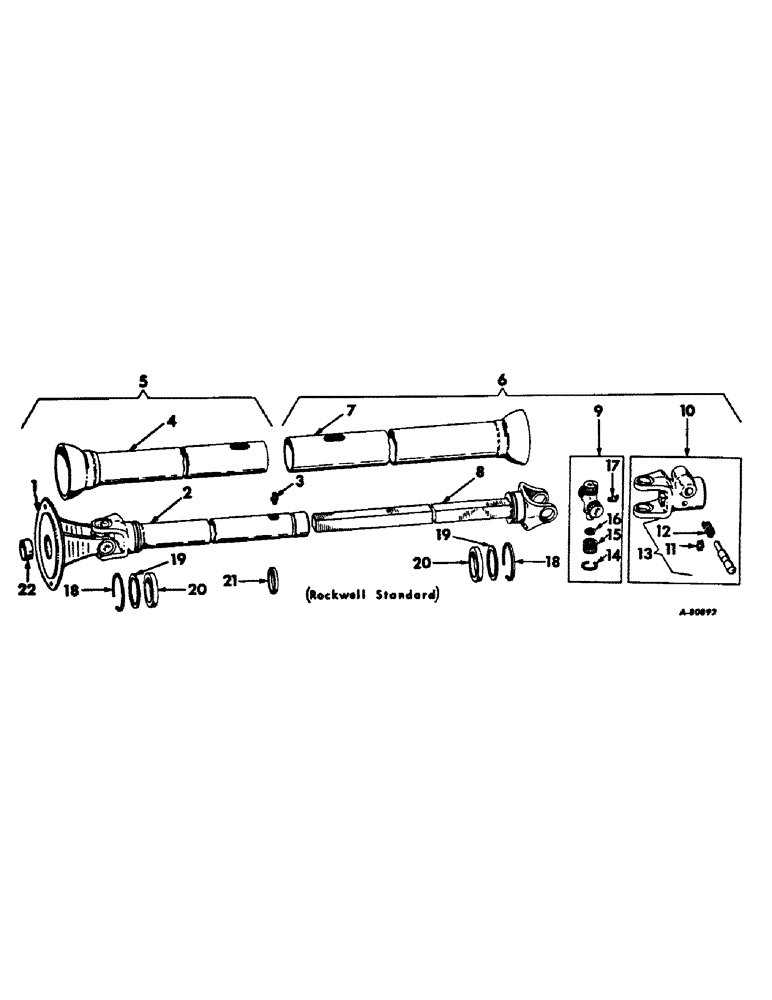

Запчасти Case IH 211 (E-20) - POWER DRIVE EQUIPMENT, ROCKWELL, STANDARD, FOR TRAILING HITCH TWO KNUCKLE DRIVE, 1964 TO 1968

1

460614R21

YOKE

W/PLATE AND BUSHING, unit A and B

1шт.

1

466382R11

YOKE W/PLATE AND BUSHING, unit C and D

1шт.

2

474471R1

YOKE TUBE & SLEEVE ASSY, unit A and B

1шт.

2

474480R1

YOKE TUBE & SLEEVE ASSY, unit C and D

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF 2 str lub

1шт.

4

474472R1

SHIELD TUBE & BELL ASSY, inner, unit A and B

1шт.

4

474481R1

SHIELD & BELL ASSY, inner, unit C and D

1шт.

5

474470R91

JOINT ASSY, single universal shielded rear half, implement end, unit A and B

1шт.

5

474479R91

JOINT ASSY, single universal shielded rear half, implement end, Unit C and D

1шт.

6

474463R91

JOINT ASSY, single universal shielded front half, tractor end, unit A

1шт.

6

474466R91

JOINT ASSY, single universal shielded front half, tractor end, unit B

1шт.

6

474473R91

JOINT ASSY, single universal shielded front half, tractor end, unit C

1шт.

6

473182R91

JOINT ASSY, single universal shielded front half, tractor end, unit D

1шт.

7

474465R1

SHIELD TUBE & BELL ASSY, outer, unit A and B

1шт.

7

473509R1

SHIELD & BELL ASSY, outer, unit C and D

1шт.

8

474464R1

SHAFT W/YOKE, unit A and B

1шт.

8

473508R1

SHAFT W/YOKE, unit C and D

1шт.

9

569047R91

REPAIR KIT

CENTER CROSS ASSY, unit A and B

2шт.

9

660116R91

NUT

CENTER CROSS ASSY, unit C and D

1шт.

10

568100R92

YOKE

ASSY, quick detachable 3/8 in. spline, unit A

1шт.

10

472857R91

YOKE

ASSY, quick detachable 3/8 in. spline, unit B

1шт.

10

660484R21

FORK

YOKE ASSY, quick detachable 3/8 in. spline, unit C

1шт.

10

583876R11

YOKE

ASSY, quick detachable 3/8 in. spline, unit D

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, locking pin

1шт.

12

455347R1

VALVE SPRING

SPRING, lock pin, unit A, B and C

1шт.

12

587479R1

SPRING

locking pin unit D

1шт.

13

455346R21

PIN

ASSY, lock, unit A, B and C

1шт.

13

631976R91

PIN

ASSY, locking, unit D

1шт.

14

576420R1

RING

snap, unit A and B

8шт.

14

495962R1

RING

snap, unit C and D

8шт.

15

569044R91

BEARING ASSY

ASSY, needle, unit A and B

8шт.

15

661671R91

JOINT

BEARING ASSY, needle cup, unit C and D

8шт.

16

NOT USED

1шт.

17

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

1/8-27 PTF 65 deg angle lub

2шт.

18

613436R1

CLAMP

RING, snap

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

SUPPORT, nylon

1шт.

22

460538R1

BUSHING

bronze

1шт.
