Запчасти Case IH 211 (E-19) - FRONT POWER DRIVE EQUIPMENT STANDARD, FOR TRAILING TYPE

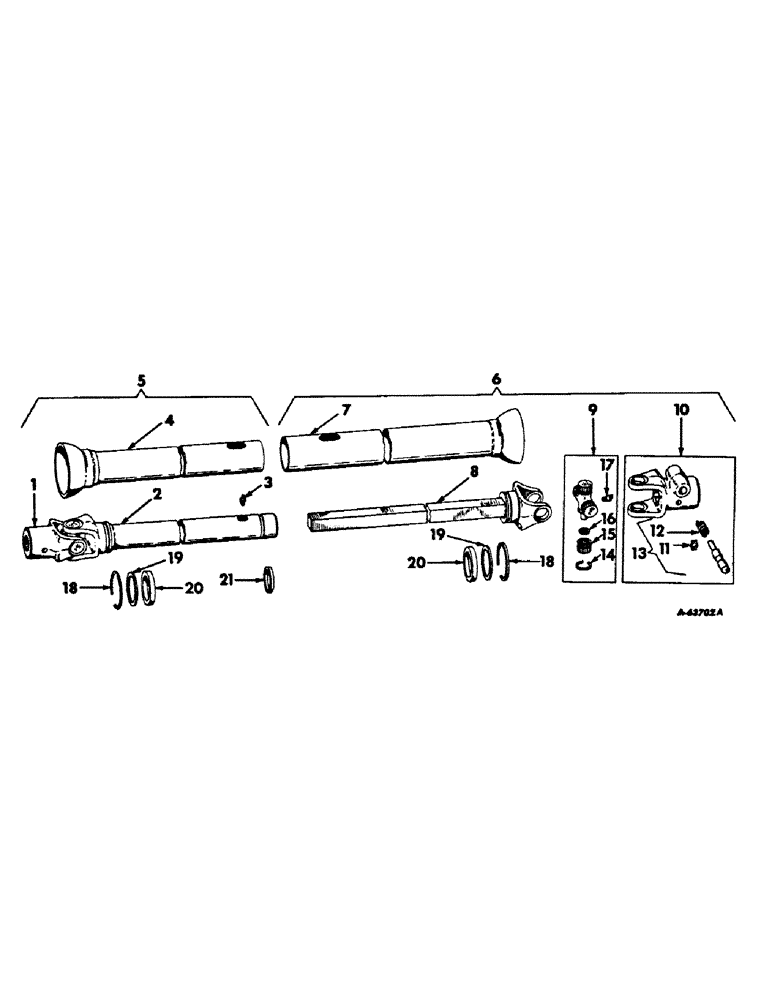

Схема запчастей Case IH 211 - (E-19) - FRONT POWER DRIVE EQUIPMENT STANDARD, FOR TRAILING TYPE

Артикул

Название

Примечание

Количество

1

460620R11

FORK TEDDER

YOKE W/SET SCREW AND NUT

1шт.

114496

HOURMETER,Jam, 1/2"-20, G5

NUT, 1/2-20 hex. jam

1шт.

38904K

SET SCREW,1/2" - 20 x 1-9/16"

SCREW, 1/2-20 x 1-3/16 sq-hd cup PT set

1шт.

2

469438R1

YOKE

W/TUBE

1шт.

3

19688R1

LUBE NIPPLE,1/4"-28 x .44" lg

FITTING, 1/4-28 NF - 2 str lub

1шт.

4

469437R1

SHIELD, inner

1шт.

5

469355R91

JOINT ASSY, single universal shielded rear half, implement end, for 540 or 1000 RPM-PTO

1шт.

6

469354R92

JOINT ASSY, single universal shielded front half, tractor end, for 540 RPM-PTO

1шт.

7

469436R1

SHIELD, outer

1шт.

8

469435R1

YOKE

SHAFT W/YOKE

1шт.

9

569047R91

REPAIR KIT

CENTER CROSS ASSY

2шт.

10

568100R92

YOKE

ASSY, quick detachable 3/8 in. spline, for 540 RPM-PTO

1шт.

10

472857R91

YOKE

ASSY, quick detachable 3/8 in. spline, 1000 RPM-PTO

1шт.

11

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

X-WASHER, lock pin

1шт.

12

455347R1

VALVE SPRING

SPRING, lock pin, for 540 RPM-PTO

1шт.

13

455346R21

PIN

ASSY, lock, for 540 RPM-PTO

1шт.

14

576420R1

RING

snap

8шт.

15

569044R91

BEARING ASSY

ASSY, needle

8шт.

16

NOT USED

1шт.

17

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 PTF 65 degree angle lub

2шт.

18

613436R1

CLAMP

RING, snap

2шт.

19

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

20

464920R1

NYLON BEARING,2.08" ID x 2.8" OD x 0.38"

nylon

2шт.

21

613439R1

BRACKET

BEARING, nylon support

1шт.

Выбрано товаров: 24
