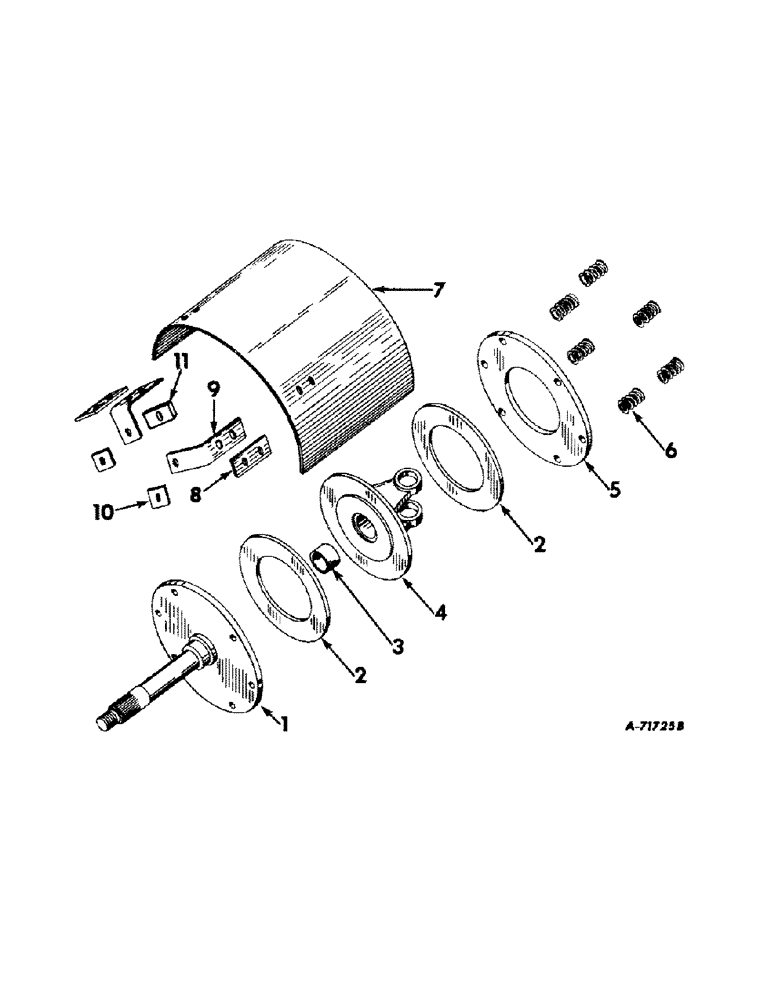

Запчасти Case IH 211 (E-15) - SLIP CLUTCH

1

460321R12

SHAFT

ASSY, input

1шт.

274993

SHIELD

3/8-16 hex. lock

6шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-14 slt hex.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap

6шт.

20803R1

WASHER

3/8-16 x 3-1/4 hex-hd cap

6шт.

2

474599R1

FACING

clutch

2шт.

3

460538R1

BUSHING

bronze

1шт.

4

460614R21

YOKE

W/BUSHING, flanged

1шт.

5

460498R1

RETAINER

PLATE, clutch floating

1шт.

6

M14033

SPRING

compression

6шт.

7

469382R1

SHIELD ASSY, slip clutch

1шт.

664645R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex. lock

4шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd mach

4шт.

8

469913R1

SPACER, rubber

2шт.

9

469383R1

BRACKET, slip clutch shield

2шт.

16870R1

BOLT, 1/2-13 x 1 sq-hd mach

2шт.

10

471111R1

PAD

SPACER, rubber

2шт.

11

478359R1

RETAINER, bolt

2шт.
