Запчасти Case IH 211 (E-14) - DIRT SHIELD AND ROW CROP PICKUP ATTACHMENT, 1964 TO 1971

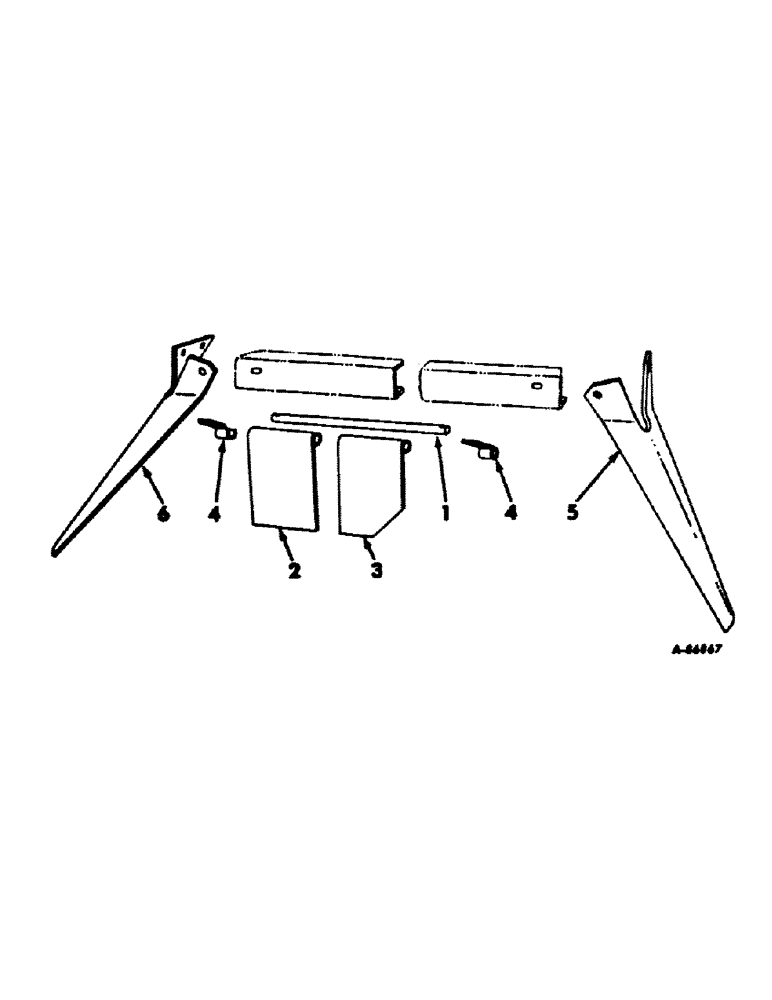

Схема запчастей Case IH 211 - (E-14) - DIRT SHIELD AND ROW CROP PICKUP ATTACHMENT, 1964 TO 1971

Артикул

Название

Примечание

Количество

1

484544R1

ROD, curtain hanger

1шт.

178373R1

WASHER

17/32 x 1 x 16 ga C-Z

3шт.

16791R1

COTTER PIN

PIN, 3/16 x 1 parkerized cot.

2шт.

2

484542R1

CURTAIN, deflector

1шт.

3

484543R1

CURTAIN, deflector

1шт.

4

484545R1

CLIP, dirt shield

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C-Z hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

484540R1

FINGER, pickup LH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

6

484541R1

FINGER, pickup RH

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

3шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z3

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

Выбрано товаров: 19
