Запчасти Case IH 211 (E-12) - THREE-POINT HITCH

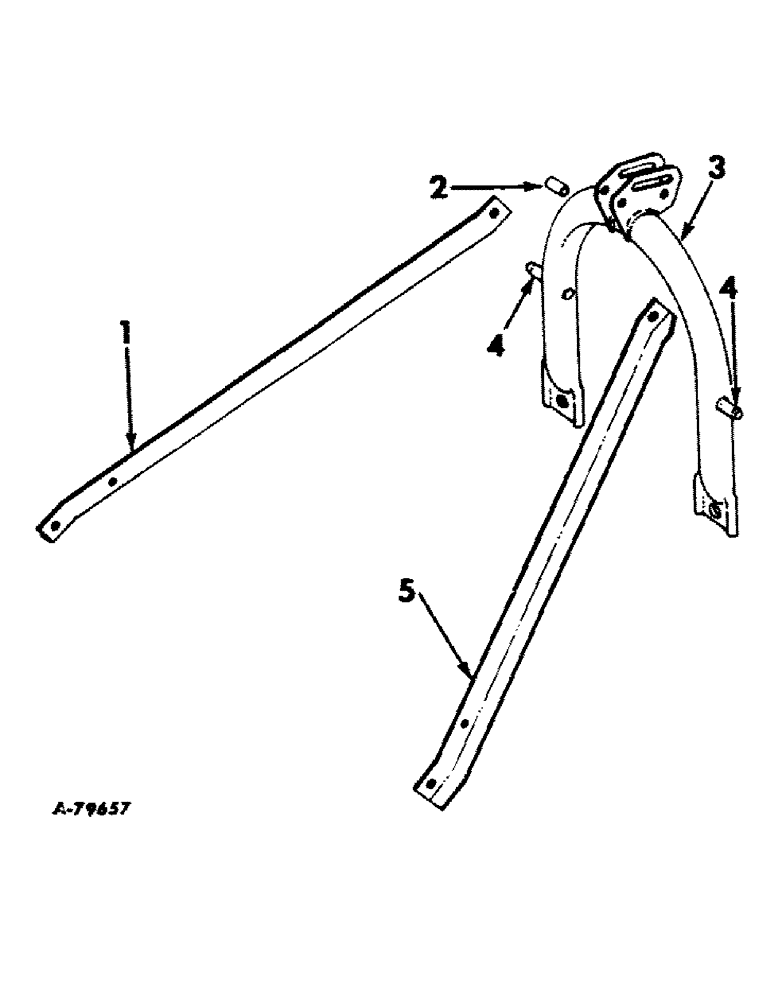

Схема запчастей Case IH 211 - (E-12) - THREE-POINT HITCH

Артикул

Название

Примечание

Количество

1

478098R1

BRACE, upper link left

1шт.

18828R1

BOLT,Hex, 5/8"-11 x 4", G5

5/8-11 x 4 C-Z hex-hd mach

1шт.

271547

STUD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 C-Z hex-hd cap

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

3шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

2

466606R1

SPACER, upper link

1шт.

3

481706R12

PIPE ASSY W/INSTRUCTIONS, hanger

1шт.

271548

BOLT (SPREADER),Hex, 5/8" - 11 x 1 3/4", Gr 5

SCREW, 5/8-11 x 1-3/4 hex-hd cap

2шт.

22892R1

NUT, 5/8-11 znp nylon insert

2шт.

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

4

469302R1

PIN, coupling beam, Serial Range: 1964-1965

2шт.

481614R1

PIN

LINK, 1965 and since, for category 1 three-point hitch

2шт.

4

481615R1

PIN

link, 1965 and since, for category 2 three-point hitch

2шт.

5

478099R1

BRACE, upper link right

1шт.

19831R1

LOCK NUT,7/8"-14

NUT, 7/8-14 nylon insert

2шт.

Выбрано товаров: 16
