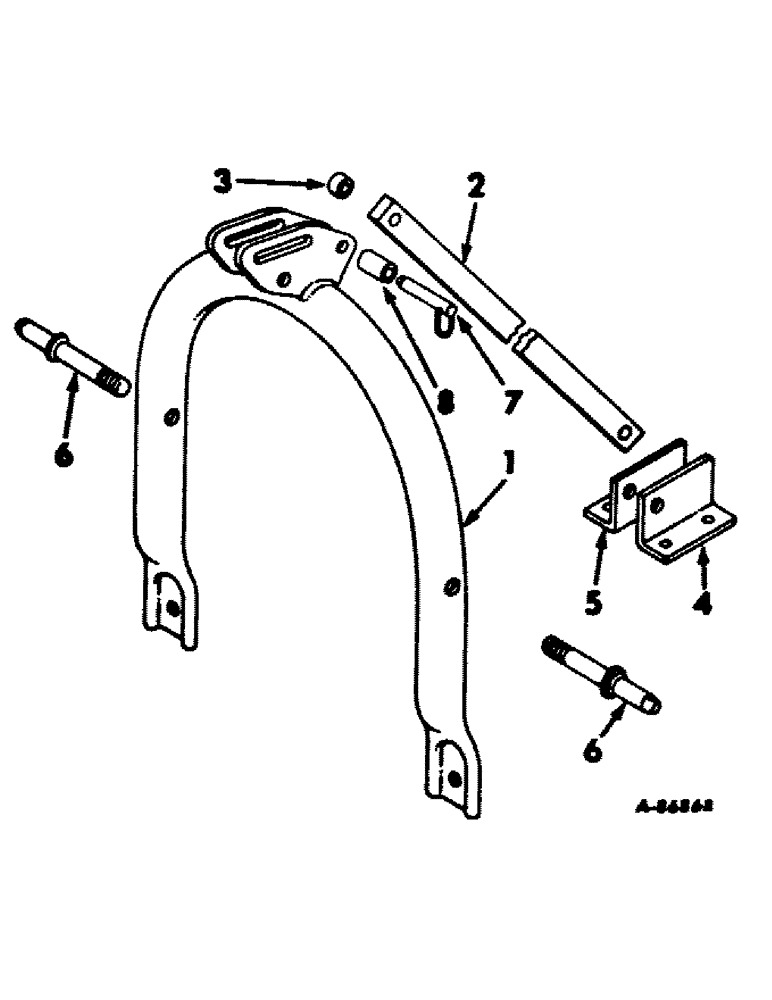

Запчасти Case IH 211 (E-11) - THREE-POINT OFFSET HITCH, 1964 TO 1967

1

481706R12

PIPE ASSY, drawbar hanger

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

SCREW, 5/8-11 x 1-1/2 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

480760R1

BAR, upper link brace

1шт.

271731

SHAFT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, 5/8-11 x 4 C-Z hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

1шт.

271771

HOUSING,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 C-Z hex-hd cap

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

3

658640R1

SPACER

1шт.

4

480761R1

ANGLE, upper link brace bracket LH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

480762R1

ANGLE, upper link brace bracket RH

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW 1/2-13 x 1-1/4 C-Z hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

6

481614R1

PIN

link

2шт.

19831R1

LOCK NUT,7/8"-14

NUT, 7/8-14 zinc nylon insert, for category 1 three-point hitch

2шт.

6

481615R1

PIN

link

2шт.

19831R1

LOCK NUT,7/8"-14

NUT, 7/8-14 zinc nylon insert, for category 2 three-point hitch

2шт.

7

380580R91

PIN

ASSY, upper link, for category 2 three-point hitch

1шт.

8

380582R1

BUSHING

upper, for category 2 three-point hitch

1шт.
