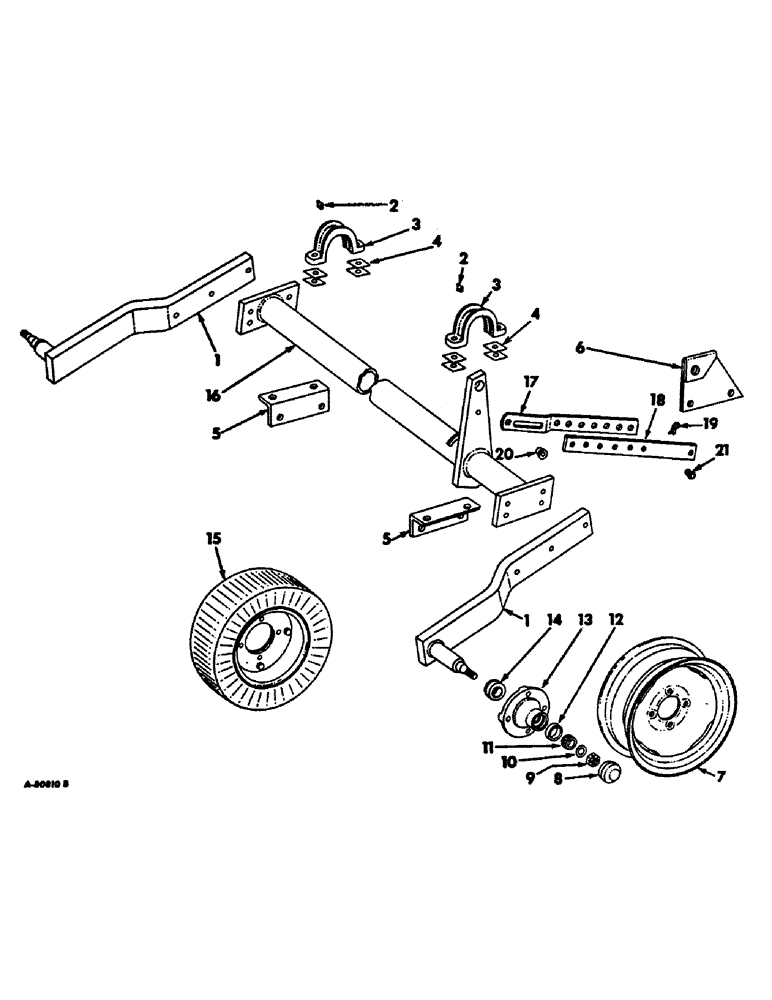

Запчасти Case IH 211 (E-10) - TRAILING AXLE, WHEELS AND PUNCTURE-PROOF TIRES

1

479645R11

SPINDLE ASSY, dual position axle

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

2

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4-28 drive thd str lub

2шт.

3

469433R1

CLAMP

center axle plate

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20534R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

SCREW, 1/2-13 x 1-3/4 type 4 hex-hd

4шт.

492-21050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

4

469407R1

BAR

SHIM, axle clamp, use 8 per clamp or as required

1шт.

5

469280R2

BRACKET, axle brg

2шт.

20033R1

LOCK NUT

NUT, 5/8-11 nylon insert

4шт.

432695R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4 hex-hd

4шт.

6

469281R1

BRACKET, hydraulic cylinder

1шт.

18458R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2, Full Thd

5/8 x 1-3/4 C-Z hex-hd mach

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z hex.

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

7

463036R1

WHEEL (STEERING)

RIM, 14 x 5KB wheel, recommended tire size, 7.50-14, & 8.00-14

2шт.

8

651194R1

CAP

wheel hub

2шт.

9

69442D

NUT

3/4-10 slt hex. jam

2шт.

10

21713R1

WASHER,25/32" x 1 3/4" x .120"

25/32 x 1-3/4 x 11 ga

2шт.

11

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, wheel hub outer cone

2шт.

11

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

12

651814R1

BEARING CUP

BEARING, wheel hub outer cup

2шт.

13

465492R2

HUB

wheel

2шт.

663000R1

BOLT,1/2" - 20 x 1 1/32"

1/2-20 x 1-5/16 C-Z

8шт.

14

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

W/SEAL, wheel hub inner roller

2шт.

15

469413R91

RIM W/PUNCTURE PROOF TIRE, 6.00-9, for wheel only order 540185R1

1шт.

181694

BOLT,Hex, 1/2" - 20 x 7/8"

SCREW, 1/2-20 x 7/8 C-Z, hex-hd cap

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

16

479647R11

AXLE ASSY, dual position

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

4шт.

20199R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

SCREW, 5/8-11 x 2-1/2 C-Z hex-hd cap

4шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

17

476942R1

BAR, transport lock upper, Serial Range: 1964-1970

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 C-Z hex-hd cap

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 1/2-13 x 2 C-Z hex-hd cap

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

446221

WASHER,7/16"

1/2 x 1-1/8 x .064

1шт.

18

476941R1

BAR, transport lock lower, Serial Range: 1964-1970

1шт.

180190

LOCK SCREW,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3 C-Z hex-hd cap

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga C-Z

1шт.

607895R1

WASHER

17/32 x 1 x 11 ga C-Z

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

19

520175R1

CLIP

PIN, quick attachable cot., Serial Range: 1964-1970

1шт.

20

476943R1

SPACER, Serial Range: 1964-1970

1шт.

21

5699S

PIN, 1/2 x 1-3/16 std-hd, Serial Range: 1964-1970

1шт.
