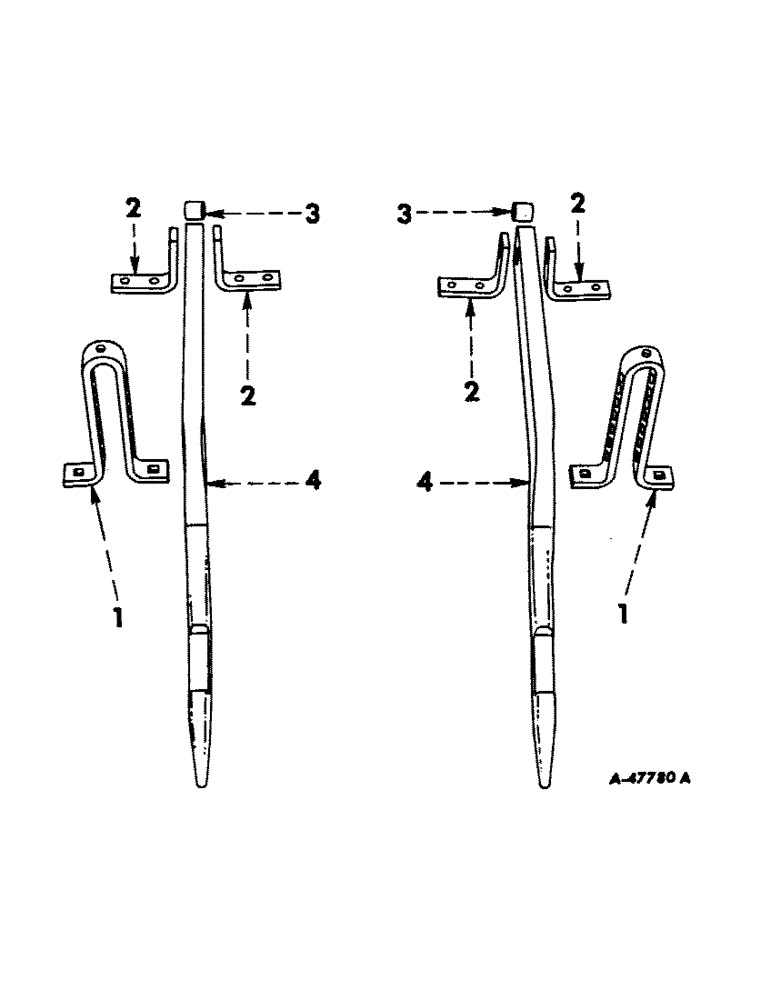

Запчасти Case IH 211 (E-09) - COUPLING BEAMS

1

664028R1

BRACKET, coupling beam adj

2шт.

12686R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1/2", Gr 2, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/2", G2, Full Thd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

PG141

PIN

1/2 x 2 std-hd

6шт.

520175R1

CLIP

PIN, quick attachable cot.

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

2

469258R1

STRAP, coupling beam

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

8шт.

18172R1

BOLT

3/4-10 x 3 C-Z hex-hd mach

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

280954

NUT,3/4"-10, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

3

664034R1

SPACER, coupling beam

2шт.

4

473691R91

BEAM ASSY, coupling, for use w/tractors w/two-point fast-hitch having 3 in. sockets

2шт.
