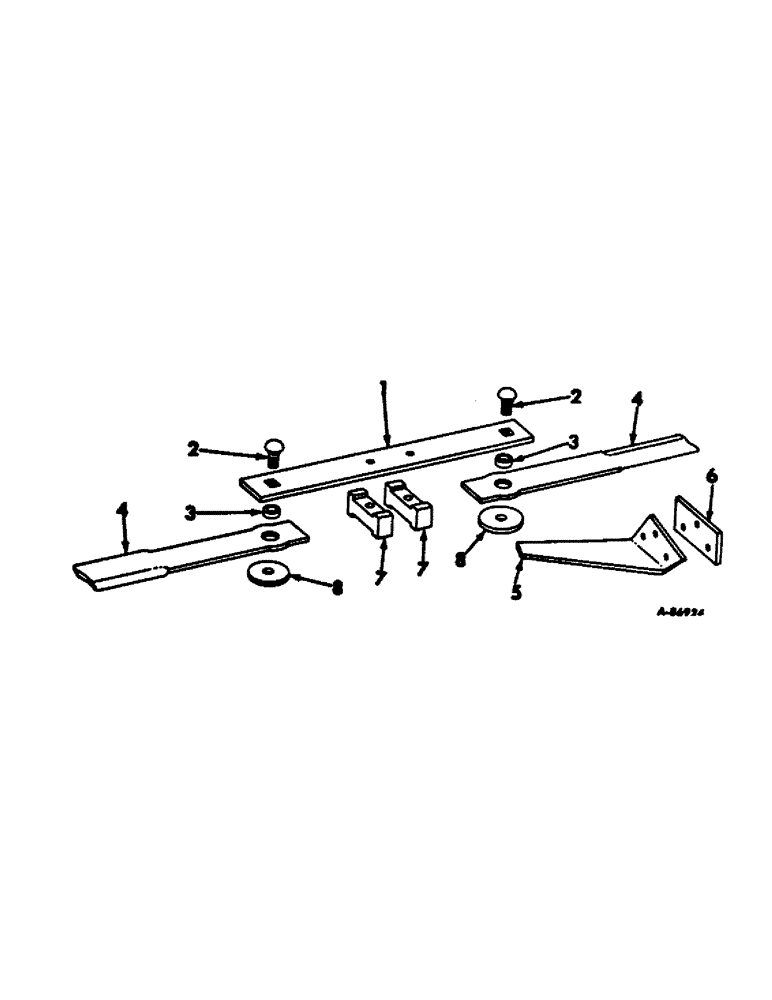

Запчасти Case IH 211 (E-08) - SHREDDING ATTACHMENT, 1964 TO 1968

1

484451R1

BAR, upper rotor

1шт.

19749R1

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 nylon insert

2шт.

2

484454R1

BOLT

7/8-9 x 2.3 sq-nk crg

2шт.

3

483602R1

BUSHING, blade, for 3/8

1шт.

3

484929R1

BUSHING

blade, for 1/2

1шт.

4

484936R91

HALF BLADE

BLADE W/BUSHING, 3/8 suction plain pair, standard

1шт.

4

484938R91

BLADE

W/BUSHING, 3/8 suction coated pair

1шт.

4

484937R91

BLADE

W/BUSHING, 3/8 str plain pair

1шт.

4

484939R91

BLADE

W/BUSHING, 3/8 str coated pair

1шт.

4

484941R91

HALF BLADE

BLADE W/BUSHING, 1/2 str plain pair

1шт.

4

484940R91

HALF BLADE

BLADE W/BUSHINGS, 1/2 suction plain pair

1шт.

4

484943R91

PACKAGE

BLADE W/BUSHING, 1/2 str coated pair

1шт.

4

484942R91

BLADE

W/BUSHING, 1/2 suction coated pair

1шт.

4

484935R91

BLADE W/BUSHING, 3/8 extra heavy duty pair

1шт.

5

472793R1

KNIFE

shredding

1шт.

6

484456R1

BAR, reinforcement

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

7

484455R1

SPACER, rotor bar

2шт.

20487R1

BOLT,Hex, 5/8" - 11 x 4 1/2", Gr 8

2шт.

19508R1

LOCK NUT,5/8"-11, GB

NUT, 5/8-11 nylon insert

2шт.

8

484453R1

WASHER, 4.0 x .906 x 5/16 thick

2шт.
