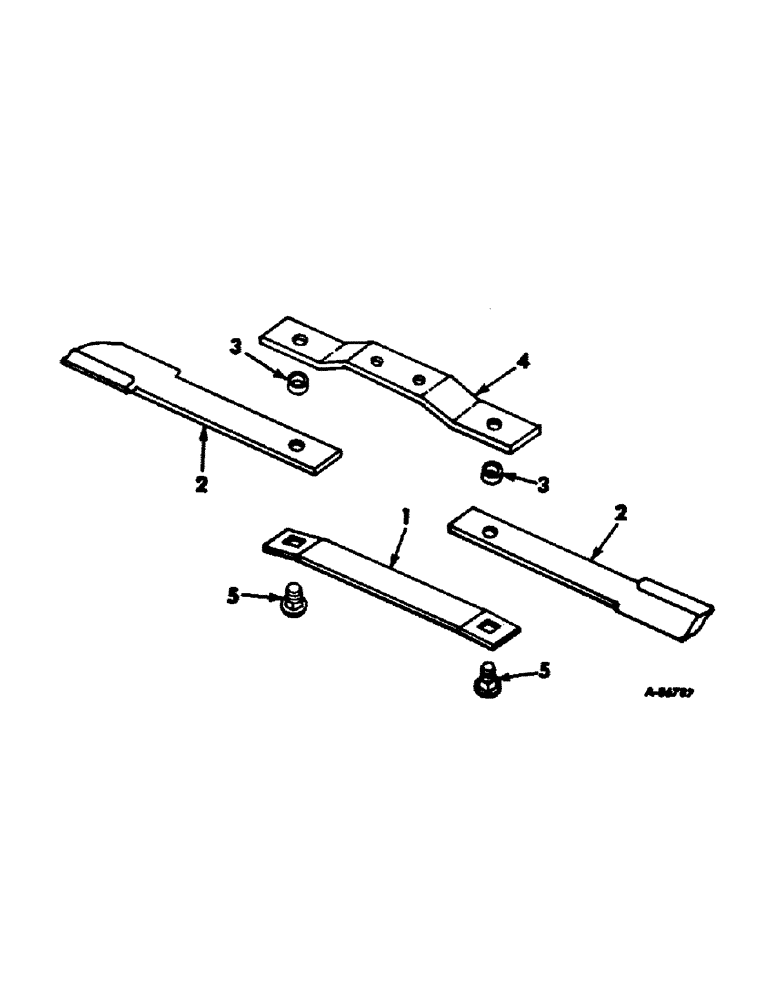

Запчасти Case IH 211 (E-07) - ROTOR BAR AND BLADES, 1966 AND SINCE

1

483601R1

STRAP, tie

1шт.

2

546744R91

BLADE

W/BUSHING, 1/2 str plain pair

1шт.

2

546743R91

BLADE

W/BUSHING, 1/2 suction plain pair

1шт.

2

484943R91

PACKAGE

BLADE W/BUSHING, 1/2 str coated pair

1шт.

2

484942R91

BLADE

W/BUSHING, 1/2 suction coated pair

1шт.

3

484929R1

BUSHING

blade, for 1/2

1шт.

4

483599R1

BAR, rotor

1шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 type 4 hex-hd cap

2шт.

19647R1

LOCK NUT,5/8"-11, GC

NUT, 5/8-11 C-Z nylon insert

2шт.

5

483600R1

BOLT,Sq Nk, 7/8" - 9 x 2.75", Gr 4

7/8-9 x 2-3/4 sq-nk crg, use w/3/8 in. blades

2шт.

5

489124R1

BOLT

7/8-9 x 2-3/4 type 4 sq-nk crg, use w/1/2 in. blades

2шт.

19749R1

LOCK NUT,7/8"-9, GB

NUT, 7/8-9 nylon insert

2шт.
