(301) - FRONT WHEEL

Запчасти Case IH BRX172 (301) - FRONT WHEEL

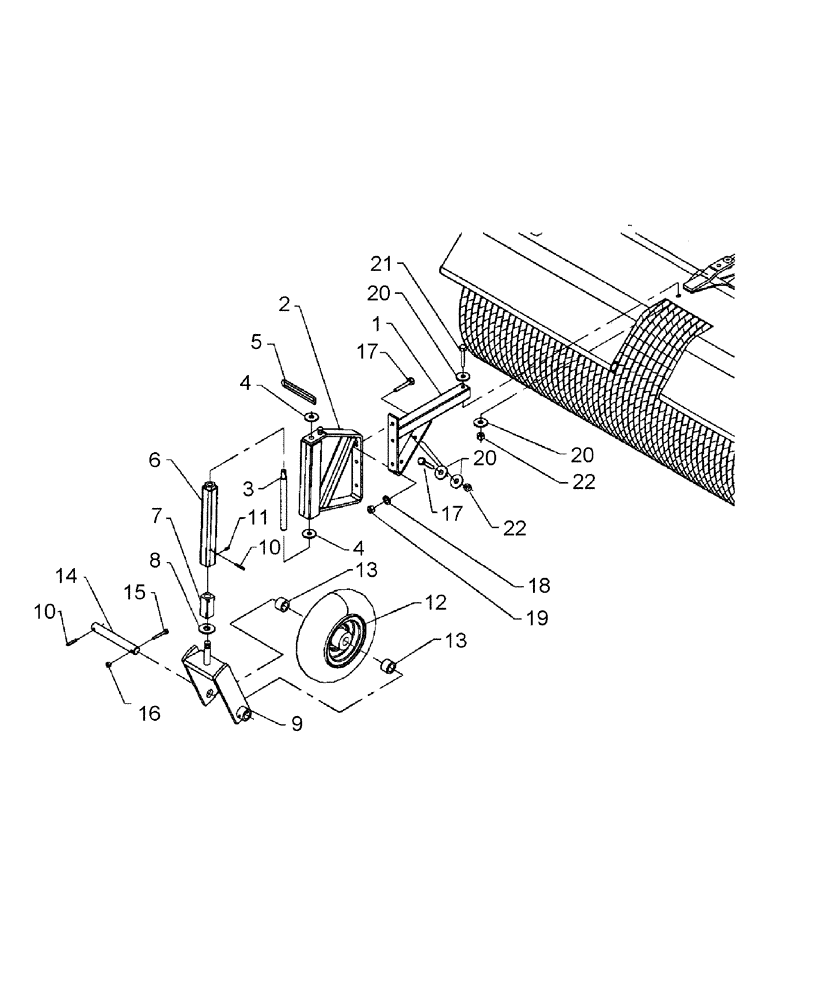

Схема запчастей Case IH BRX172 - (301) - FRONT WHEEL
13
5
7
1
4
15
14
11
3
20
10
20
22
2
6
10
13
17
4
8
12
21
16
9
22
20
17
18
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

CSE661755

SUPPORT

Front Wheel

1шт.

2

CSE665597

JACK

Adjustable

1шт.

3

BER665614

THREADED ROD

Jack

1шт.

4

PL

PROCURE LOCALLY

Washer, Flat, 9/16"

2шт.

5

BER660955

HANDLE

1шт.

6

BER665601

HOUSING

Jack

1шт.

7

BER660948

BUSHING

1шт.

8

PL

PROCURE LOCALLY

Washer, Flat, 13/16"

1шт.

9

CSE665600

BRACKET

1шт.

10

PL

PROCURE LOCALLY

Pin, Spring, 1/4" x 1 -1/2"

2шт.

11

BER654106

FITTING

Grease, 1/4"

1шт.

12

BER660658

WHEEL ASSY

& Tire

1шт.

13

BER661119

SHIM

2шт.

14

BER660484

PIN

1шт.

15

PL

PROCURE LOCALLY

Bolt, Hex, 1/4" x 2"

1шт.

16

PL

PROCURE LOCALLY

Nut, Lock, Nylon Insert, 1/4"

1шт.

17

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 1"

5шт.

18

PL

PROCURE LOCALLY

Washer, Lock, 3/8"

3шт.

19

PL

PROCURE LOCALLY

Nut, Hex, 3/8"

3шт.

20

PL

PROCURE LOCALLY

Washer, Flat, 7/16"

6шт.

21

PL

PROCURE LOCALLY

Bolt, Hex, 3/8" x 2 -1/4"

1шт.

22

BER1100003

NUT

Stover, 3/8"

3шт.
