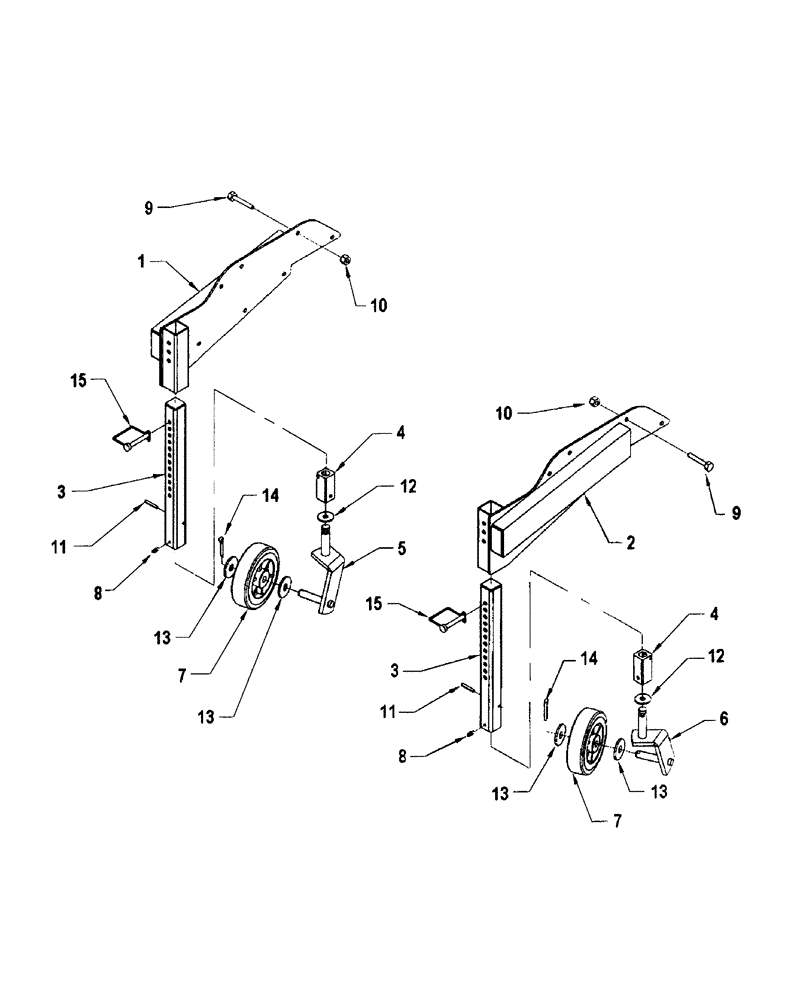

Запчасти Case IH BRX160 (601) - 2" X 6" SIDE CASTER WHEEL KIT - 717231016

1

BER665517

BRACKET

RH

1шт.

2

BER665516

BRACKET

LH

1шт.

3

BER665518

TUBE

2шт.

4

BER660948

BUSHING

2шт.

5

BER661298

BRACKET

Wheel, RH

1шт.

5

BER669838

BRACKET

Wheel, LH & RH, Start Serial: YCWR00001

1шт.

6

BER661297

BRACKET

Wheel, LH

1шт.

6

BER669838

BRACKET

Wheel, LH & RH, Start Serial: YCWR00001

1шт.

7

BER661306

WHEEL ASSY

6"

2шт.

8

BER654106

FITTING

Grease, 1/4"

2шт.

9

BER0200066

BOLT

Flange 3/8" x 3/4"

14шт.

10

PL

PROCURE LOCALLY

Nut, Hex 3/8"

14шт.

11

BER1600016

PIN

Spring 1/4" x 1 -1/2"

2шт.

12

PL

PROCURE LOCALLY

Washer, Flat, 13/16"

2шт.

13

PL

PROCURE LOCALLY

Washer, Flat, 11/16"

4шт.

14

BER1500002

PIN

Cotter, 1/4" x 1 -1/2"

2шт.

15

BER1900008

PIN

Lock, Square Wire 3/8" x 2 -1/2"

2шт.

16

BER0100102

BOLT

Hex Bolt, 5/8" NC x 3-3/4" L, PTD (Holds Ref 7 To BER669838), Start Serial: YCWR00001

1шт.

17

BER1000012

LOCK NUT

Hex Nut, 5/8", Nylon Insert, (Fastens Ref 7 To BER669838), Start Serial: YCWR00001

1шт.
