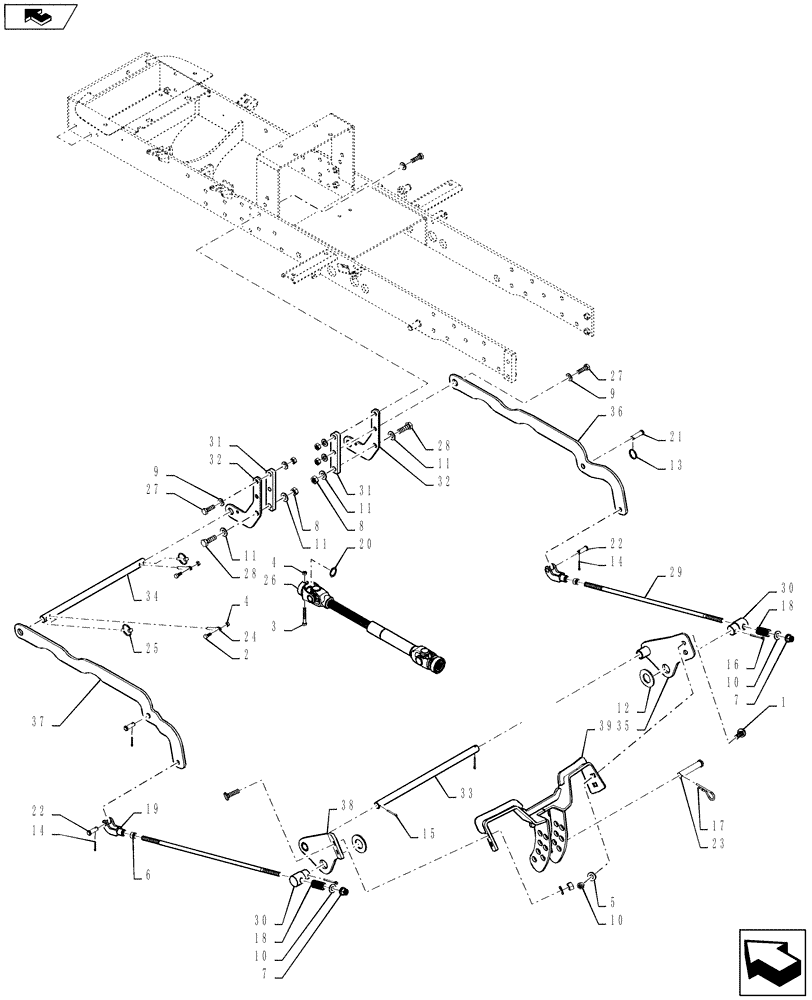

Запчасти Case IH MWX160S (58.502.05[01]) - MOUNTING LINKAGE, 60" (58) - ATTACHMENTS/HEADERS

1

PL

PROCURE LOCALLY

BOLT, CARRIAGE 50 x 125

4шт.

2

PL

PROCURE LOCALLY

Cap Screw, 5/16-18 x .75, GR5

2шт.

3

PL

PROCURE LOCALLY

Cap Screw, 5/16 x 2.50, GR5

1шт.

4

PL

PROCURE LOCALLY

Nut, 5/16"-18, GR5

3шт.

5

PL

PROCURE LOCALLY

Nut, 1/2" - 13, GR5

4шт.

6

PL

PROCURE LOCALLY

Nut, 1/2"-20, GR5

2шт.

7

PL

PROCURE LOCALLY

Nut, Flange, 1/2"-20

2шт.

8

PL

PROCURE LOCALLY

Nut, M14-2.0, GR10

4шт.

9

PL

PROCURE LOCALLY

Washer, Flat, 1/2", Hard SAE

6шт.

10

PL

PROCURE LOCALLY

Washer, Flat, 1/2" SAE

6шт.

11

PL

PROCURE LOCALLY

Washer, Flat 9/16 SAE Hard

4шт.

12

AME008206B

WASHER,1-1/4" ID

125, SAE

2шт.

13

AME008547B

RING

Locking

2шт.

14

AME008560B

HAIR PIN COTTER,1/8" OD x 1" L

1/8" x 1"

1шт.

15

AME008574B

HAIR PIN COTTER,1-1/4" L x 5/32" Thk

5/32" x 1-1/4"

2шт.

16

PL

PROCURE LOCALLY

Hair Pin Cotter, 3-16 x 2

2шт.

17

PL

PROCURE LOCALLY

Pin, Hair Clip

1шт.

18

AME008679B

SPRING

Spring, Lift

2шт.

19

AME012540B

YOKE

Pivot

2шт.

20

AME013237B

SNAP RING

1шт.

21

AME013455B

CLEVIS PIN,1/2" OD x 1-3/4" L

1/2 X 1-3/4

2шт.

22

AME013463B

CLEVIS PIN,5/8" OD x 1-9/16" L

2шт.

23

AME013467B

CLEVIS PIN,3/4" OD x 3-3/4" L

3/4 X 4"

1шт.

24

AME013473B

PIN

2шт.

25

AME013491B

LINCH PIN,1/4" OD x 1-1/4" L

1/4" Dia x 1.25" Shaft

2шт.

26

AME015547B

DRIVE SHAFT

PTO Assy

1шт.

27

PL

PROCURE LOCALLY

Cap Screw, M12-1.75 x 45 GR10.9

4шт.

28

PL

PROCURE LOCALLY

Cap Screw, M14-2.0 x 45 G10.9

2шт.

29

AME066098B

ROD

Tension

2шт.

30

AME066104B

PIN

Deck Lift

2шт.

31

AME451318B

PLATE

Spacer

2шт.

32

AME451319B

PLATE

Front Hanger

2шт.

33

AME451321B

SHAFT

Lower Link Pivot

1шт.

34

AME451323B

SHAFT

Lift

1шт.

35

AME451715B

BRACKET

RH Lift

1шт.

36

AME451673B

PLATE

RH Link

1шт.

37

AME451674B

PLATE

LH Link

1шт.

38

AME451720B

BRACKET

LH Lift

1шт.

39

AME451725B

MOUNT

Rear

1шт.
