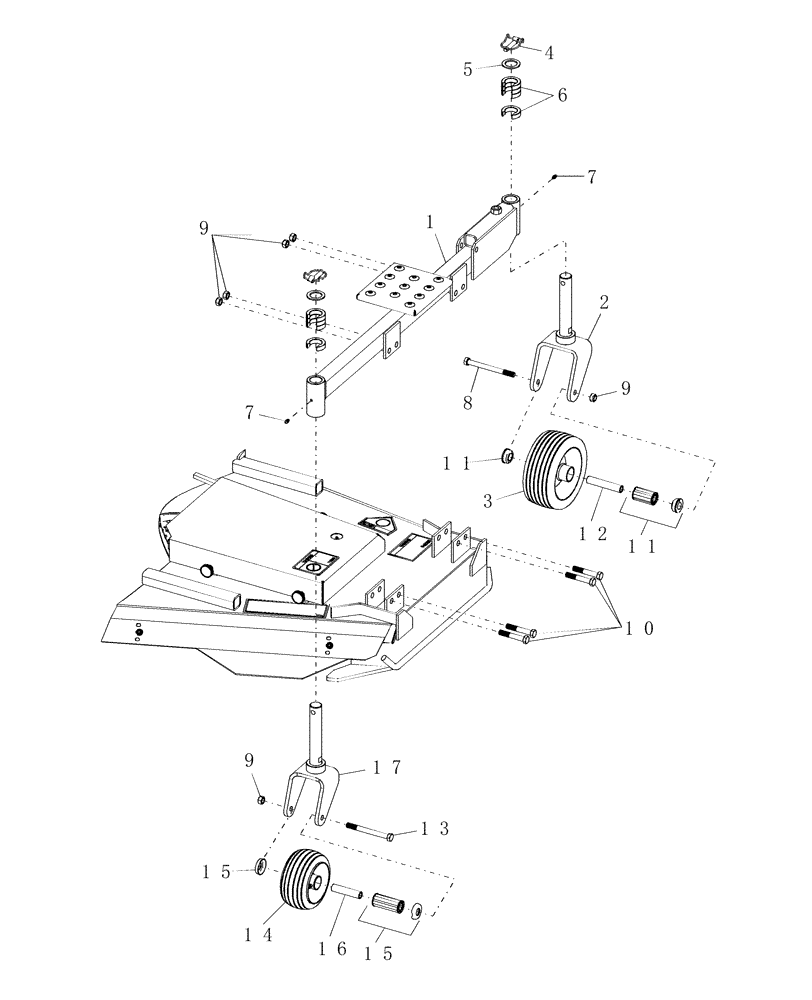

Запчасти Case IH MW84R (005.01) - GAUGE WHEELS

1

CSE163283

STRUT

R.H.

1шт.

1

CSE163155

STRUT

L.H.

1шт.

2

CSE163265

AXLE SHAFT

Fork, Gauge Wheel, Front

2шт.

3

AUB163251

WHEEL ASSY

Wheel, with Bearing

2шт.

4

AUB161397

LOCK PIN

Pin, 3/8" Safety Lock

4шт.

5

AUB964514

WASHER

Bushing, 1-1/4 I.D. x 1-7/16" O.D.

4шт.

6

AUB161681

SPACER

Height of Cut

16шт.

7

219-10

LUBE NIPPLE,1/4" - 28 NPTF

Fitting, Lube, Straight, 1/4"

4шт.

8

PL

PROCURE LOCALLY

Bolt, 1/2-13x5-1/2"

2шт.

9

AUB964000

NUT

Locknut, 1/2"

12шт.

10

AUB960120

BOLT

1/2-13x3"

8шт.

11

AUB163545

BEARING ASSY

Bearing, Front Wheels

2шт.

12

AUB163273

SPACER

Bearing

2шт.

13

AUB960128

BOLT

1/2-13x5"

2шт.

14

AUB163773

WHEEL

Includes: Ref. 15

2шт.

15

AUB164075

BEARING ASSY

Bearing, Rear Wheels

2шт.

16

AUB163295

COLLAR

Spacer, Bearing

2шт.

17

CSE163269

AXLE SHAFT

Fork, Gauge Wheel, Rear

2шт.
