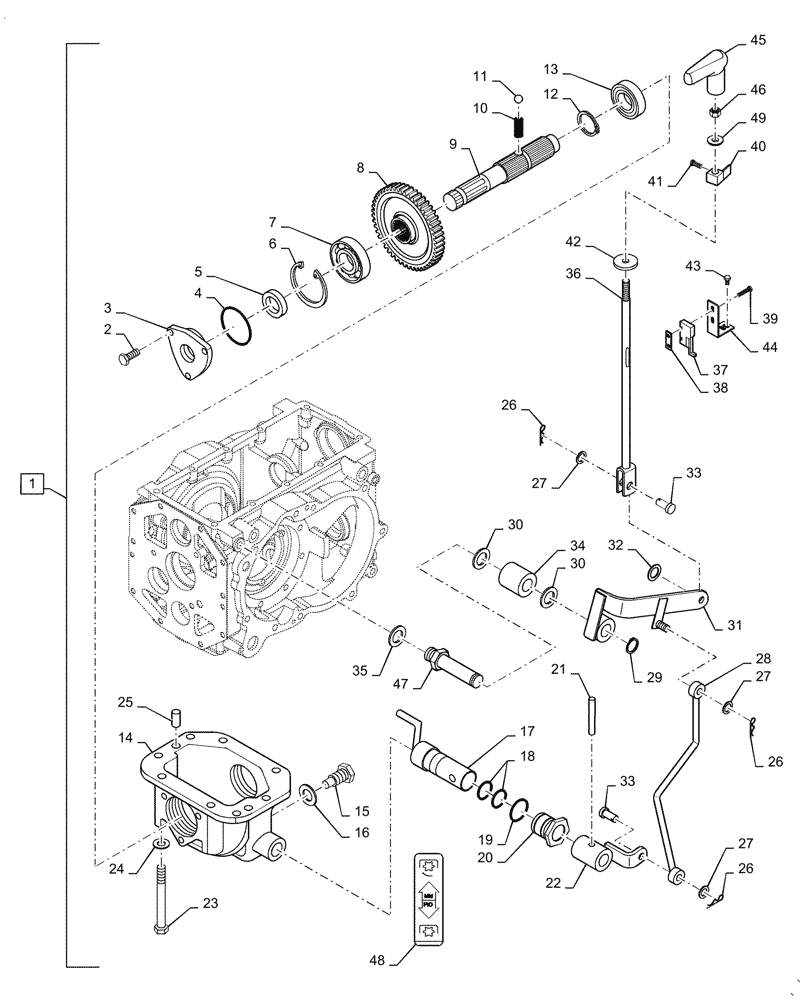

Запчасти Case IH MW272S (88.100.31[07]) - DIA KIT, PTO DRIVE (88) - ACCESSORIES

1

MT20131515

PTO

PTO Assy, Incl 2 - 49

1шт.

2

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

3

MT40009842

COVER

PTO Shaft

1шт.

4

MT40029219

O-RING,5.7mm Thk x 51.6mm OD

PTO Shaft Cover

1шт.

5

MT40012884

OIL SEAL

PTO Shaft

1шт.

6

MT40029299

SNAP RING,M62

1шт.

7

MT40012715

BALL BEARING

PTO Gear

1шт.

8

MT40009068

GEAR

PTO Driven

1шт.

9

MT40009095

SHAFT,30mm OD x 206mm L

PTO Driven

1шт.

10

MT40011943

SPRING,7.2mm OD x 22mm L

1шт.

11

MT40010339

BALL

Shift Fork

1шт.

12

MT40029273

SNAP RING,M30

1шт.

13

MT40012703

BALL BEARING

PTO Shaft

1шт.

14

MT40199270

CASE

Mid PTO

1шт.

15

MT40229917

PLUG

Magnet

1шт.

16

MT40229916

SEAL,20mm ID x 26mm OD x 1.5mm L

Plug

1шт.

17

MT40012234

LEVER

Mid PTO

1шт.

18

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

2шт.

19

MT40029247

O-RING,2mm Thk x 27.50mm OD

1шт.

20

MT40009503

ADAPTER

Lever

1шт.

21

MT40270938

PIN,M6 x 35mm

1шт.

22

MT40012235

ARM

Mid PTO

1шт.

23

MT40029484

BOLT,Hex, M10 x 1.25 x 100mm

2шт.

24

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

Spring

2шт.

25

MT40029102

PIN,M10 x 20mm L

2шт.

26

MT40029121

PIN,25mm OD x 20mm L

3шт.

27

MT40028158

WASHER,10.50mm ID x 18mm OD x 2mm Thk

Plain

3шт.

28

MT40011450

ROD

Mid PTO

1шт.

29

MT40029265

SNAP RING,M20

1шт.

30

MT40028163

WASHER,21mm ID x 34mm OD x 3mm Thk

Plain

2шт.

31

MT40278650

ARM

Mid PTO

1шт.

32

MT40012095

PLATE,12mm ID x 20mm OD x2mm Thk

Aux Lever

1шт.

33

MT40029108

HEADED PIN,M10 x 20mm

2шт.

34

MT40010022

SPACER,20mm ID x 35mm OD x 39L

1шт.

35

MT40029555

WASHER,16.20mm ID x 28mm OD x 4mm Thk

Spring

1шт.

36

MT40240207

LEVER

Mid PTO

1шт.

37

MT40007111

MFD SWITCH

Micro

1шт.

38

MT40012510

PLATE

Switch

1шт.

39

MT40028709

SCREW,M4 x 0.7 x 30mm

2шт.

40

MT40011843

BRACKET,2.5mm Thk

Contact Switch

1шт.

41

MT40028580

SCREW,M8 x 1.25 x 12mm

Set Skt

1шт.

42

MT40007467

COVER,2.5mm Thk

1шт.

43

MT40028970

BOLT,Hex, M8 x 1.25 x 16mm

2шт.

44

MT40011844

BRACKET

Mid PTO Switch

1шт.

45

MT40239362

KNOB

Mid PTO

1шт.

46

MT40029040

NUT,Hex, M8 x 1.25

1шт.

47

MT40278817

SHAFT

Hand Lever

1шт.

48

MT40008812

DECAL

Mid PTO Lever

1шт.

49

MT40007357

GROMMET,21mm OD x 23mm Thk

Wiper Front

1шт.
