(58.910.AC[16]) - VAR - 717966226, 717966296 - MOWER DECK, PTO GEARBOX MOUNT

Запчасти Case IH MW272S (58.910.AC[16]) - VAR - 717966226, 717966296 - MOWER DECK, PTO GEARBOX MOUNT (58) - ATTACHMENTS/HEADERS

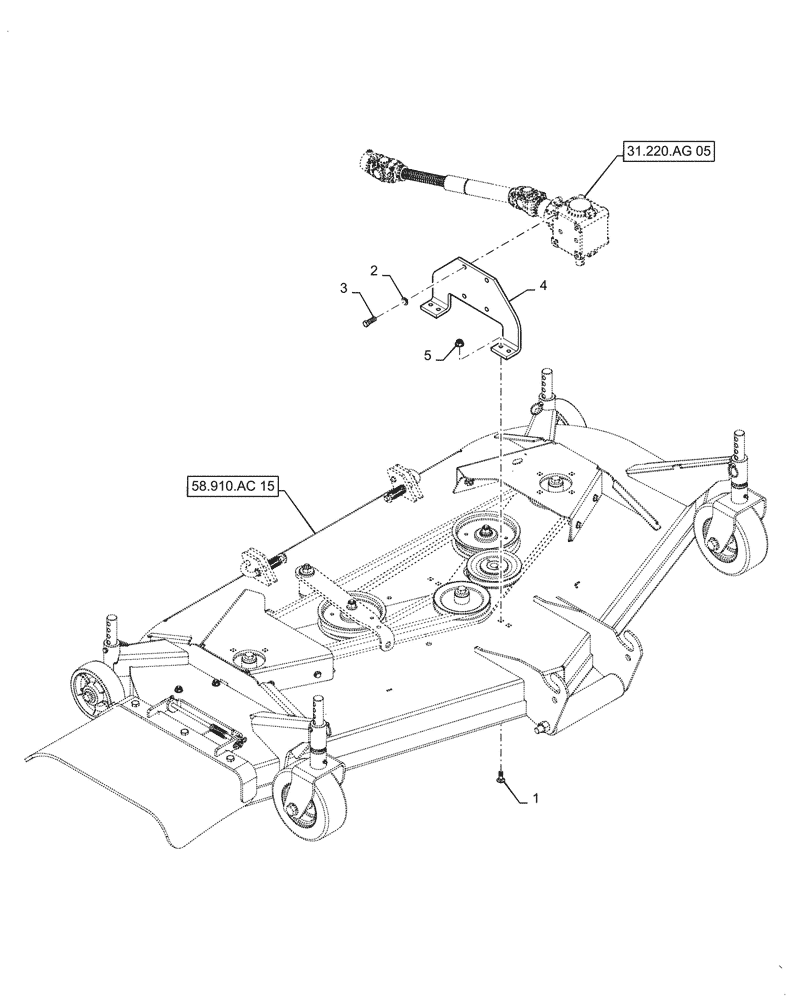

Схема запчастей Case IH MW272S - (58.910.AC[16]) - VAR - 717966226, 717966296 - MOWER DECK, PTO GEARBOX MOUNT (58) - ATTACHMENTS/HEADERS
31.220.ag 05
4
1
2
5
3
58.910.ac 15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME006608B

CARRIAGE BOLT,3/8" - 16 x 1" L

4шт.

2

AME008152B

WASHER,5/16" ID

4шт.

3

AME006786B

BOLT,5/16" - 18 x 1, Gr 5

4шт.

4

AME453593C

MOUNTING PLATE

Gearbox

1шт.

5

AME007457B

LOCK NUT,3/8" - 16

Nylon

4шт.
