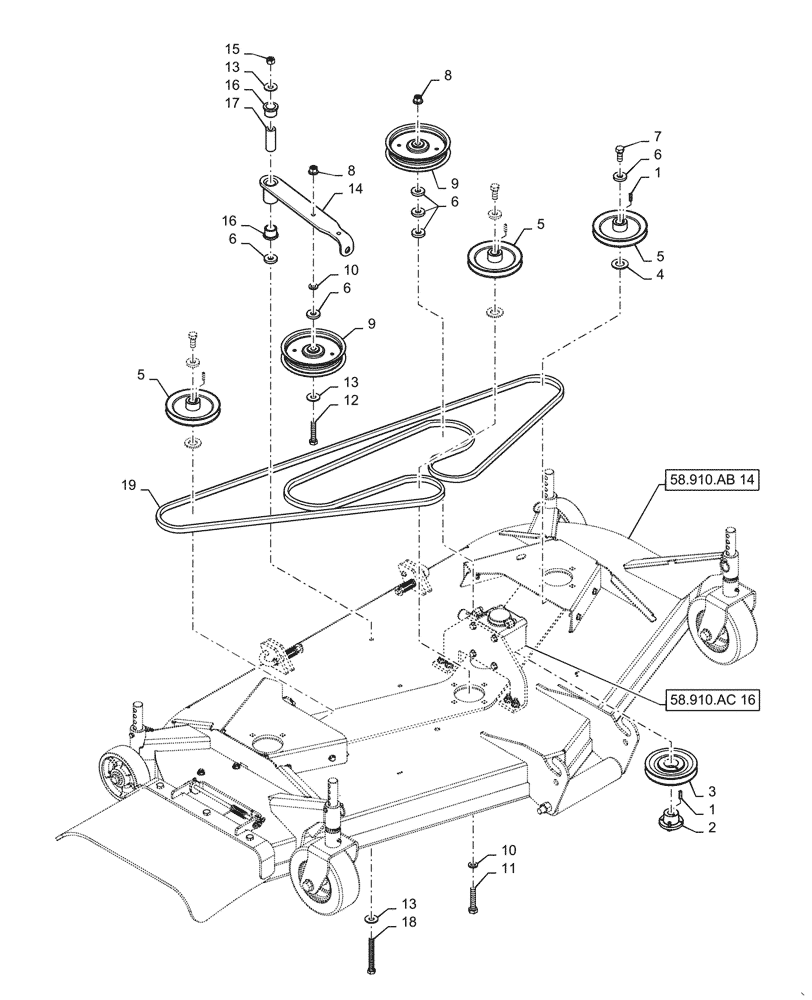

Запчасти Case IH MW272S (58.910.AC[15]) - VAR - 717966226, 717966296 - MOWER DECK PULLEY DRIVE (58) - ATTACHMENTS/HEADERS

1

AME008921B

SQUARE KEY,3/16" x 3/16" x 7/8" L

4шт.

2

AME012719B

BUSHING

Mower Gearbox

1шт.

3

AME012741B

PULLEY

Gearbox

1шт.

4

AME008197B

WASHER,15/16" ID x 1-3/4" OD x 1/8" Thk

3шт.

5

AME012760B

PULLEY

Spindle

3шт.

6

AME451709B

PLATE

Pulley Spacer

8шт.

7

AME007017B

BOLT,1/2" - 20 x 1-1/4" L

3шт.

8

AME007492B

NUT,M12 x 1.75, Gr 10

Lock

2шт.

9

AME012295B

PULLEY

Idler, 6" OD

2шт.

10

AME008173B

WASHER,1/2" ID

2шт.

11

AME007349B

BOLT,M12 x 1.75 x 70mm L, Gr 8.8

1шт.

12

AME007356B

BOLT,M12 x 1.75 x 60mm L, Gr 10.9

1шт.

13

AME008171B

WASHER,1/2" ID

3шт.

14

AME451165C

BELT TENSIONER

Idler Pulley

1шт.

15

AME007508B

NUT,1/2" - 13, Gr 5

Lock

1шт.

16

AME011969B

BUSHING

Bearing

2шт.

17

AME066079B

BUSHING

Belt Tensioner

1шт.

18

AME007073B

BOLT,1/2" - 13 x 4" L, Gr 5

1шт.

19

AME012768B

BELT,16mm OD x 176mm L x 1 Rib

Drive, Mower

1шт.
