(58.910.AB[14]) - VAR - 717966226, 717966296 - MOWER DECK

Запчасти Case IH MW272S (58.910.AB[14]) - VAR - 717966226, 717966296 - MOWER DECK (58) - ATTACHMENTS/HEADERS

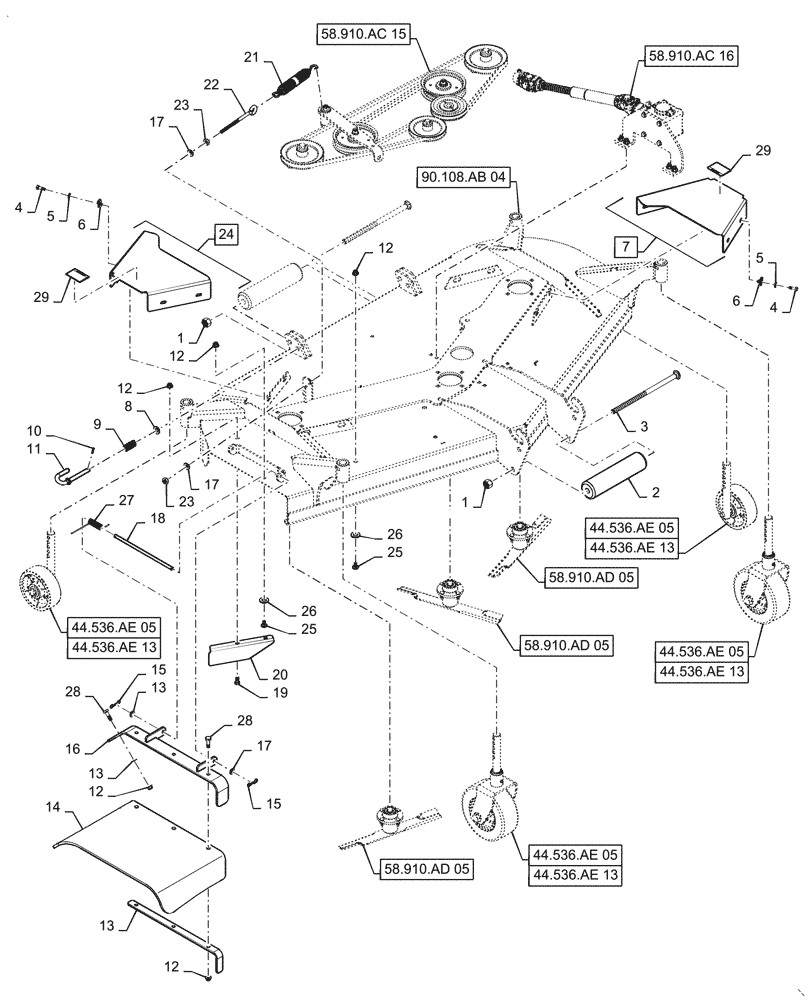

Схема запчастей Case IH MW272S - (58.910.AB[14]) - VAR - 717966226, 717966296 - MOWER DECK (58) - ATTACHMENTS/HEADERS
58.910.ad 05
14
19
13
15
13
29
1
27
5
7
12
12
26
13
23
22
12
6
26
3
25
20
28
6
1
23
16
4
5
29
11
25
2
8
24
17
10
21
28
17
17
4
12
15
9
12
18
44.536.ae 13
44.536.ae 13
44.536.ae 13
44.536.ae 13
58.910.ac 16
90.108.ab 04
44.536.ae 05
44.536.ae 05
44.536.ae 05
44.536.ae 05
58.910.ac 15
58.910.ad 05
58.910.ad 05
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

AME007546B

NUT,5/8" - 11

Lock

2шт.

2

AME050004B

ROLLER,3" OD x 10" L

2шт.

3

AME007218B

BOLT,5/8" - 11 x 11" L, Gr 2

2шт.

4

AME006792B

BOLT,5/16" - 18 x 1" L, Gr 5

8шт.

5

AME008152B

WASHER,5/16" ID

8шт.

6

AME007432B

NUT,5/16" - 18

Spring

8шт.

7

AME453155C

GUARD

LH, Belt, Incl 29

1шт.

8

AME008171B

WASHER,1/2" ID

2шт.

9

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

10

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

2шт.

11

AME066073B

LATCH

J

2шт.

12

AME007457B

LOCK NUT,3/8" - 16

Nylon

8шт.

13

AME451186B

PLATE

Chute Retaining

1шт.

14

AME050005B

CHUTE

Discharge, Rubber

1шт.

15

AME008548B

CLIP

Bow - Tie Pin

2шт.

16

AME451760B

CHUTE

Mount

1шт.

17

AME008158B

WASHER,3/8" ID

5шт.

18

AME451363B

ROD

Chute, Pivot

1шт.

19

AME006829B

BOLT,3/8" - 16 x 3/4" L

2шт.

20

AME451188B

PLATE

Chute Baffle

1шт.

21

AME008751B

SPRING

Swivel End

1шт.

22

AME012541B

EYEBOLT

Spring Tension

1шт.

23

AME007451B

NUT,3/8" - 16

2шт.

24

AME453150C

GUARD

RH, Belt, Incl 29

1шт.

25

AME006606B

CARRIAGE BOLT,3/8" - 16 x 3/4" L

2шт.

26

AME008176B

WASHER,9/16" ID

2шт.

27

AME008820B

SPRING

Torsion

1шт.

28

AME006855B

BOLT,3/8" - 16 x 1-1/4" L

4шт.

29

AME020356B

WARNING DECAL

2шт.
