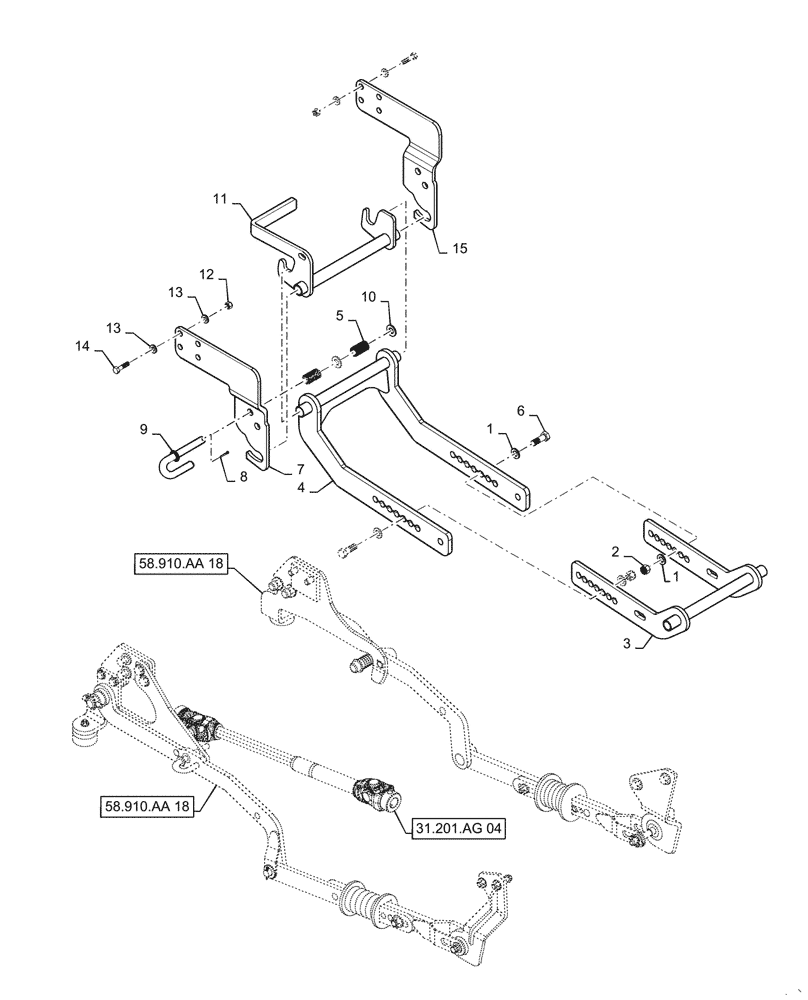

Запчасти Case IH MW272S (58.910.AA[17]) - VAR - 717966286, 717966296 - MOWER DECK MOUNTING PARTS, 72", CL3, T4, REPWR (58) - ATTACHMENTS/HEADERS

1

AME008176B

WASHER,9/16" ID

8шт.

2

AME007519B

NUT,M14 x 2mm Thk, Gr 10

4шт.

3

AME453095B

BRACKET

Lower Deck, Mounting

1шт.

4

AME453610B

MOUNT

Lower, Link

1шт.

5

AME008675B

COMPRESSION SPRING

J - Latch

2шт.

6

AME018725B

BOLT,M14 x 2 x 40mm L, Gr 10.9

4шт.

7

AME452550B

PLATE

LH, Hook

1шт.

8

AME008554B

HAIR PIN COTTER,3/32" OD x 3/4" L

1шт.

9

AME066073B

LATCH

J

1шт.

10

AME008173B

WASHER,1/2" ID

2шт.

11

AME453100B

LATCH

Mounting

1шт.

12

AME007473B

NUT,M10 x 1.5mm

8шт.

13

AME008162B

WASHER,7/16" ID

16шт.

14

AME007375B

BOLT,M10 x 1.5 x 40mm L

8шт.

15

AME452545B

PLATE

RH, Hook

1шт.
